Register thermostatic heads to controller
in rooms without a thermostat
5
1
4
2
6 7
5 s
3 s
3 s
3 s
4
7
2
3
T-162
3
8
1
2.1
2.3
2.2

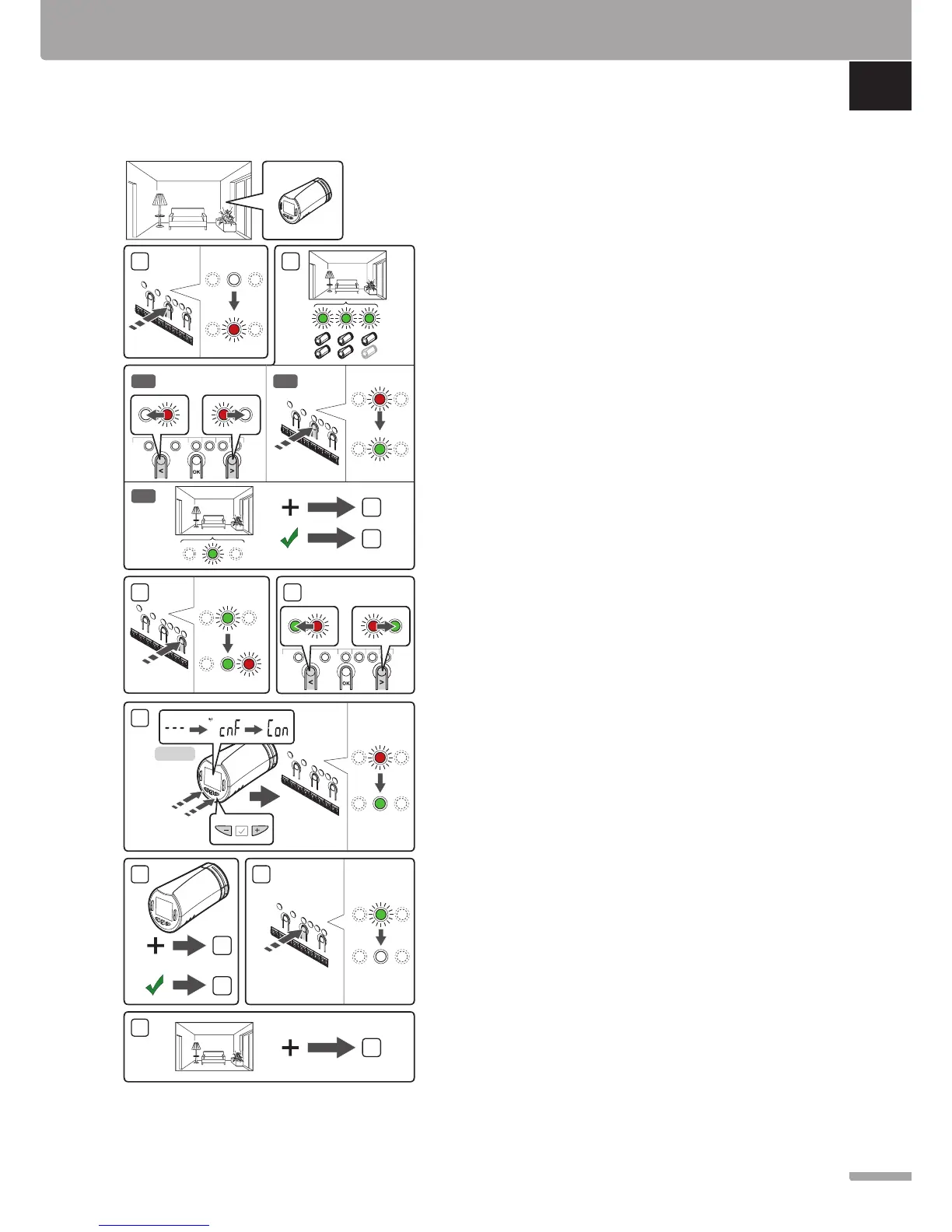

To register thermostatic heads in the controller:
1. Press and hold the OK button on the controller until
the LED for the first unregistered channel flashes
red. If all channels are registered to thermostats, the
LED flashes red and green.
2. Select a thermostat channel.
2.1 Use buttons < or > to move the pointer (LED
flashes red) to the first empty channel needed
for the room (no LED). The LED flashed red.
2.2 Press the OK button to select the channel for
registration. The LED for the selected channel
starts flashing green.
2.3 Repeat steps 2.1 and 2.2 until a sufficient number
of channels for the room are created.
3. Press and hold the > button on the controller until
the selected channels light up green and the next
in line starts flashing red. A channel without a
thermostat has been created.
4. Use buttons < or > to move the pointer (LED
flashes red) to the first channel of the room (green
LED). The LED flashed red and green.
If the first channel is full, move the pointer to the
next channel in line.
5. THERMOSTATIC HEAD T-162
5.1 Press and hold both - and + buttons on the
thermostatic head until the text CnF (configure)
and a communication icon is displayed.
The text Con is shown in the display, and the
selected channel LED in the controller turns
fixed green, when the registration is complete.
Note! If the text --- is shown in the
thermostatic head display the registration
failed. Repeat steps 2.1 through 2.2 and try
the next channel in line, in case two other
thermostatic heads already has been registered
to the current one.
6. Press one of the buttons on the controller and
repeat steps 4 through 5 until all thermostatic heads
are registered.
7. Press and hold the OK button on the controller
until the green LEDs turn off to end registration and
return to run mode.
8. Repeat steps 1 through 7 until the thermostatic
heads in all rooms are registered.
