Uponor WehoPuts Series User Manual

1.7 Equipment specifi cation
23
24
24
25
4
1
8
9
10
11
12
13
15
16
A
B
2
3
5
14
7
6
17

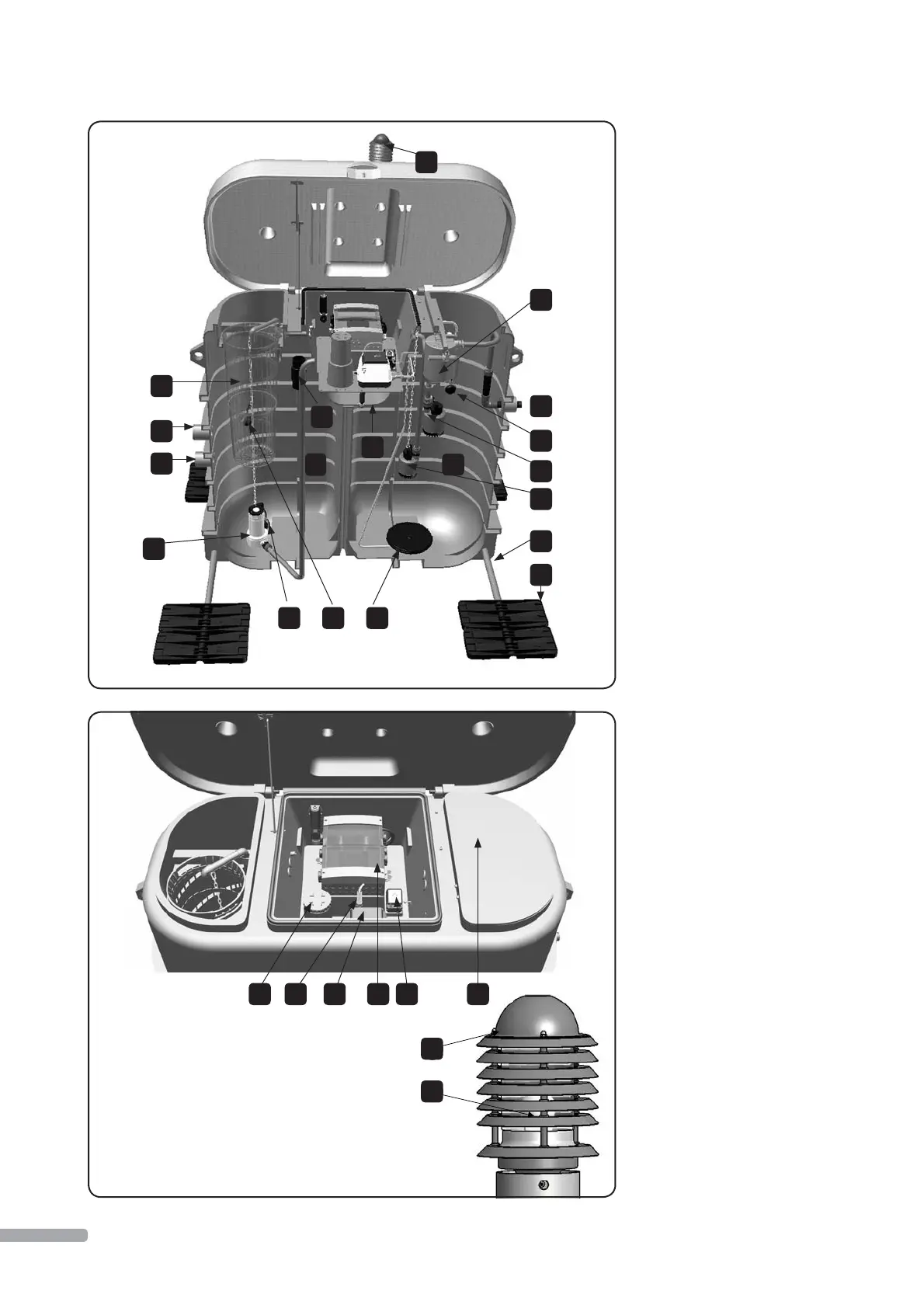

A - storage tank, B - process tank
1. Sludge basket
2. Inlet pipe connection
(Alternative 2)
3. Inlet pipe connection
(Alternative 1)
4. Transfer pump
5. Storage tank level switch
6. Overfl ow pipe connection
7. Machine room ventilation
8. Flushing tank
9. Chemical tank
10. Aerating plate
11. Sludge pump
12. Emptying pump
13. Process tank level switch
14. Outlet pipe connection
15. Anchor rod
16. Anchor plate
17. Overfl ow level switch
18. Chemical tank fi lling pipe
19. Chemical level switch
20. Compressor
21. Control unit
22. Chemical pump
23. Isolation lid
24. Signal lamp frame
25. Signal lamp
18 19 20 21 22 23
6
