12
ITEM SPECIFICATION
Height
Working height maximum 16.1 m [52 ft. 10 in.]
Platform height maximum 14.3 m [46 ft. 10 in.]
Platform step in height 0.48 m [19 in.]
Up and over height 7.8 m [25 ft. 8 in.]
Drivable height 14.3 m [46 ft. 10 in.]
Horizontal outreach 7.5 m [24 ft. 6 in.]
Turret rotation 360 deg. noncontinuous
Platform rotation 160 deg.
Tail swing None
Jib length 1.5 m [5 ft.]
Jib arc 140 deg.
Inside turning radius 0.9 m [3 ft.]
Outside turning radius 3,7 m [12 ft.]
Drive speed (lowered) 7.2 km/h [4.5 mph]
Drive speed (elevated) 1 km/h[.6 mph]
Gradability 40%
Platform Size 1.75 m x 1 m [69 in. x 39 in.]
Guardrail height 1.1 m [43
1
/2 in.]
Toeboards 152 mm [6 in.]
Maximum platform capacity 227 kg [500 lbs]
Maximum no. of occupants 2
Weight (Gas Model) 6558 kg [14,460 lbs.]
Weight (Diesel Model) 6649 kg [14,660 lbs.]
Overall height 2.2 m [7 ft. 4 in.]
Overall length 5.6 m [18 ft. 4 in.]
Overall width 2 m [6 ft. 7 in.]
Wheel base 2.2 m [7 ft. 2 in.]
Wheel track 1.7 m [5 ft. 5 in.]
Ground Clearance 330 mm [13 in.]
Power source (Gas Model) Ford VSG 413
Power source (Diesel Model) John Deere 3015DF
System voltage 12VDC
Maximum Hyd. Pressure 345 bar [5000 psi]
Controls Electric Proportional
Tires 14x17.5 10 ply lug tread
*
Specifications subject to change without notice.
Refer to Service Manual for complete parts and service information.
Specifications*

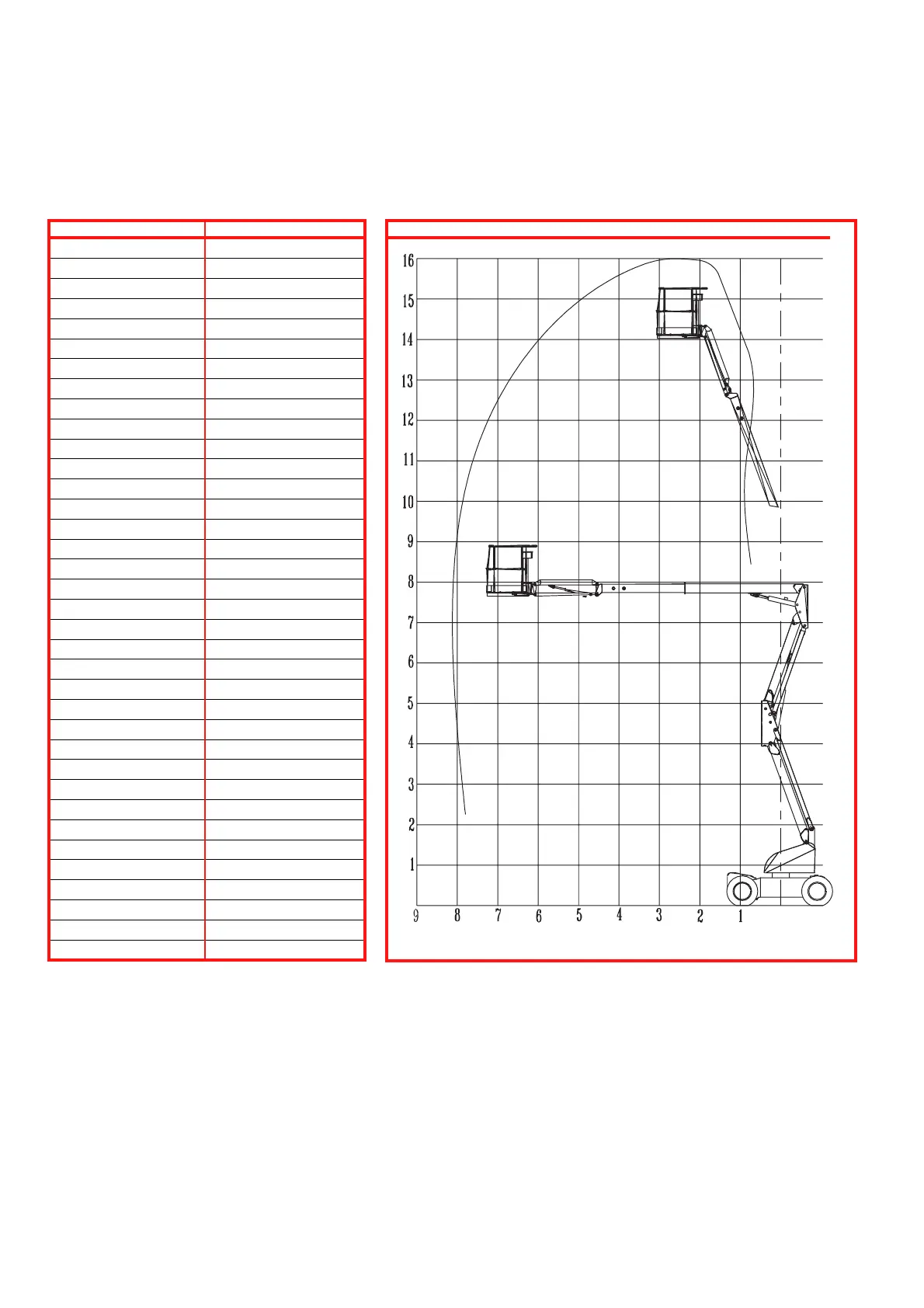

REACH ENVELOPE DIAGRAM
DIMENSIONS IN METERS
