Upright SL30SL - Page 41

Service and Repair
3-15

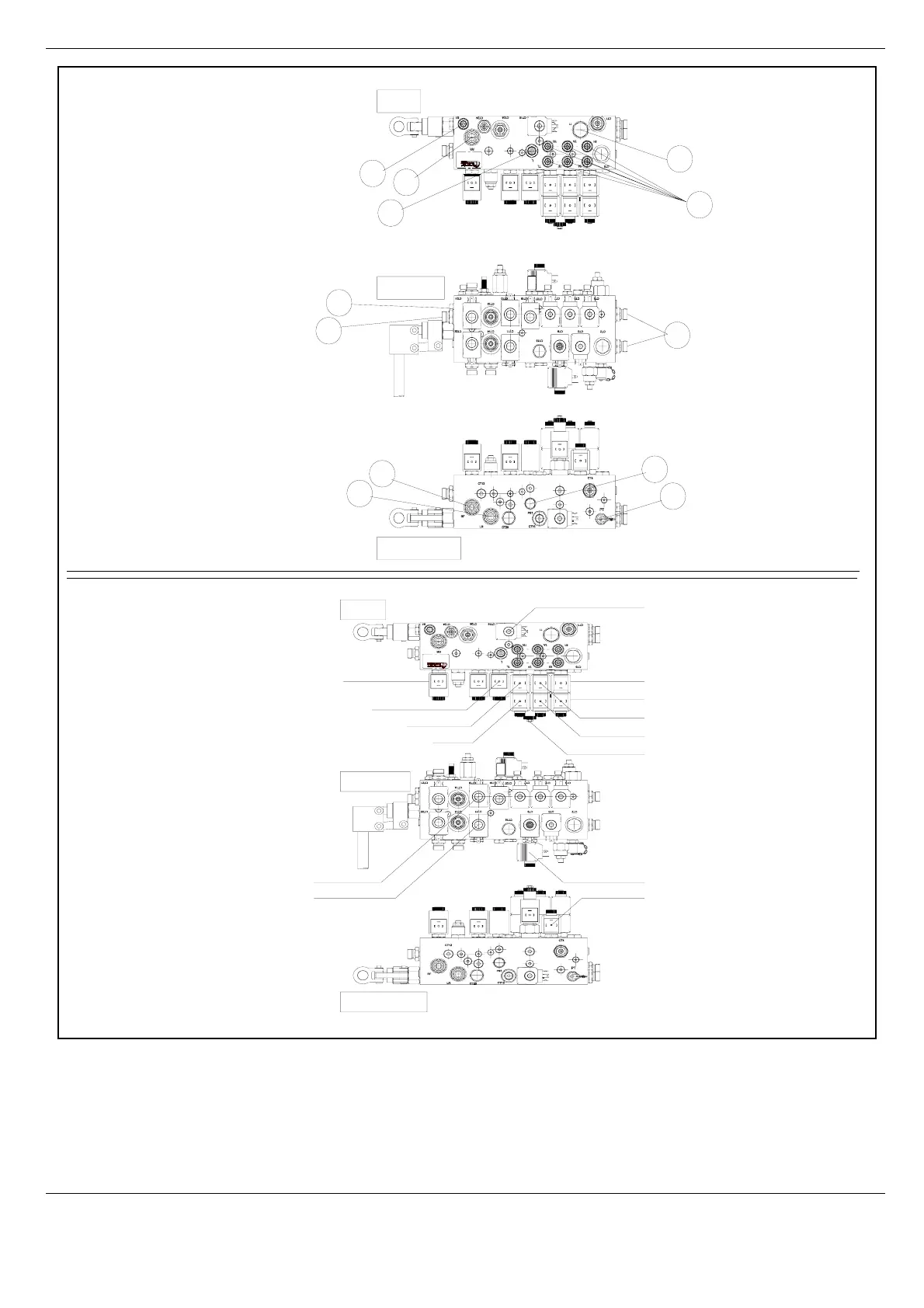

Figure 0-1: Hydraulic Manifold
TOP
FRONT
BOTTOM
LIFT COIL
STEER RIGHT
STEER LEFT
TILT AFT
TILT FORWARD
PROPORTIONAL
TILT LEFT
TILT RIGHT
CUSHION
HIGH SPEED
SERIES PARALLEL
DRIVE : FORWARD
DRIVE : REVERSE
LIFT DUMP
STEER DUMP
PART NUMBER
DATE CODE
CUSTOMER NUMBER
TOP
BOTTOM
FRONT
CUSTOMER NUMBER
PART NUMBER
DATE CODE
1
1
2
3
3
3
3
3
4
5
5
6
1. 1/4" BSP - C/W MALE/
MALE FITTINGS Used
on : S1, S2, B1, TA, TF,
TR & TL
2. 3/8" BSP - C/W MALE
BULKHEAD FITTING
Used on : L
3. 1/2" BSP - C/W MALE/
MALE FITTINGS Used
on : RR, RF, LF,LR, T & P
4. 1/4" BSP - C/W TEST
POINT Used on : PT
5. 1/4" BSP - C/W 1/4" BSP
PLUG Used on PS1 & B2
6. 1/2" BSP - C/W 1/2" BSP
PLUG Used on :T1
