Total Control
MRX-12
Owner’s Manual

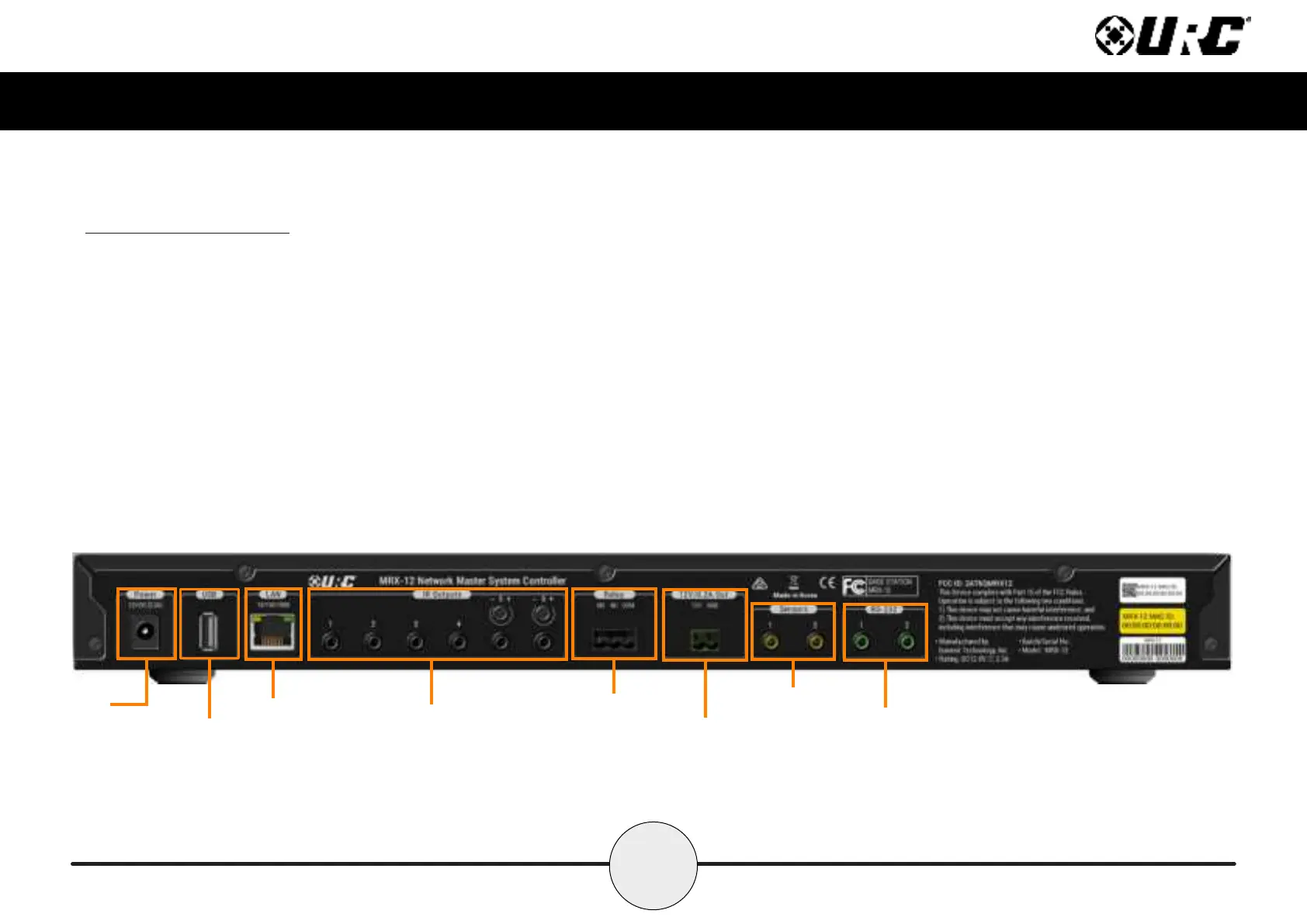

Rear Panel Description
Below are the rear panel ports:
1. Power: Attach the included power supply here.
2. USB: For future expansion.
3. LAN: RJ45 10/100/1000 Ethernet port.
4. IR Outputs: Six (6) standard 3.5mm IR emitter ports with two output
level adjustment screws for outputs ve (5) and six (6).
5. Relay: Single programmable relay at NO, NC, or COM.
6. 12V Out: Single programmable output. May be programmed to turn on,
off, or momentarily toggle.
7. Sensors: Two (2) sensor ports that allow the programming of state
dependent and triggered macros. Compatible with all URC sensors.
8. RS232: Two (2) RS-232 ports. Supports TX, RX, and GND connections for
wired two-way communication.
USB
Power
LAN
Relay
Sensors
RS-232
12V/0.2A Out
IR Outputs
