Urive CLASSIC - Socket Pin Arrangement

Urive Classic ... 14 ... User's Guide
06. Name of each part
(Socket pin arrangement)

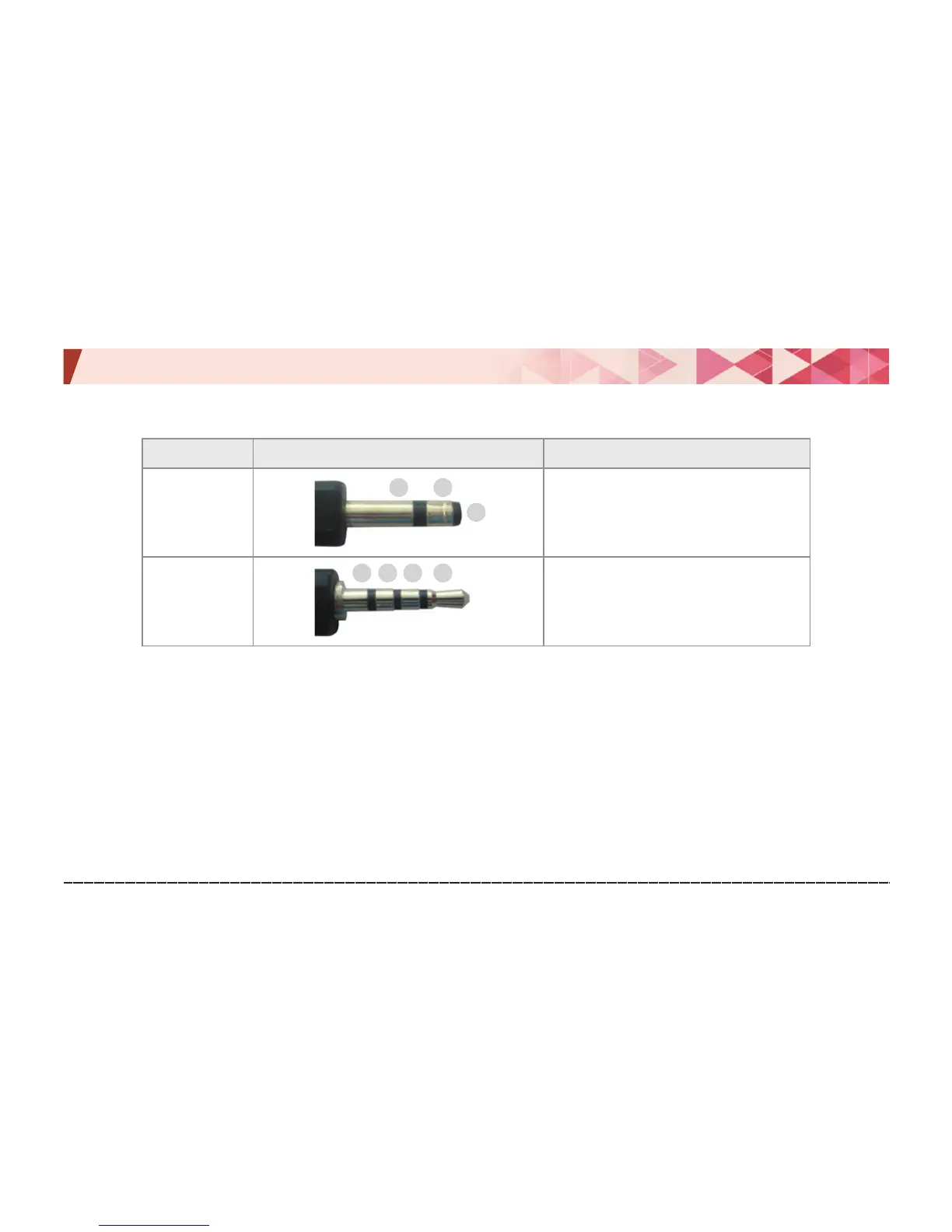

Sockets Images of sockets Pin arrangement
Power socket
(DC socket)
① GND ② ACC ③ BAT (B+)
GPS
socket(2.5 pi)
① VCC (3.6-6 V DC) ② Rx
③ GND ④ Tx (GPS Signal Output)
1
2
1234
3
◆
Socket pin arrangement
