urmet domus Audio Two - PARALLEL VIDEO DOOR PHONE CONNECTION

20
−−−−
sec.5
ONE-FAMILY AND TWO-FAMILY KITS
DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual
V5.006 The maximum distance between devices is 50 metres.
V5.011 Connect the wire for Self-insert function. In this case make a
jumper between terminals X2 and R3.

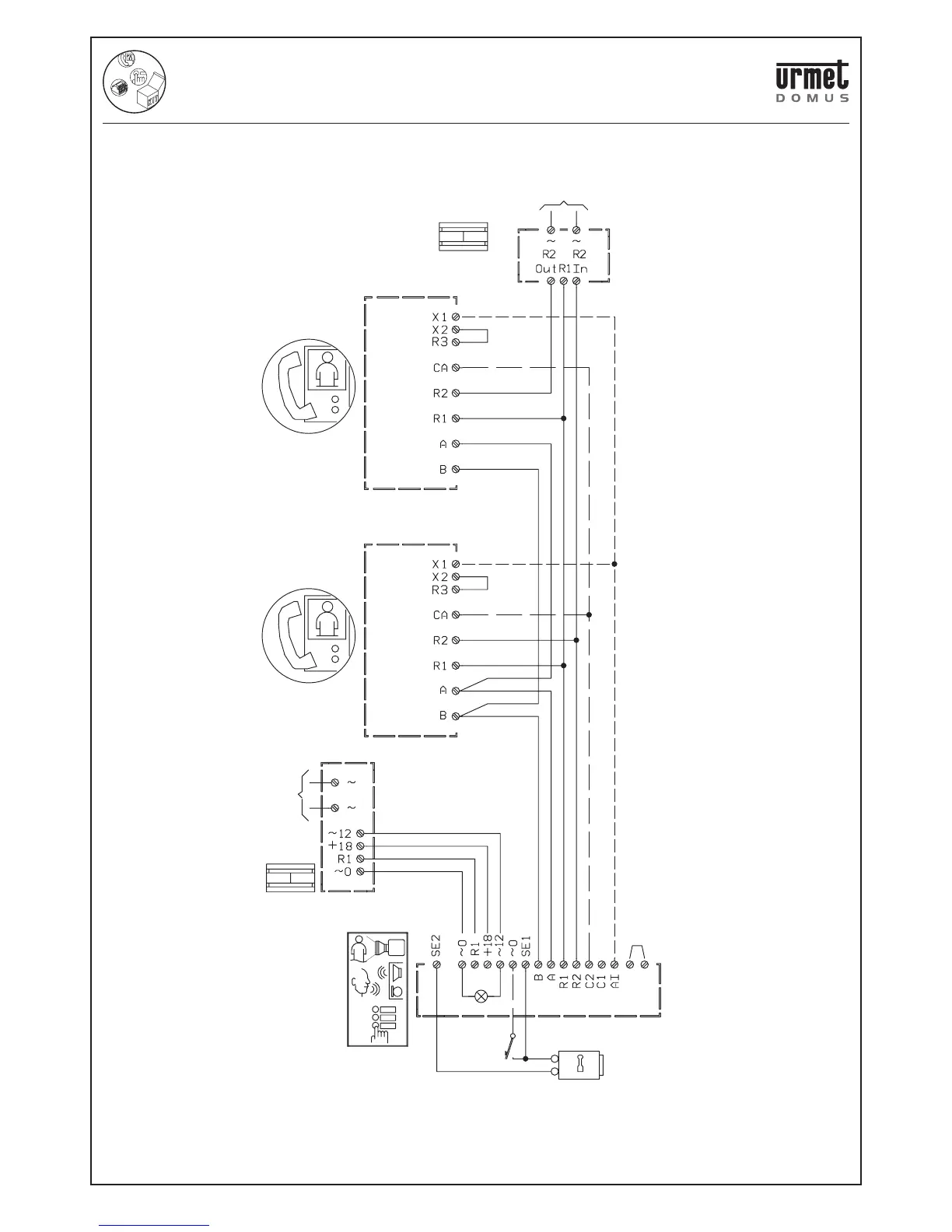

CONNECTION OF 2 ARTICO VIDEO DOOR PHONES IN PARALLEL
SV102-2135C
(V5.011)
(V5.011)
(V5.006)
TC
1
2
4F
VIDEO DOOR PHONE
Mod.Artico
VIDEO DOOR PHONE
Mod.Artico
POWER SUPPLY
POWER SUPPLY
Ref.
789/4
MAINS~
MAINS~
Lock
release
Electric lock
12Vca/15Va
VIDEO OUTDOOR
STATION
ONE AND TWO-FAMILY VIDEO KIT Mod. 956 WITH ARTICO VIDEO DOOR PHONE
