urmet domus Audio Two - TWO-FAMILY KIT CONNECTION

sec.5
−−−−
19
ONE-FAMILY AND TWO-FAMILY KITS
DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual
V5.006 The maximum distance between devices is 50 metres.
V5.011 Connect the wire for Self-insert function. In this case make a
jumper between terminals X2 and R3.

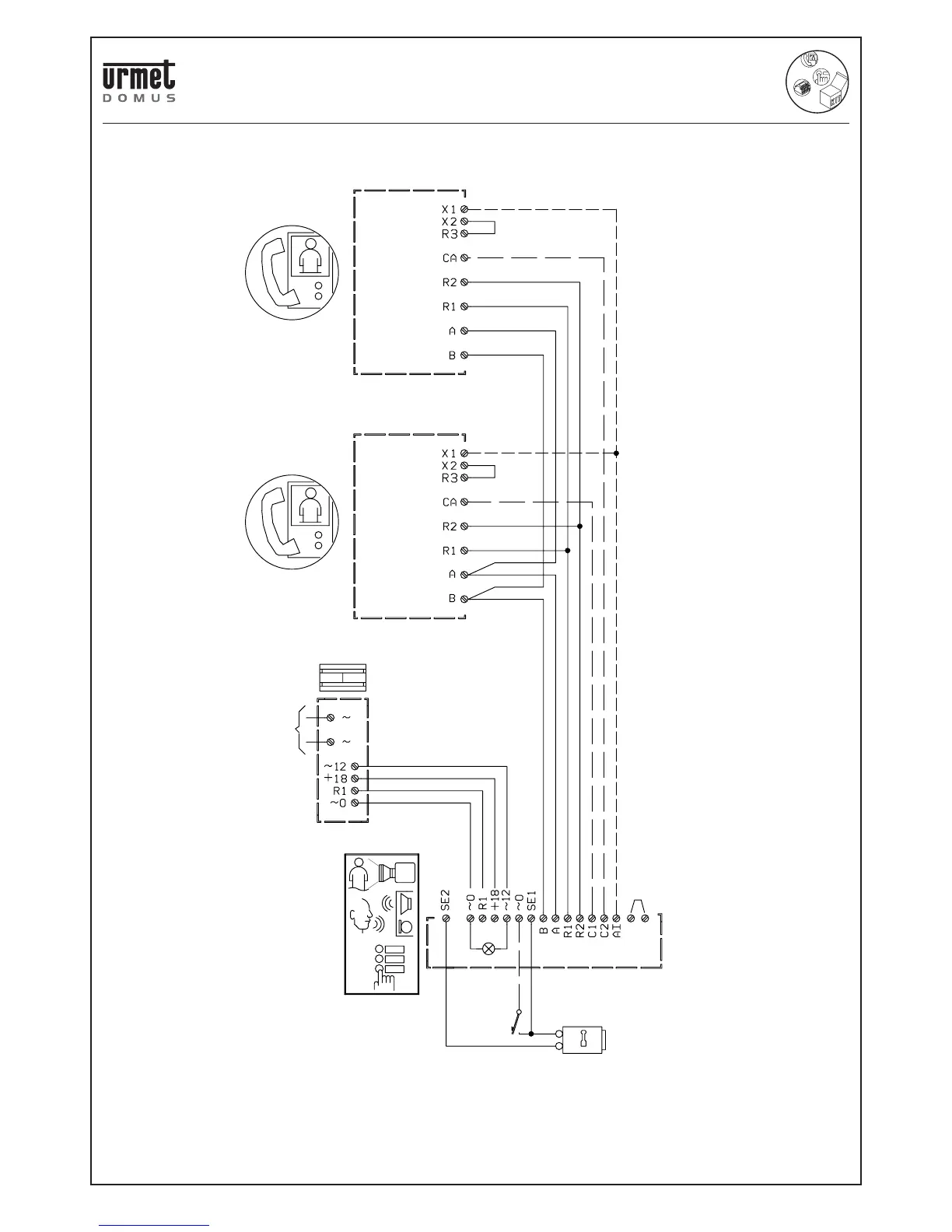

TWO-FAMILY KIT CONNECTION Ref. 956/32
SV102-2081B
(V5.011)
(V5.011)
(V5.006)
1
2
TC
4F
VIDEO DOOR PHONE
Mod.Artico
POWER SUPPLY
MAINS~
Lock
release
Electric lock
12Vca/15Va
VIDEO OUTDOOR
STATION
ONE AND TWO-FAMILY VIDEO KIT Mod. 956 WITH ARTICO VIDEO DOOR PHONE
