urmet domus Audio Two - ONE FAMILY KIT CONNECTION

18
−−−−
sec.5
ONE-FAMILY AND TWO-FAMILY KITS
DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual
V5.011 Connect the wire for Self-insert function. In this case make a
jumper between terminals X2 and R3.
SV102-2082C
(V5.011)
TC
4F
VIDEO DOOR PHONE
Mod.Artico
POWER SUPPLY
MAINS~
Lock
release
Electric lock
12Vca/15Va
VIDEO OUTDOOR
STATION

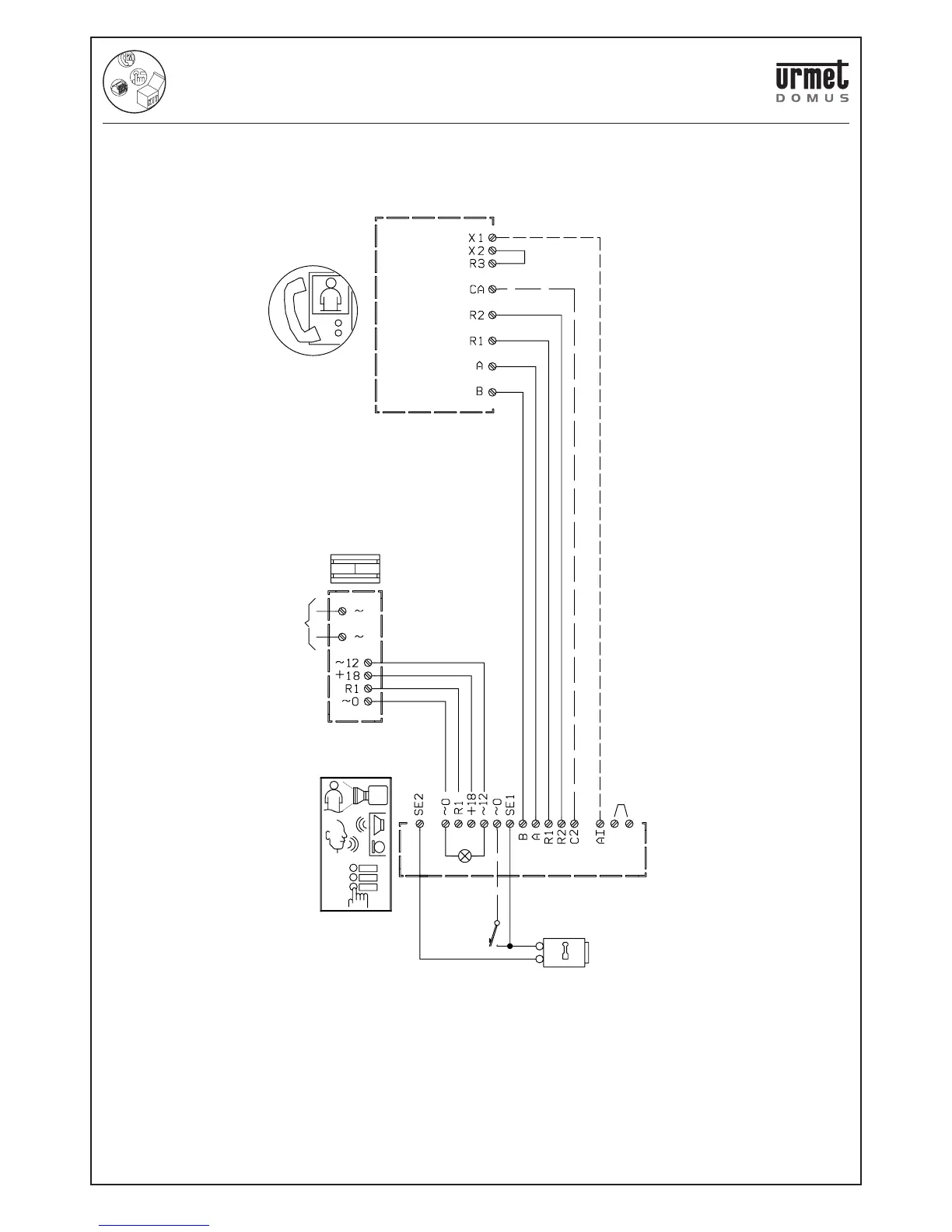

ONE FAMILY KIT CONNECTION Ref. 956/31
ONE AND TWO-FAMILY VIDEO KIT Mod. 956 WITH ARTICO VIDEO DOOR PHONE
