7
DS1375-045
ENGLISH
WARNING! For a functioning of the device it is strictly necessary that the iPerTAlk system version is 2.2.4
or higher.
The IP video door phone Ref.1375/826 is a device dedicated to iPerTAlk system.
Fortrouble-freeoperation,thedevicerequiresaLAN/POE-typeconnection.

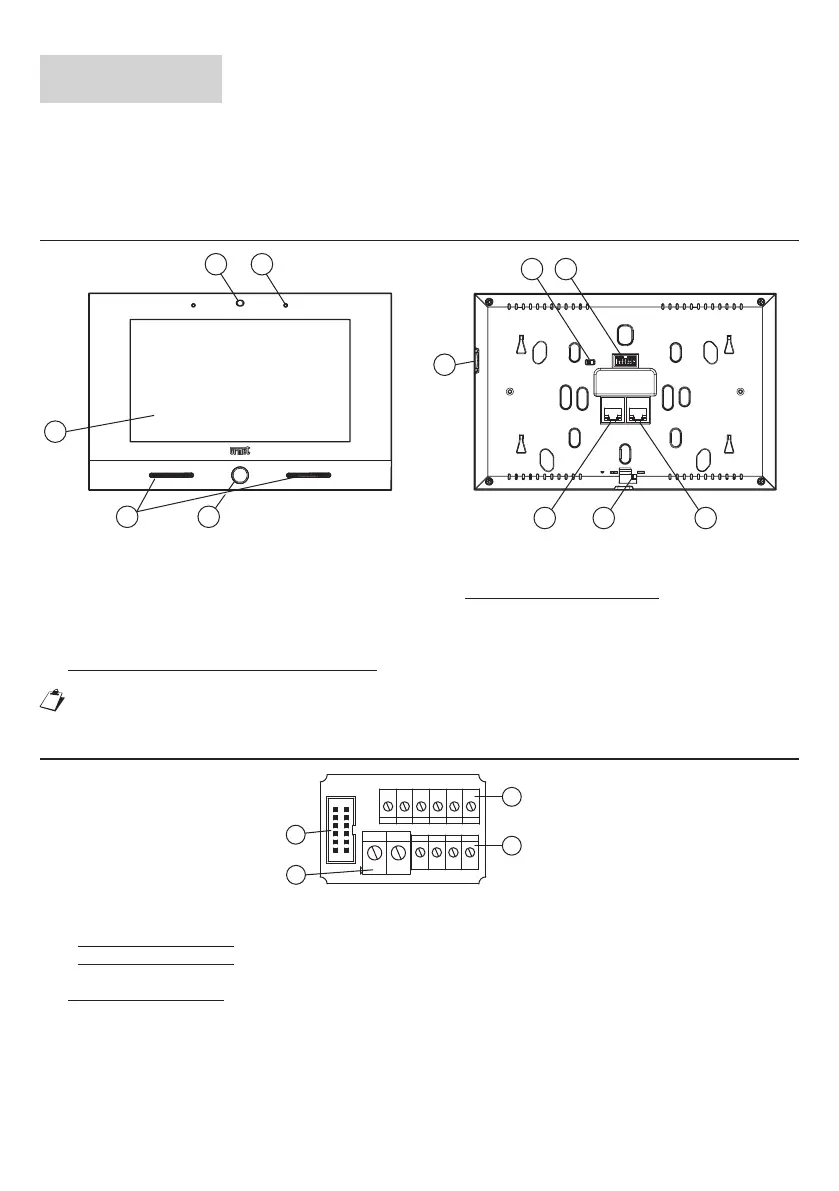

DESCRIPTION OF COMPONENTS
2 1
3
6
7 8
9
11
4
5
10
1. BacklitblueHomebutton
2. Speakers
3. 7” touchscreen display
4. Webcam 2 Mpx
5. Microphone
6. Micro SD card
7. Do not change the position of the switch
8. 12 way connector for external connections’
printed circuit
9. Do not use the connector
10. Videodoorphonelockinglatch
11. LAN connector with POE power supply
(DOORPHONE POE PORT)
Videodoorphoneisprovidedwithanembeddeddeviceforhardofhearing.
DESCRIPTION OF TERMINAL PINS
1
2
4
PANIC
FC
S+
S-
+B
-B+V-V
+ -
3
1. 12 way connector used for video door phone connection to the printed circuit
2. Terminals for the connection of:
•do not use terminals (PANIC)
•do not use terminals (FC)
•callrepeater(S+,S-)
3. do not use terminals(-V,+V,-B,+B)
4. External power supply terminals (+,-)
