Lokar Shifter

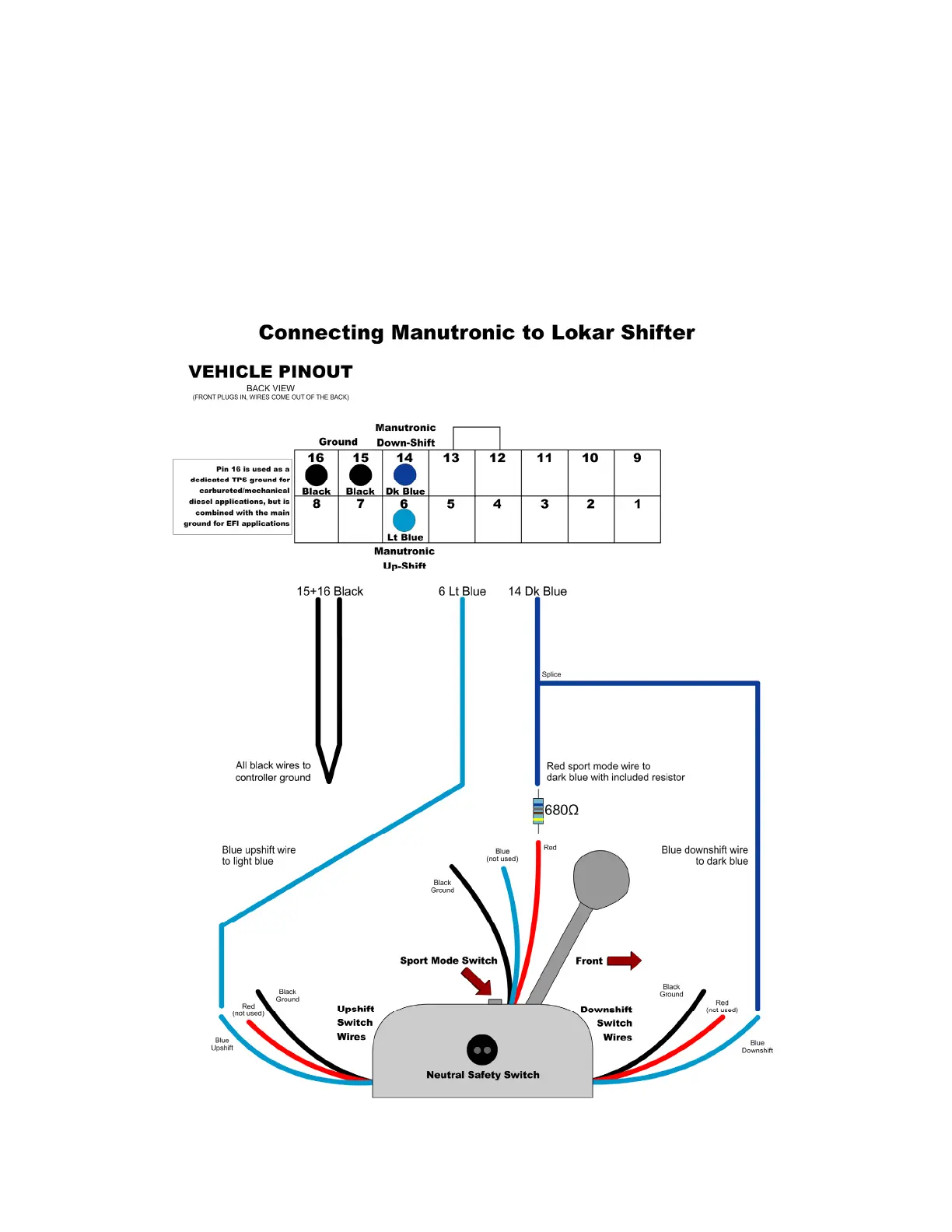

For this configuration, you will need to connect the Dark Blue wire (Pin 14 on the
Vehicle Connector) to the blue down-shift wire and connect the Light Blue wire
(Pin 6 on the Vehicle Connector) to the blue up-shift wire. To connect the sport
mode switch, solder the sport mode switch's red wire onto the Dark Blue down-
shift wire with the included 680 Ohm resistor between them. Then, solder all 3
black wires to the controller's ground connection (Pins 15 + 16 on the Vehicle
Connector. Follow the guidelines for soldering found in the “General Installation”
section.) Remember that the correct settings must be used in Shiftware.
