20
Twist Machine Shrifter
TM

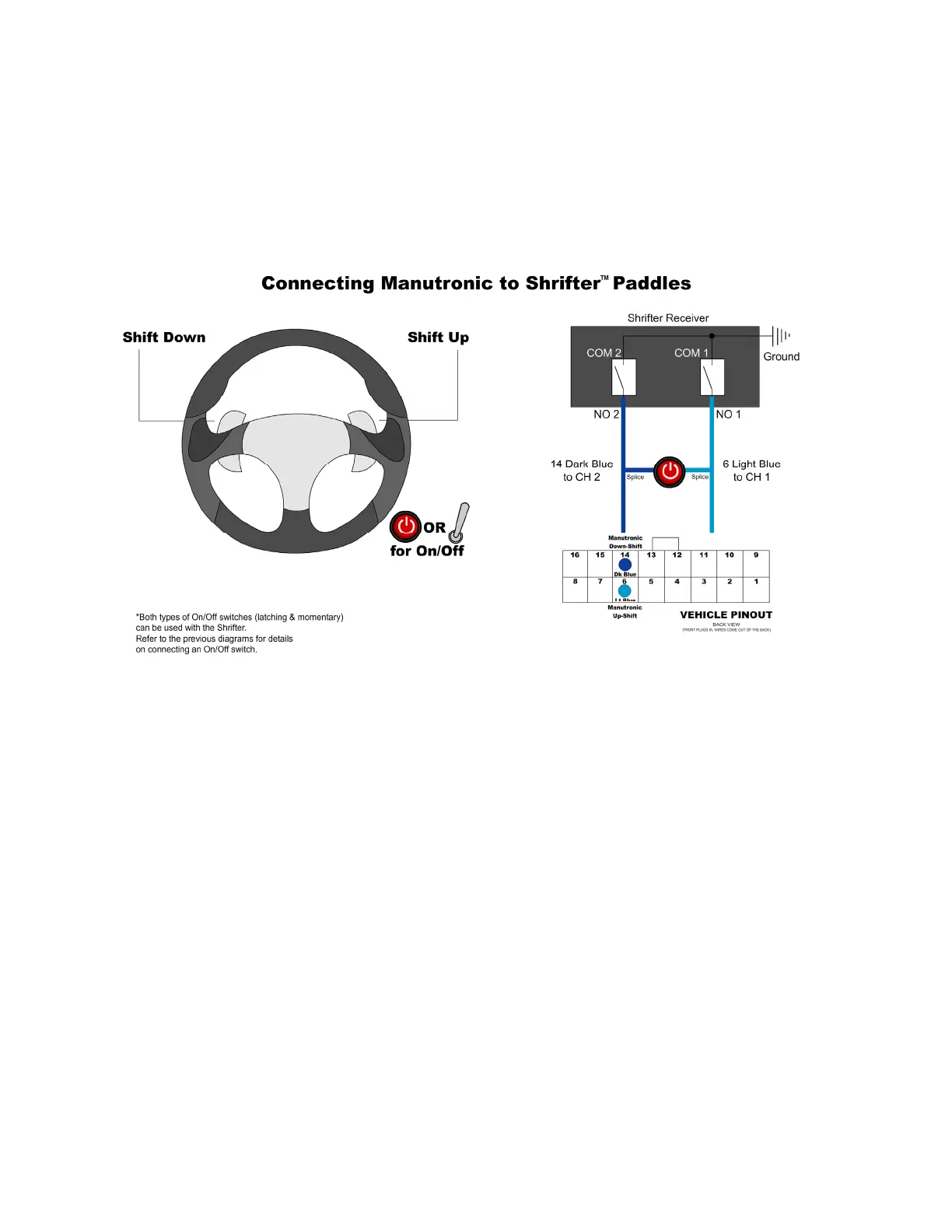

For this configuration, you will need to connect the Dark Blue wire (Pin 14 on the
Vehicle Connector) to channel 2 of the receiver and connect the Light Blue wire
(Pin 6 on the Vehicle Connector) to channel 1 of the receiver. You can use either
a momentary push-button on / off switch or a latching toggle on / off switch.
(Refer to the previous two sections on how to install and use the on / off switch.)
Remember that the correct settings must be used in Shiftware.
