Convert Server User Manual www.usr iot
.
c o
m
Jinan USR IOT Technology Limited 24
/
41 tec@usr.cn
Figure
Figure
Figure

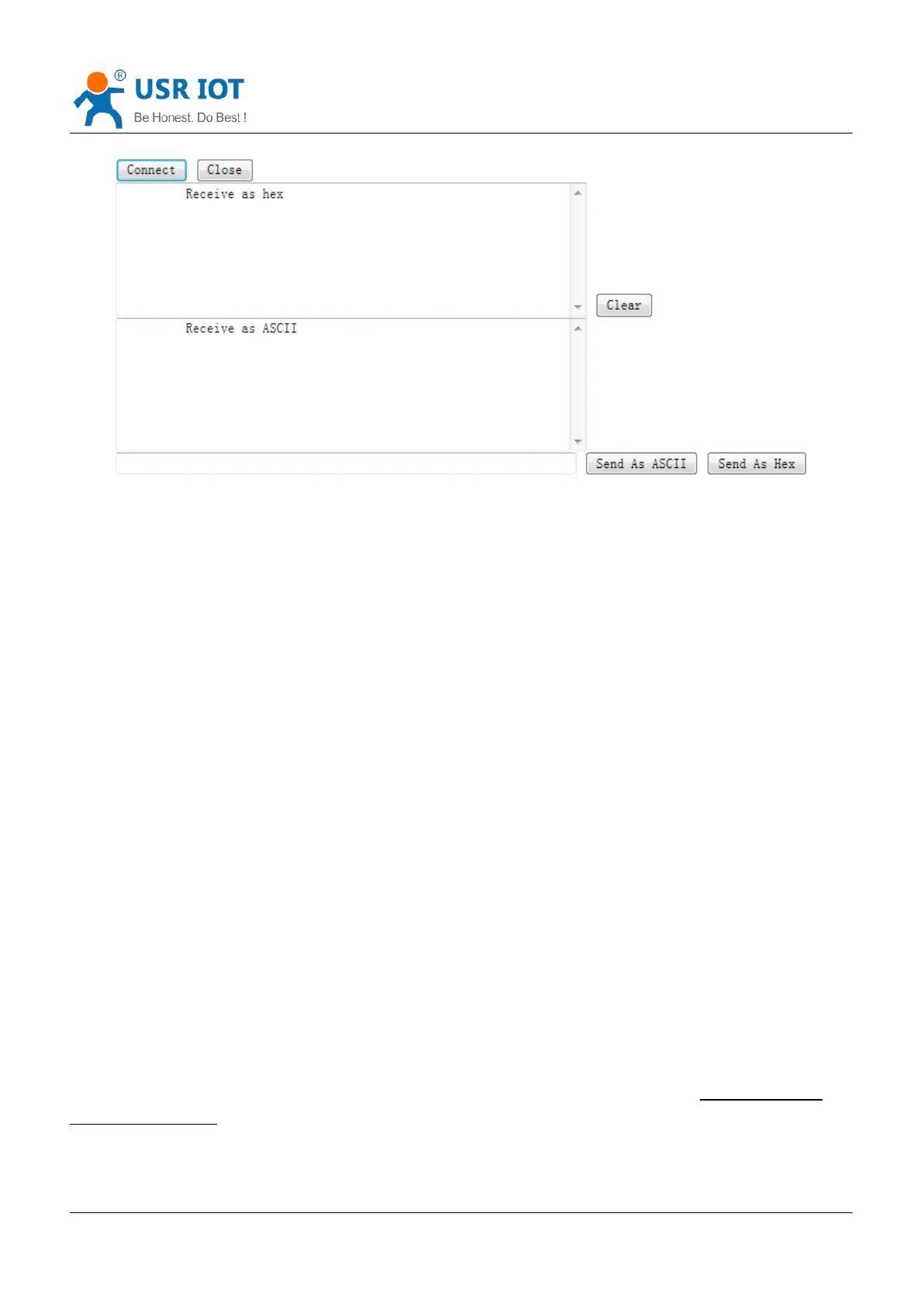

Figure 9
9
9
9 Websocket
Websocket
Websocket
Websocket Page
Page
Page
Page
Click on the "connect" page and then implements a connection, so a serial port with page can send or receive
data from each other.This Convert Server websocket server support 8 client connection at the same time.
This function for web applications, and for web users with higher response speed, if you want to customize
the corresponding web page, can connect your company.
5.7.
5.7.
5.7.
5.7. Palmodic
Palmodic
Palmodic
Palmodic Signal
Signal
Signal
Signal
Base on selected factory default setting, Ready signal can have two output statuses:
Status One: The Convert Server will output 0 after normal boot up. This signal used to judge if
Convert Server finish boot up and ready for application.
Status Two: The Convert Server will output Palmodic Signal after normal boot up.The palmodic signal
is 0.5Hz square wave with dutyfactor 1:1. User can query this signal to judge if Convert Server is active
live or need to re-boot. When Convert Server switches to command mode, it will output 0 , which
used to distinguish work mode and command mode.
Notes:
This function is user selected factory setting and RELD instruction will not effective for this function. If user not
requires this function, the default factory setting is Status One. Contact with USR Technology for more
detailed support.
5.8.
5.8.
5.8.
5.8. Parameters
Parameters
Parameters
Parameters Configuration
Configuration
Configuration
Configuration
Convert Server Convert Server support s two methods to configuration parameters: Web
Web
Web
Web Accessing
Accessing
Accessing
Accessing and
AT+instruction
AT+instruction
AT+instruction
AT+instruction set.
set.
set.
set.
Web accessing means users can configure parameters through built-in webpage. When Convert Server
Convert Server connected to wireless network, parameters configuration is done on a PC connected to the
