USSC King 2007B - Mounting Cast-Iron Flue Collar

5

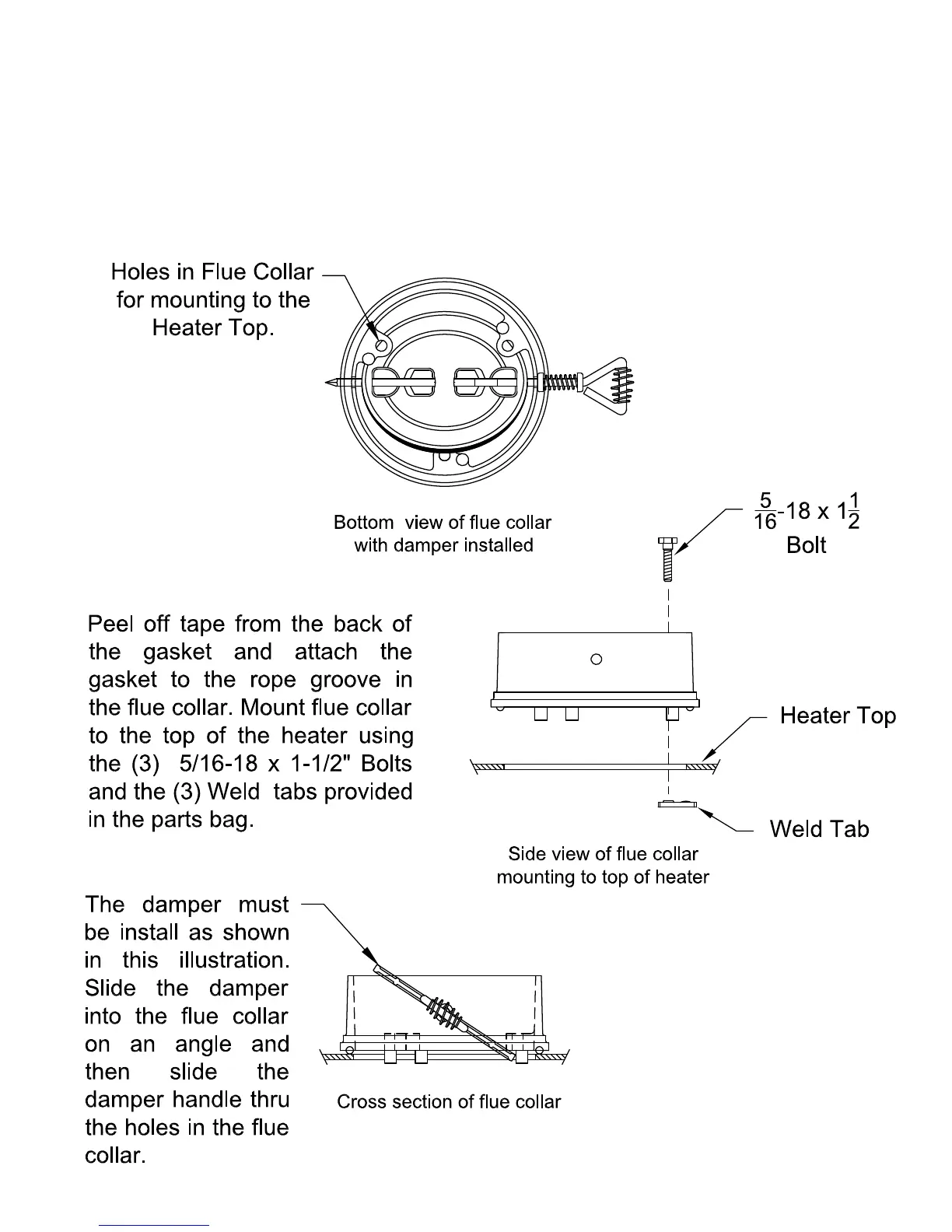

This heater comes equipped with a cast-iron ue collar with holes to mount the solid damper as
shown below.
Flue Collar - 40292
Solid Damper - 40398
5/16-18 x 1-1/2" Bolts (3 req.)
Weld Tab (3 req.)
Gasket

