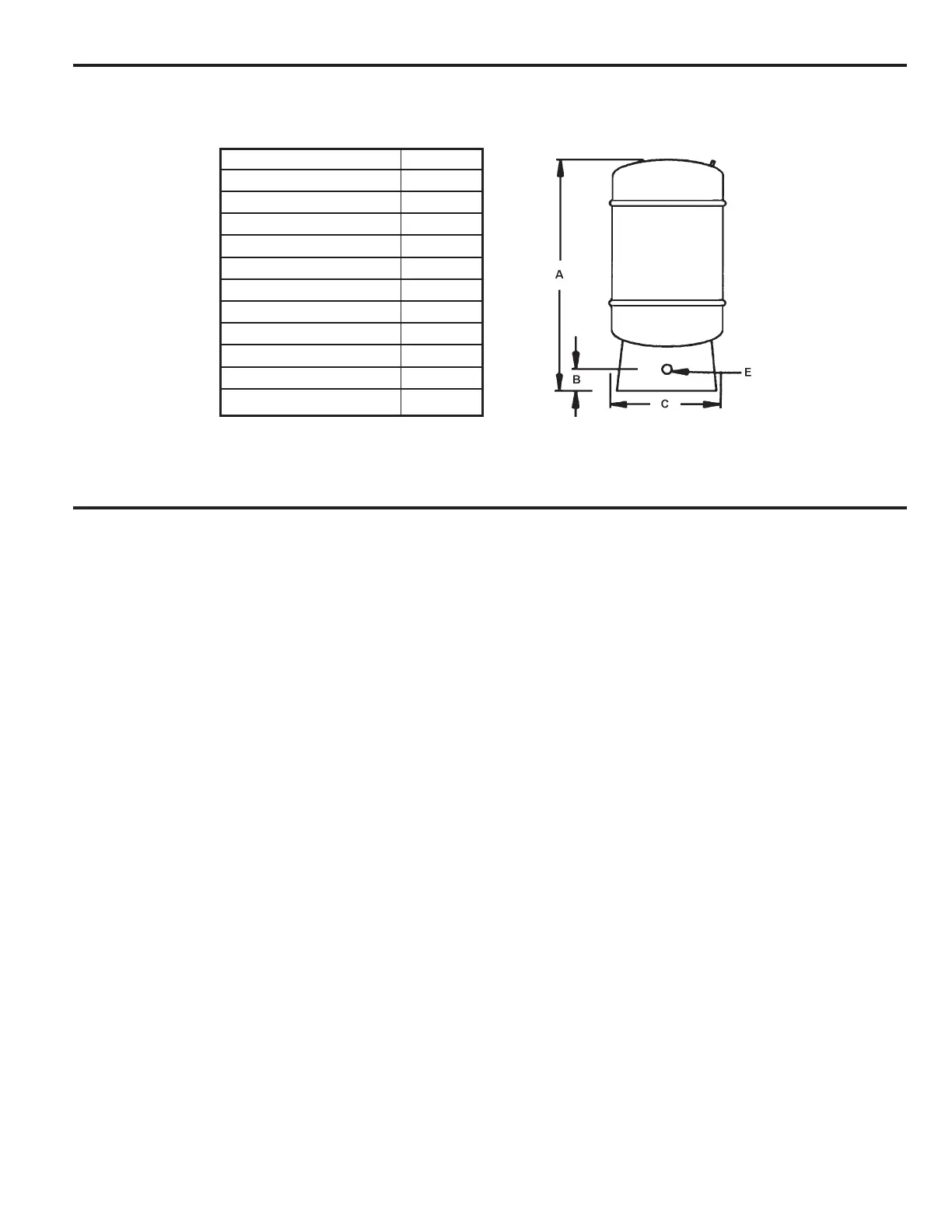

TANK SPECIFICATIONS
Capacity in Gallons 25
Drawdown in Gallons
20 - 40 PSI 9.2
30 - 50 PSI 7.8
40 - 60 PSI 6.8
Precharge Pressure in PSI 25
Dimensions in Inches
A 27
B 2 - 1/4
C 20.5
Discharge Connection E 1 in. NPTF
Weight in Pounds 39.5
PIPING
PVC pipe is shown in the illustrations, but copper or galvanized steel pipe may be used if
desired. All piping must be clean and free of all foreign matter. ALL JOINTS AND CONNECTIONS
IN THE SYSTEM MUST BE AIRTIGHT. A pin-hole leak will prevent proper operation of
system (this is the most common problem). Use thread compound on all threads unless
specified otherwise.
