SCUBAPRO S600-S550 SECOND STAGES
2003 SCUBAPRO
Important note
: The following information is not designed to be a complete training guide for servicing the listed SCUBAPRO regulators. All SCUBAPRO
technicians are required to attend an annual service training program to insure safe handling and servicing of SCUBAPRO products. All SCUBAPRO technicians
must be employed by an authorized SCUBAPRO facility.
15

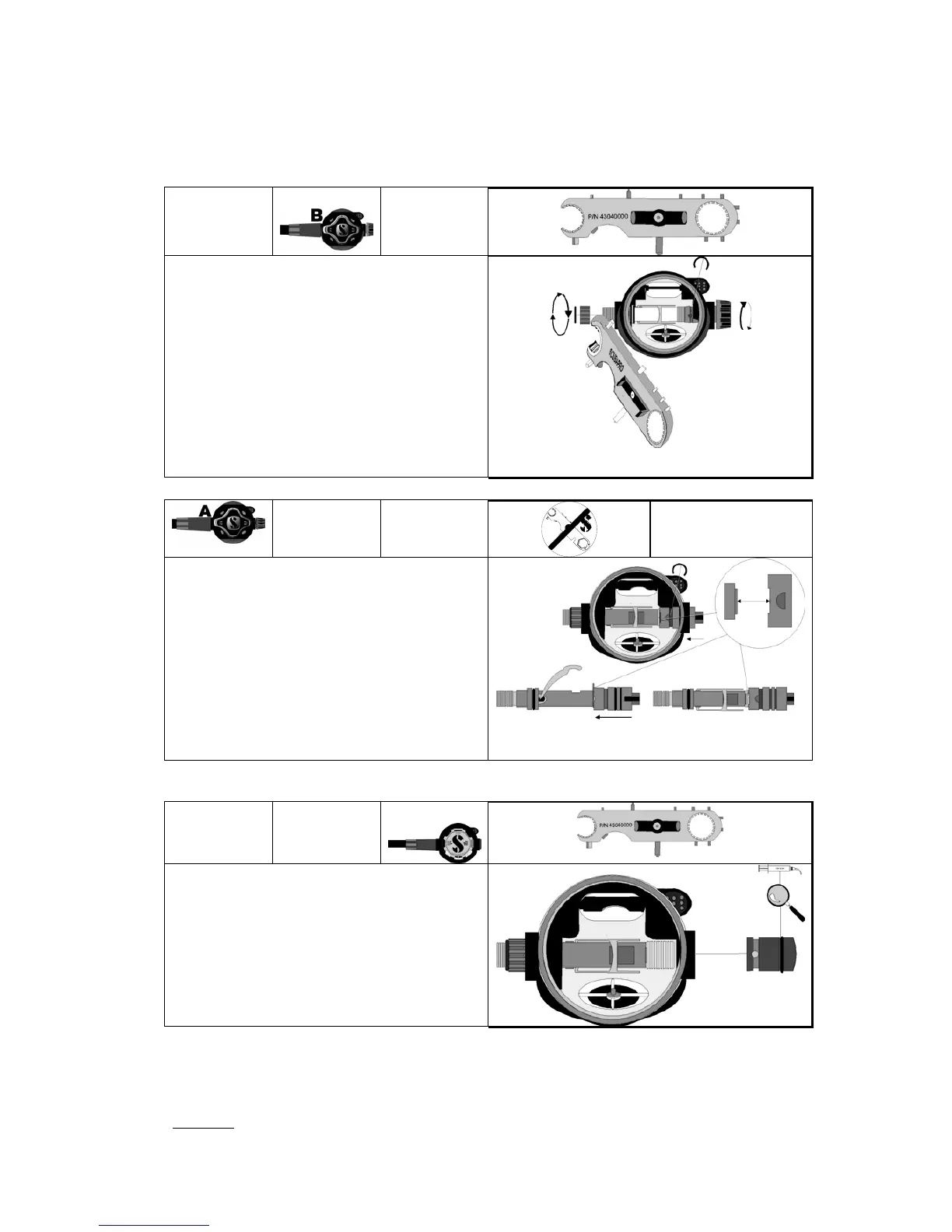

Attach the jam nut on the air barrel.
Place the o’ring on the air barrel next to
the jam nut if needed.
Thread the cracking effort adjustment
knob inward until there is enough
clearance to install the stop clip.
Press the stop clip carefully into place.
Back the adjustment knob out against
the clip ensuring that it stops.
P
/
N
4
3
0
4
0
0
0
0
TOOLS
NEEDED
No tools needed
this step
Insert the breathing adjustment
assembly without the external knob
onto the air barrel.
Push the assembly all the way onto the
barrel, being sure to engage the notch
on the assembly with the key on the air
barrel as shown
Install the stop clip.
Side View Top View
Inspect and lubricate the plug o’ring.
Insert the plug. Thread onto the air
barrel.
To Next Page
