V-Tec DT607 - Page 23

-23-
B
A
C
2
2
DBC4A1
RF CARD
PC6A
Cable and distance(unit:m)
Cable Usage A B C
Twisted cable 2x0.75mm
2
60 60 30
Twisted cable 2x1mm
2
80 80 40
APPENDIX

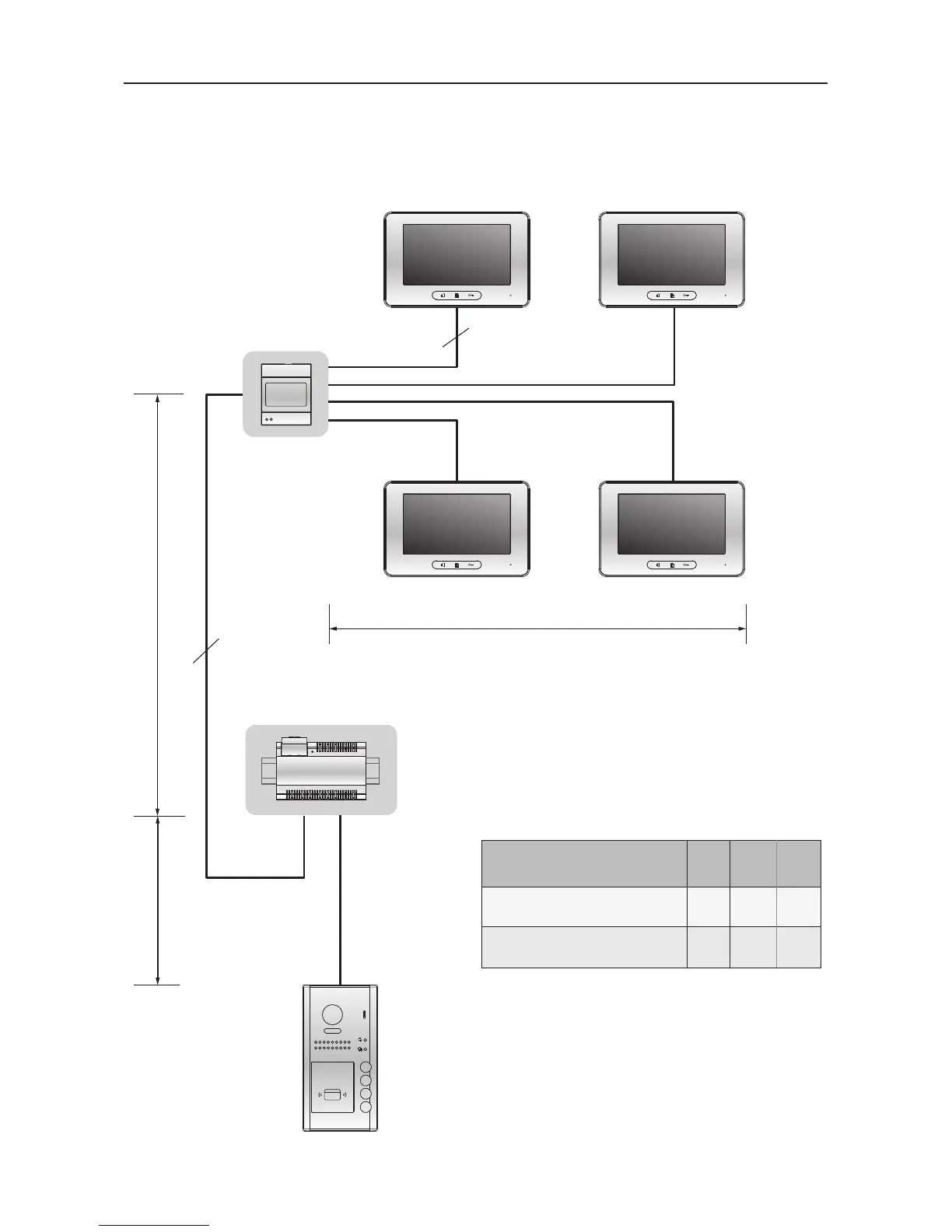

Star Topology Wiring Mode With DBC4A1
