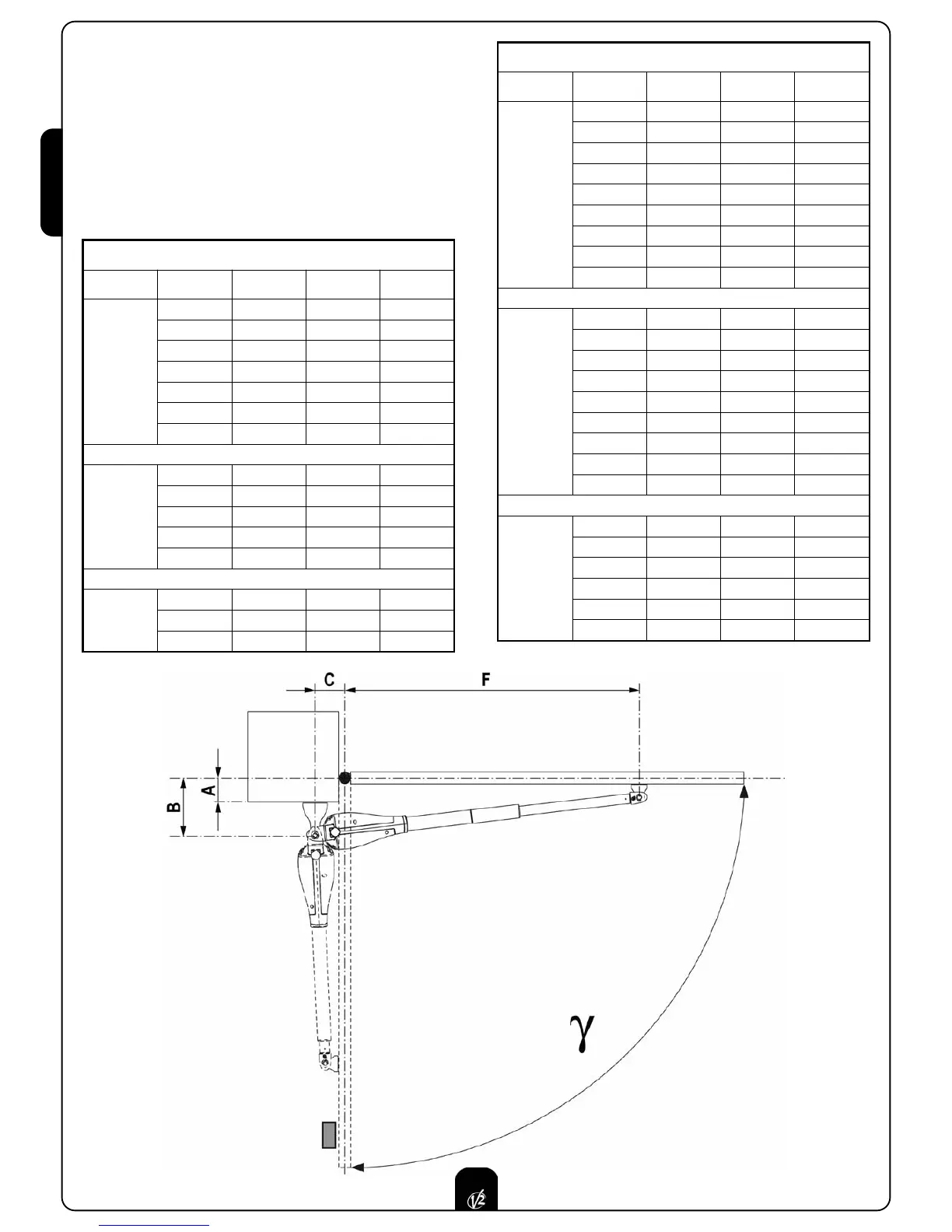

INSTALLATION MEASURES
To carry out a proper installation of the operator parts as well
as to ensure the best automation performance, the
measurement levels shown in the following table shall be
complied with. Change the gate structure to adapt it to one of
the cases in the table, if necessary.
mWARNING: In the case of leaf longer than 2 metres, an
electric lock must be fitted to ensure an efficent closig.
CALYPSO 400
γγ
A [mm] B [mm] C [mm] F [mm]
90°
20 130 130 1010
40 150 140 1000
60 170 150 990
80 190 150 980
100 200 150 980
120 210 140 980
140 250 120 1010
100°
20 130 170 970
40 150 180 960
60 170 180 960
80 190 170 970
100 210 140 990
110°
20 130 190 950
40 150 180 960
50 160 170 970
CALYPSO 500
γγ
A [mm] B [mm] C [mm] F [mm]
90°
20 130 170 1200
40 150 180 1190
60 170 180 1190
80 190 190 1180
100 210 190 1170
120 230 190 1170
140 250 180 1170
160 270 190 1170
180 290 170 1180
100°
20 130 160 1210
40 150 170 1200
60 170 170 1200
80 200 180 1190
100 210 170 1190
120 230 190 1170
140 250 180 1180
160 270 160 1200
170 280 160 1200
110°
20 130 170 1200
40 150 180 1190
60 170 180 1190
80 190 190 1180
100 210 200 1170
110 220 200 1170
