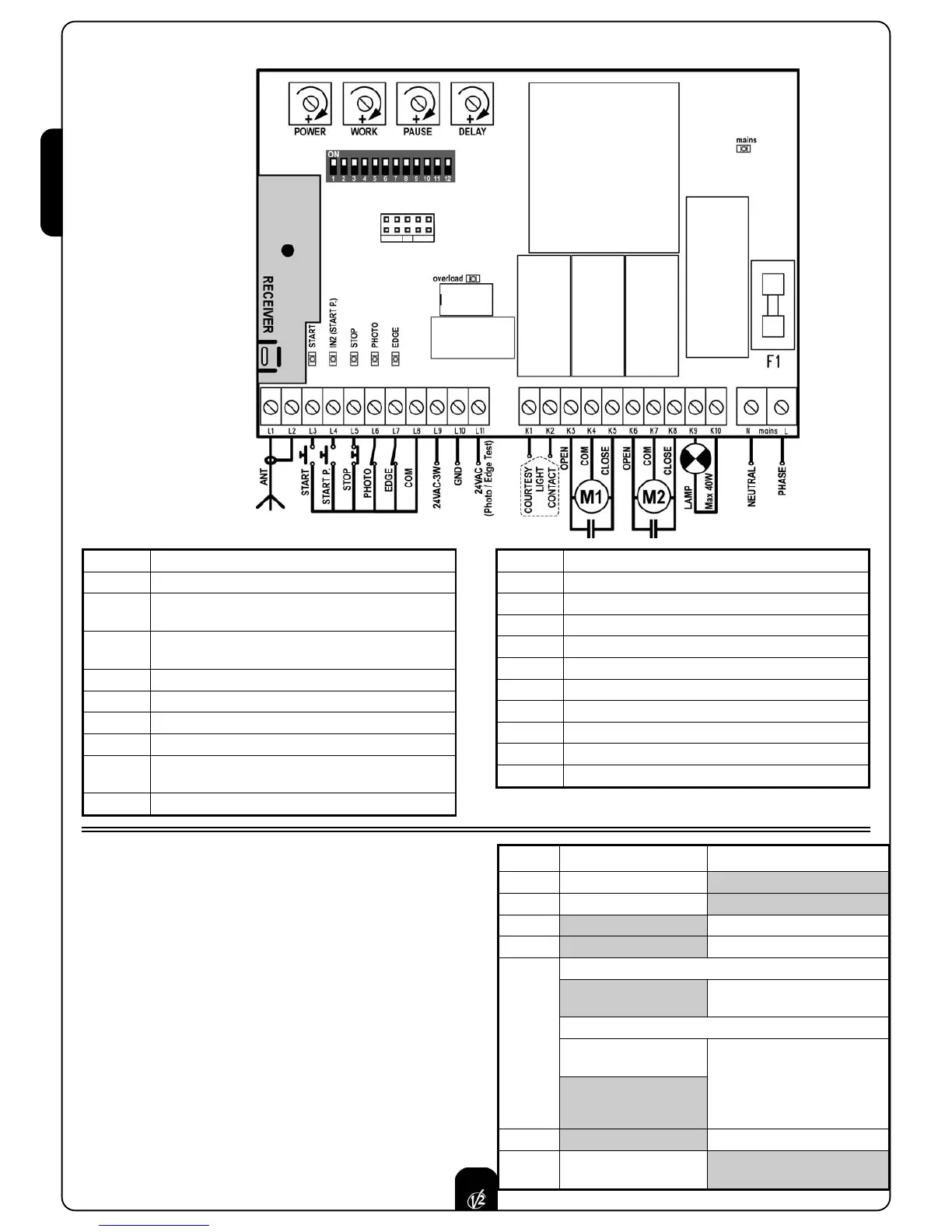

ELECTRICAL CONNECTION TABLE
L1 Antenna
L2 Antenna shield
L3
Opening command for a standard connection device
with switch normally open.
L4
Pedestrian opening command for a standard
connection device with switch normally open.
L5 STOP command. N.C. switch
L6 Photocell. N.C. switch
L7 Edge. Switch N.C. or resistive rubber edge
L8 Commands common (-) line
L9 - L10
24 VAC power output for photocells and other
accessories
L10 - L11 Power supply for functional test TX photocell
K1 - K2 Courtesy light timer activation switch
K3 Motor 1 open
K4 Motor 1 common
K5 Motor 1 close
K6 Motor 2 open
K7 Motor 2 common
K8 Motor 2 closed
K9 - K10 230V - 40W / 120V - 40W blinker
N 230V / 120V power supply - neutral
L 230V / 120V power supply - phase
J1 NOT USED
ADJUSTMENT OF THE POWER AND
OPERATIONAL TIMES
The power and operating times may be adjusted by means of 4
trimmers located on the control unit:
POWER: motor power.
WORK: motor operating time (5 - 120 seconds).
m PLEASE NOTE: it is recommended that operating times be
set with the slow down function disabled (DIP 5 OFF).
PAUSE: pause time before automatic re-closure
(5 - 120 seconds).
DELAY: time delay between the two gate leaves
(0 - 60 seconds).
CONTROL UNIT INDICATORS (LEDS)
The highlighted boxes indicate the state of the LEDs when the
gate is resting.
mPLEASE NOTE: If
not used, the normally
closed inputs (STOP,
PHOTO, EDGE) must be
jumpered with the
commands common line
COM (-)
LED ON OFF
START START input closed START input open
IN2 START P. input closed START P. input open
STOP STOP input closed STOP input open
PHOTO PHOTO input closed PHOTO input open
EDGE
Standard edge
EDGE input closed (edge
not pressed)
EDGE input open (edge
pressed)
Resistive rubber edge
EDGE input closed (edge
pressed)
EDGE input open
(fault)
Edge NO pressed: 8K2
between EDGE input
and common (-)
mains Control unit powered-up Control unit NOT powered-up
overload
Accessory power supply
overload
Accessory power supply within
normal operational limits
J1
