TECHNICAL DATADESCRIPTION OF THE PRODUCT
This product has been designed to automate gates or
doors with leaf opening, for residential or industrial use.
m CAUTION!
Any other use different to that described and in ambient
conditions different to those set out in this manual is to be
considered improper and forbidden!
The product is an electromechanical gear motor, equipped
with motor and an endless screw reduction gear.
The gear motor is powered by the external control unit to
which it is connected.
In the event of a black out, it is possible to move the gate
leaves by hand, unblocking the gear motor manually.

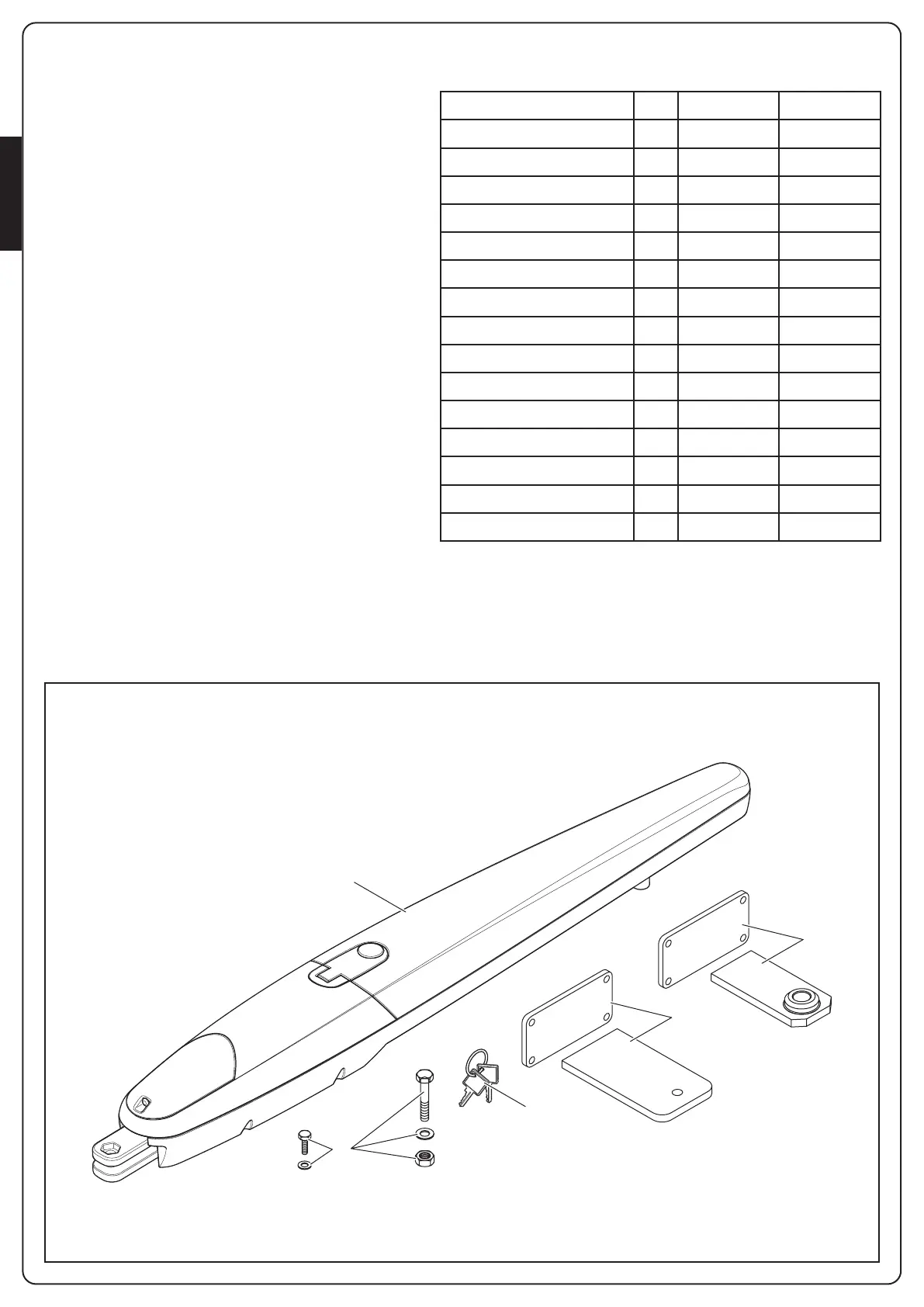

Fig. 1 shows all the components provided in the package:
a - electromechanical gear motor
b - front bracket and plate (for fixing the gear motor to
the gate leaf)
c - rear bracket and plate (for fixing the gear motor to the
wall)
d - metal parts (screws, washers, etc.)
e - keys to manually unlock the gear motor
STARK6-24V STARK6-230V
Max. leaf lenght
m 6 6
Max. leaf weight
Kg 750 750
Power supply
Vdc 24 230
Idling current
A 0,8 1
Full load current
A 7 1,2
Electric power
W 170W 240W
Opening time of the leaf 0÷90°
s 28 25
Max travel
mm 540 540
Operating speed (unloaded)
m/s 0,016 0,016
Operating speed (full load)
m/s 0,012 0,014
Maximum thrust
N 2400 2000
Working temperature
°C -20 ÷ +55 -20 ÷ +55
Protection
IP 44 44
Working cycle
% 80 30
Motor weight
Kg 9 10
a
d
e
b
c
FIG.1
