DEUTSCH
108
8.10 -

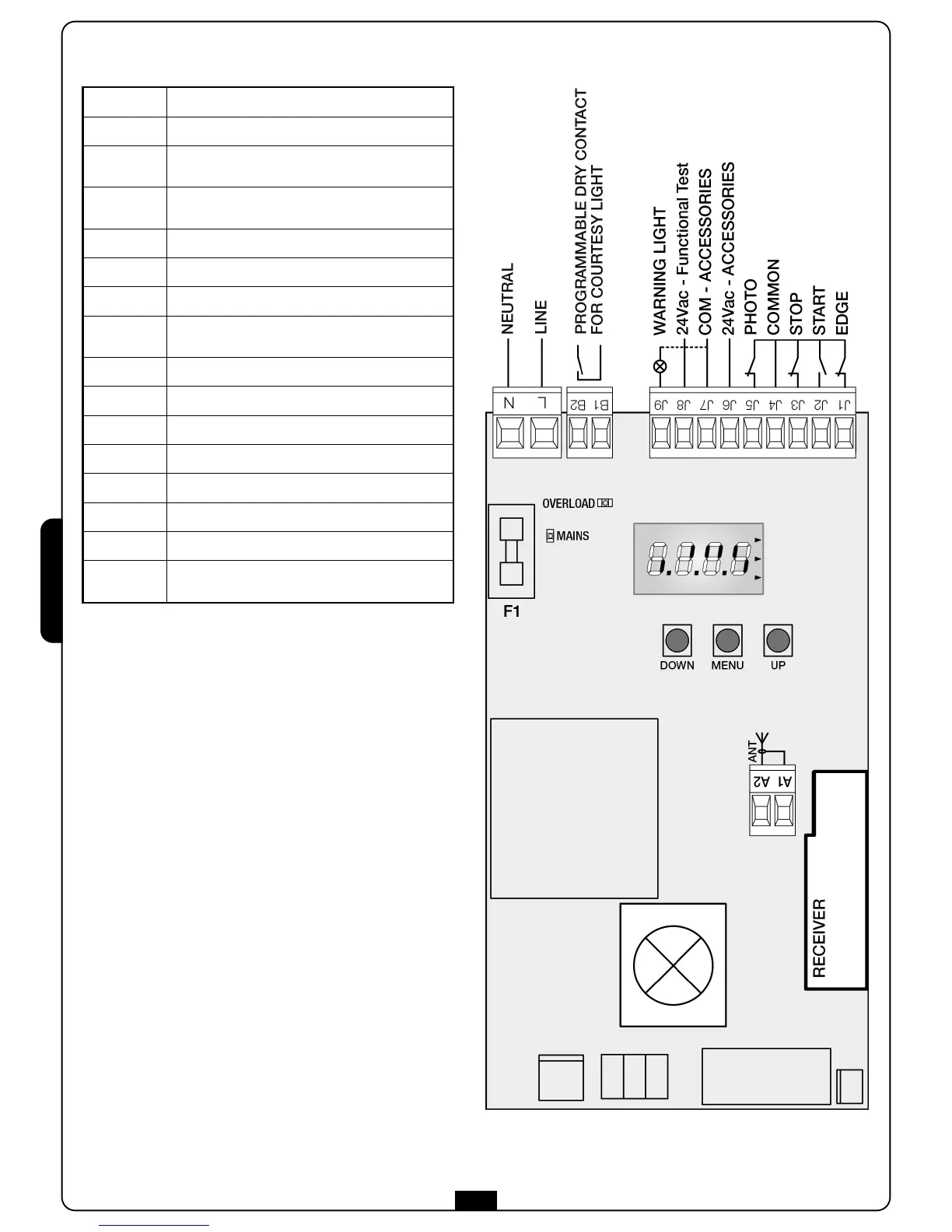

ELEKTRISCHEN ANSCHLÜSSE
A1 Entstörung Antenne
A2 Zentrale Antenne
J1
Empfindliche Rippe.
N.C.-Kontakt oder Rippe aus leitfähigem Gummi
J2
Öffnungsbefehl für die Anschlüsse der
t
raditioneller Steuervorrichtungen mit NO-kontakt
J3 Befehl STOP. NC-Kontakt
J4 Gemeinsames (-)
J5 Fotozellen. NC-Kontakt
J6 - J7
Versorgungsausgang 24 VDC für Fotozellen und
anderes Zubehör
J
7 - J8
V
ersorgung TX Fotozellen für den Funktionstest
J7 - J9 Warning light
B1 - B2 Innenbeleuchtung
L Phase Versorgung
N Nulleiter Versorgung
F1 T1,6A
MAINS Licht an wenn die Steuerung gespeist ist
OVERLOAD
Licht wenn es gibt ein Zubehörüberlast Speisung
an
