WARNING! Ensure you read, understand and apply Section 1 ‘Safety Instructions’.
Reminder: DO NOT vacuum hazardous substances. Use of an incorrect dust bag
will invalidate your warranty.

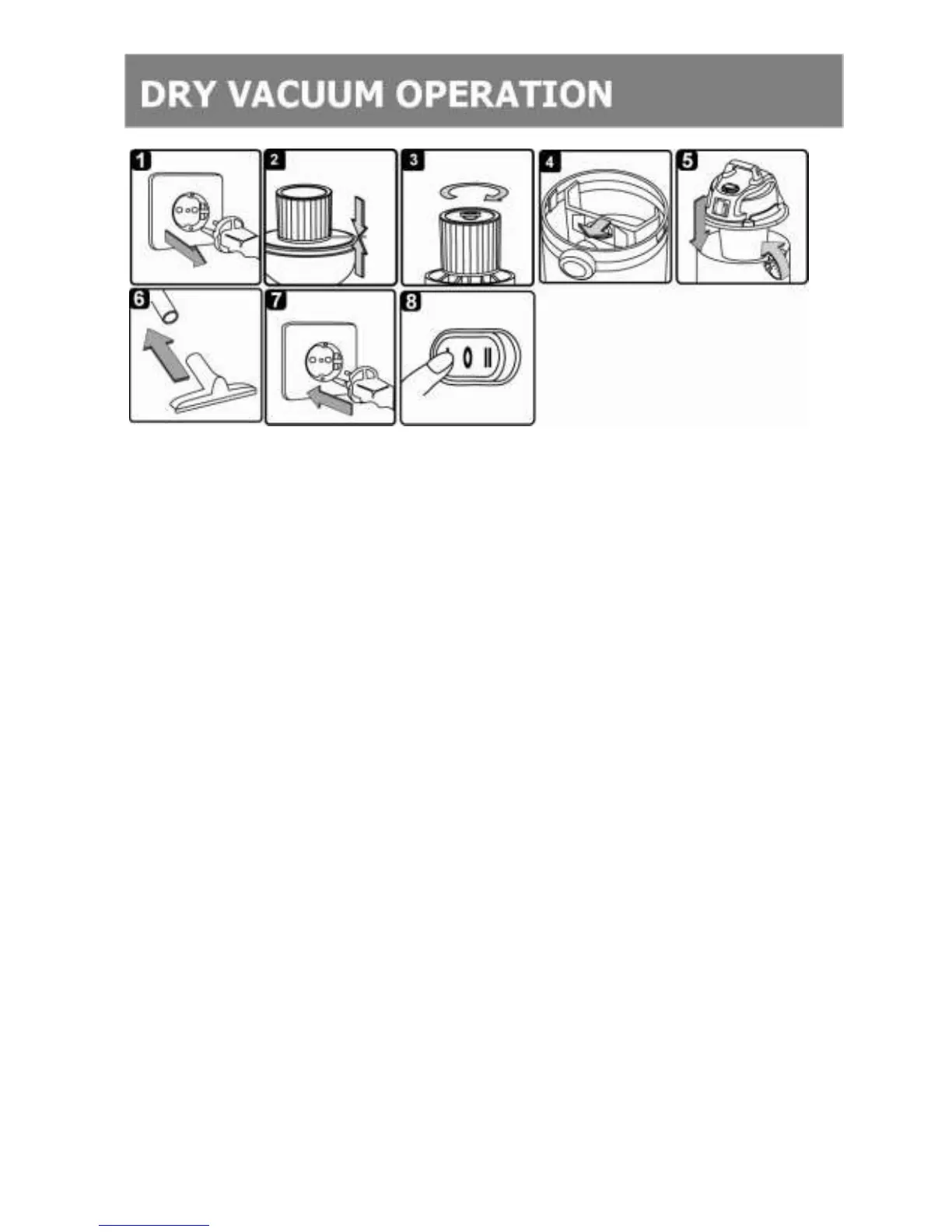

4.1. Verify that the power cord is disconnected from the outlet.(fig.1)
4.2. In order to prepare your vacuum for dry vacuuming, verify that the cartridge filter is
securely mounted. With power head removed and in upside down position, make sure
the filter is pushed in until it stops against the power head and the retainer is installed.
(fig.2 & 3) (Your Wet/Dry Vac comes with the cartridge filter pre-installed, if not, see page
13 for installation instructions.)
4.3. Optional, for improved dust filtering, fit collection bag flange onto the inlet stub, taking
care not to damage the bag. (fig.4)
4.4 Place the power head back on the container, and secure it in place using the latches.
(fig.5)
4.5 Insert the locking end of the hose into the vacuum port and screw in place. Push the
required attachment onto the free end of the hose or extension. (fig.6)
4.6. Plug in the power cord in to the outlet.(fig.7)
4.7 .Turn the motor on by dipping the switch to the “I” ON position.(fig.8)
4.8. Once you have completed vacuuming. flip the switch to the “o” OFF position and
unplug the power cord from the outlet.
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING
