VADDIO USB 3 - Basic Connections; Optional Ethernet Pass-Through Connection

7

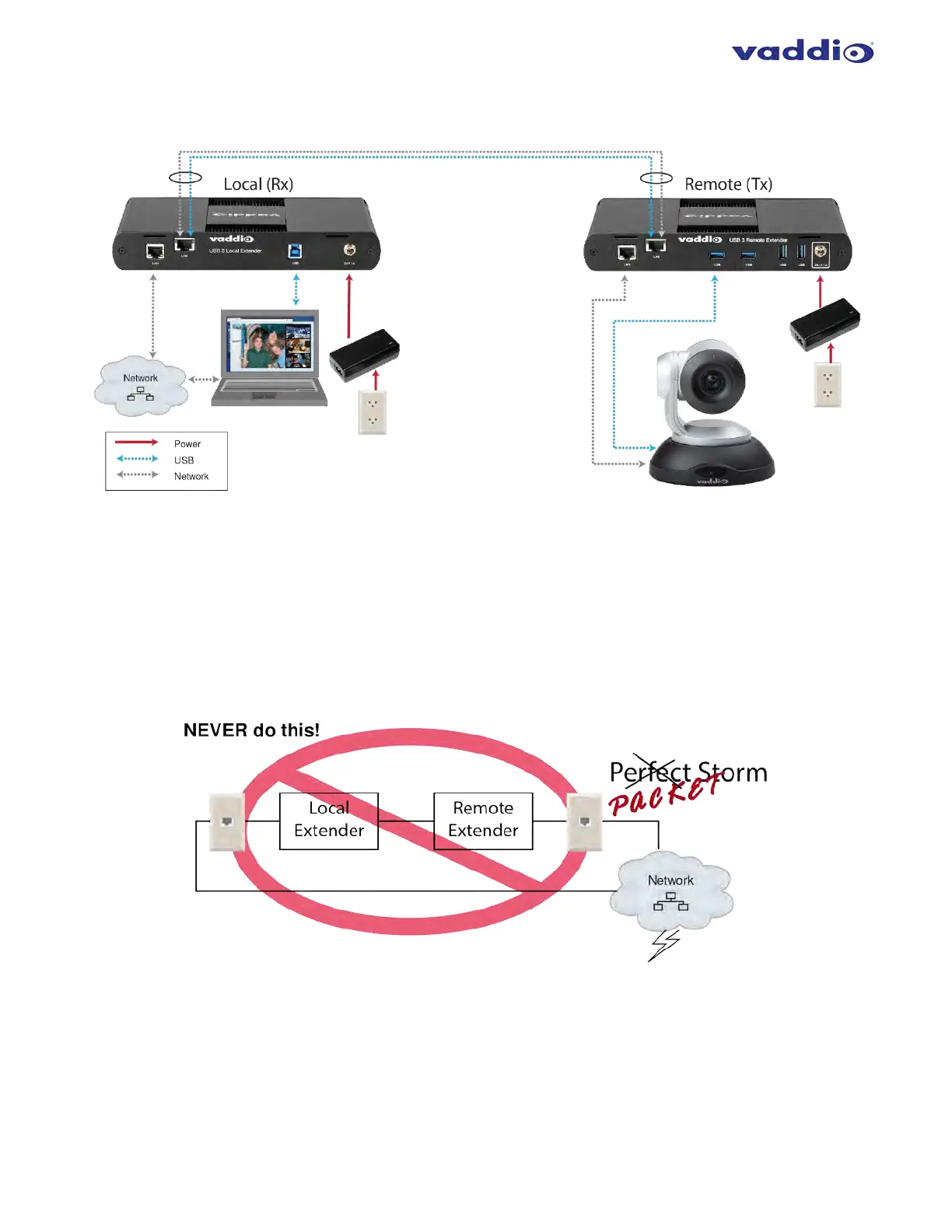

Basic Connections
In this scenario, USB and network connectivity extend to a camera installed some distance away.
Optional Ethernet Pass-Through Connection
The USB 3 Extenders offer a 100/1000 Mbps Ethernet pass through connection that can be used for:
 Connecting network devices
 Extending network access to the same location as the Remote Extender
 Leveraging existing cabling to provide USB connectivity without losing network connectivity
On one of the extenders, connect the LAN port to the network. On the other extender, connect the LAN port to
the network port on a device requiring network connectivity.
CAUTION: DO NOT CONNECT BOTH EXTENDERS TO THE NETWORK.
