VADO ALTITUDE - Product Operation Guide; Flow Control Operation; Temperature Control Operation

Outlet 1 &
Handset Outlet
Outlet 3
1
On
Off Off

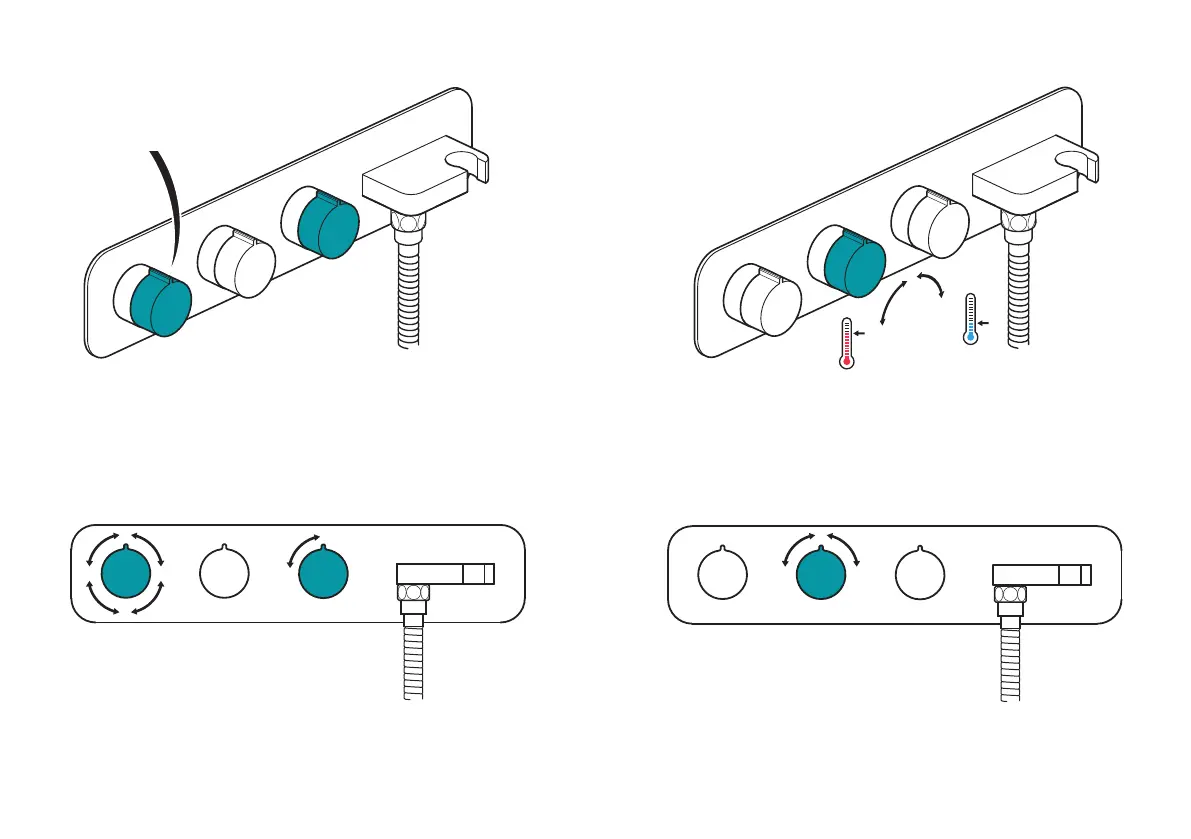

Turning the flow control in the direction of the arrows
increases the flow of water to the outlets.
Operation - flow control
Handset
4
Handle in Off position
(handle at 12 o’clock)
Cold
Hot
Hot
Turning the temperature control handle in the direction of
the arrows increases/decreases the temperature
Operation - temperature control
Cold
5
