Evaporation always takes place on the plate side and cooling on the shell side.

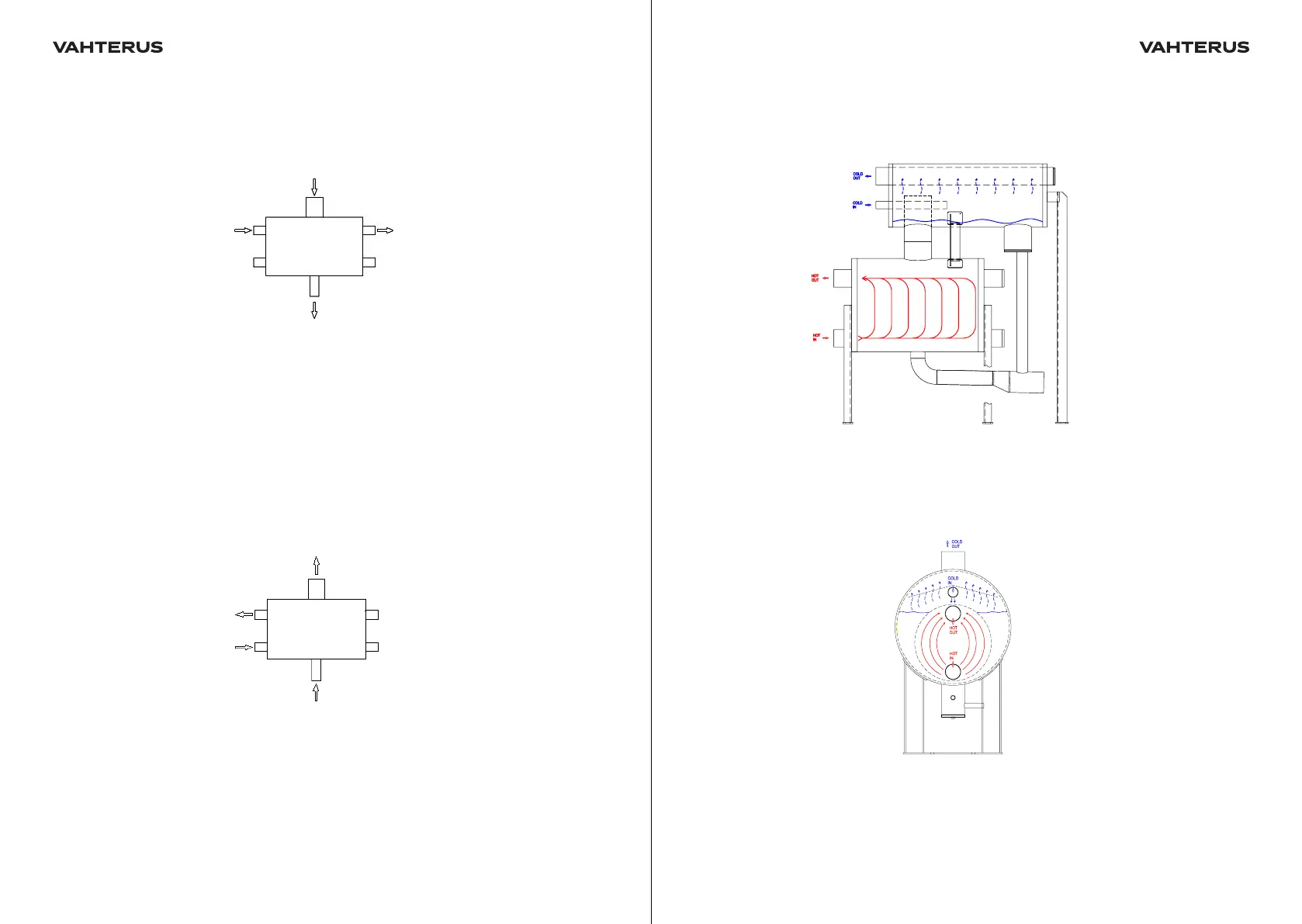

4.1.4 Flooded Evaporator
Evaporation generally takes place on the shell side. With special applications, however,
it can take place on the pack side.
HOT IN
cold out
HOT OUT
COLD IN
1-pass eccentric
HOT IN
HOT OUT
COLD OUTCOLD IN
4.1.5 Droplet Separator
The heat exchanger system is the same as in 4.1.4, with the addition of a droplet sep-
arator and recirculation pipe.
In the combined heat exchanger the droplet separator is integrated within the ex-
changer’s shell.
4.1.3 DX-Evaporator continues from last page:
