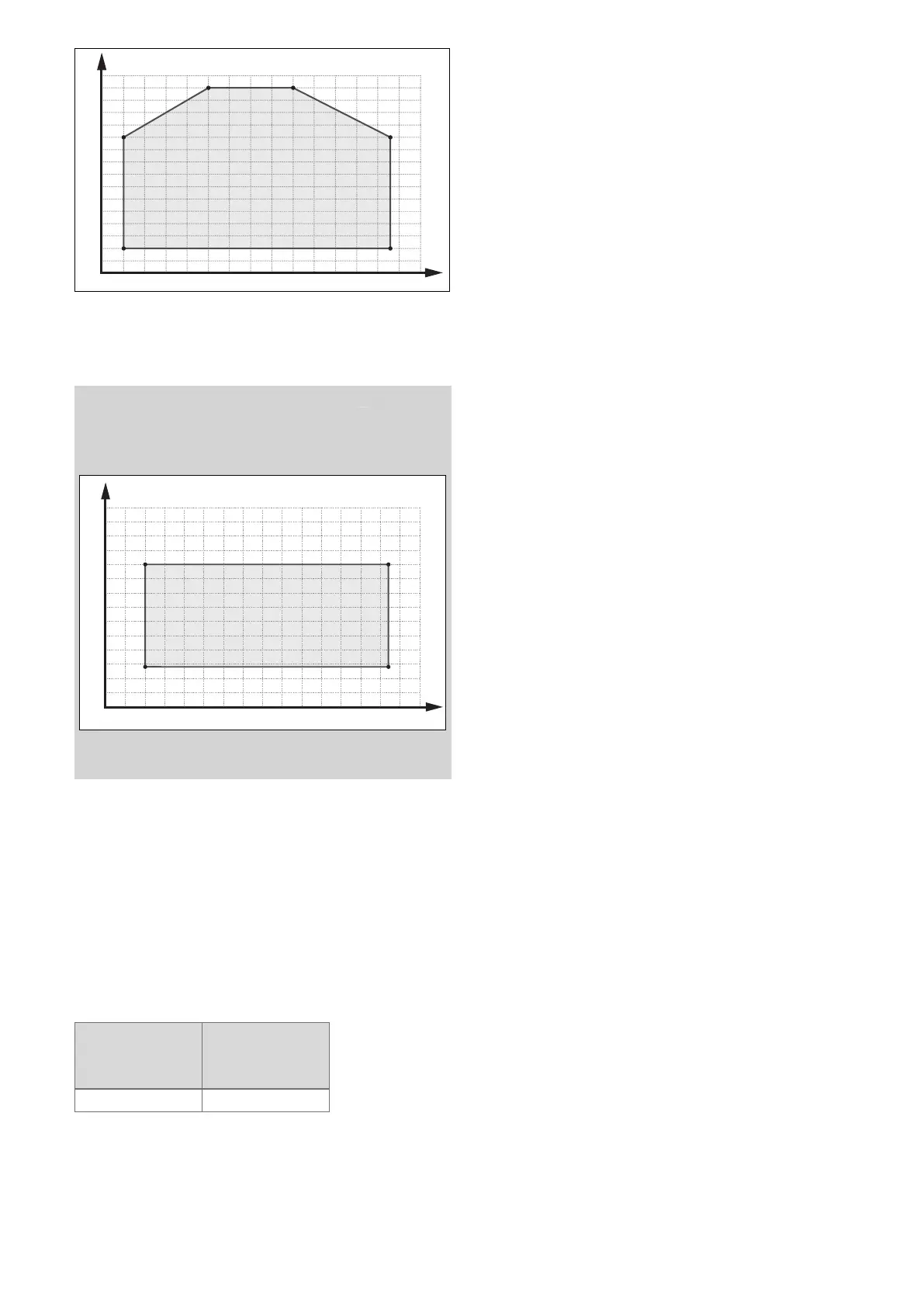

3.10.3 Application limits, cooling mode
Validity: Product with cooling mode
In cooling mode, the product works at outdoor temperat-
ures of 15 °C to 46 °C.
25
30201510
0
5
10
15
20
25
30
35
35 40 45 50
A
B
A Outdoor temperature B Heating water temper-
ature
3.11 Thawing mode
At outdoor temperatures below 5 °C, condensation on the
fins of the evaporator may freeze and frost may form. This
frost is automatically detected and is automatically thawed at
certain intervals.
The thawing occurs by reversing the refrigeration circuit
while the heat pump is operating. The heat energy that is
required for this is taken from the heating installation.
Correct thawing operation is only possible if the minimum
volume of heating water is circulating in the heating installa-
tion:
Activated back-
up heater, heating
water temperature
> 25 °C
Deactivated back-
up heater, heating
water temperature
> 15 °C
45 litres 150 litres
3.12 Safety devices
The product is equipped with technical safety devices. See
"Safety devices" graphic in the appendix.
If the refrigerant circuit pressure exceeds the maximum pres-
sure of 3.15 MPa (31.5 bar), the pressure switch temporarily
switches the product off. Following a waiting period, another
attempt is made to start it. After three failed start attempts in
succession, a fault message is displayed.
If the product is switched off, the crankcase housing heat-
ing is switched on when the compressor outlet temperat-
ure reaches 7 °C. This prevents possible damage caused
by switching the product back on.
If the compressor inlet temperature and the compressor out-
let temperature are below -15 °C, the compressor does not
start up.
If the temperature measured at the compressor outlet is
higher than the permissible temperature, the compressor
is switched off. The permissible temperature depends on the
evaporation and condensation temperature.
The pressure in the heating circuit is monitored using a pres-
sure sensor. If the pressure falls below 0.5 bar, a fault shut-
down occurs. If the pressure rises to above 0.7 bar, the fault
is reset again.
The pressure in the heating circuit is protected using an ex-
pansion relief valve. The load relief occurs at 2.5 bar.
The product is equipped with an automatic air vent. This
must not be sealed.
The heating circuit's circulation water volume is monitored
using a flow rate sensor. If no flow rate can be detected
when there is a heat demand when the circulation pump is
running, the compressor does not start up.
If the heating water temperature falls below 4 °C, the pro-
duct's frost protection function is automatically activated as
the heating pump is started.
4 Protective zone
4.1 Protective zone
The product contains R290 refrigerant. Note that this refri-
gerant has a higher density than air. In the event of a leak,
escaping refrigerant may collect near the ground.
The refrigerant must not collect in any way that may lead
to a dangerous, explosive, suffocating or toxic atmosphere.
The refrigerant must not get inside the building via building
openings. The refrigerant must not collect in grooves.
A protective zone is defined around the product. There must
be no windows, doors, light shafts, cellar entrances, escape
hatches, flat-roof windows or ventilation openings in the pro-
tective zone.
There must be no ignition sources, such as plug sockets,
light switches, lamps, electrical switches or other permanent
ignitions sources, in the protective zone.
The protective zone must not extend to adjacent buildings or
public traffic areas.
In the protective zone, you are not permitted to make any
subsequent structural alterations which infringe the stated
rules for the protective zone.
