4.2 Rear flue exit
Mark the position of the air/flue duct and its circumfe-
rence.
4.3 Other flue options
Flue instructions for other flue systems such as vertical
RSF flues, flues run to the side of the boiler and the use
of additional bends etc. are detailed in the flue
installation instructions provided with the boiler.
Remove the template from the wall and plug the drilled
holes using the wallplugs supplied.

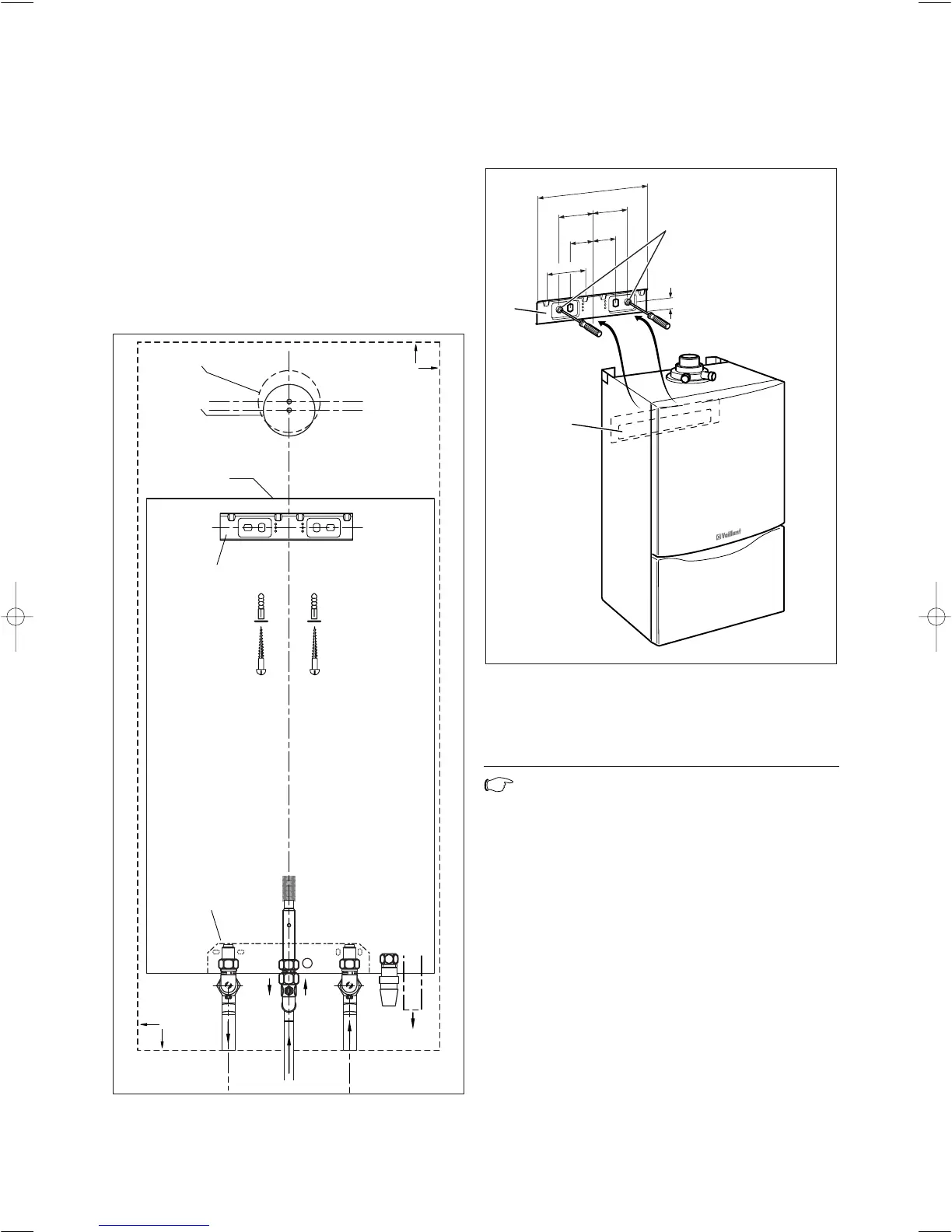

Fig. 4.2 Using Boiler template
4.4 Fitting the boiler hanging bracket
Fig. 4.3 Fitting the boiler
Fix the hanging bracket (2) to the wall using the screws
supplied. (it may be necessary to use additional or
alternative fixings to ensure adequate support).
Note:
If the boiler is to be fitted in a timber framed
building ensure that the bracket is secured to a
substantial part of the timber frame capable of
taking the weight of the boiler.
4.5 Install the flue system
Install the flue system (refer to separate air/flue duct
installation instructions)
