19Instructions for installation and servicing ecoTEC
Note
Care should be taken not to scratch the white
surface of the boiler casing.
4.2.3 Using boiler template
• Fix the paper template to the wall ensure that the
template is vertical.
The template shows:
– The position of the fixing holes for the boiler mounting
bracket.
– The position of the connections.
– The position of the flue exit hole.
• Mark the position of the hanging bracket fixing holes.
• Drill 2 holes Ø 10 mm for the hanging bracket.
Note
Use alternative fixing holes where necessary.
60/100
256723_01 01 2005
5
95
165
25
180
20
175
5
45°
A
A
A
A
A
1065
450

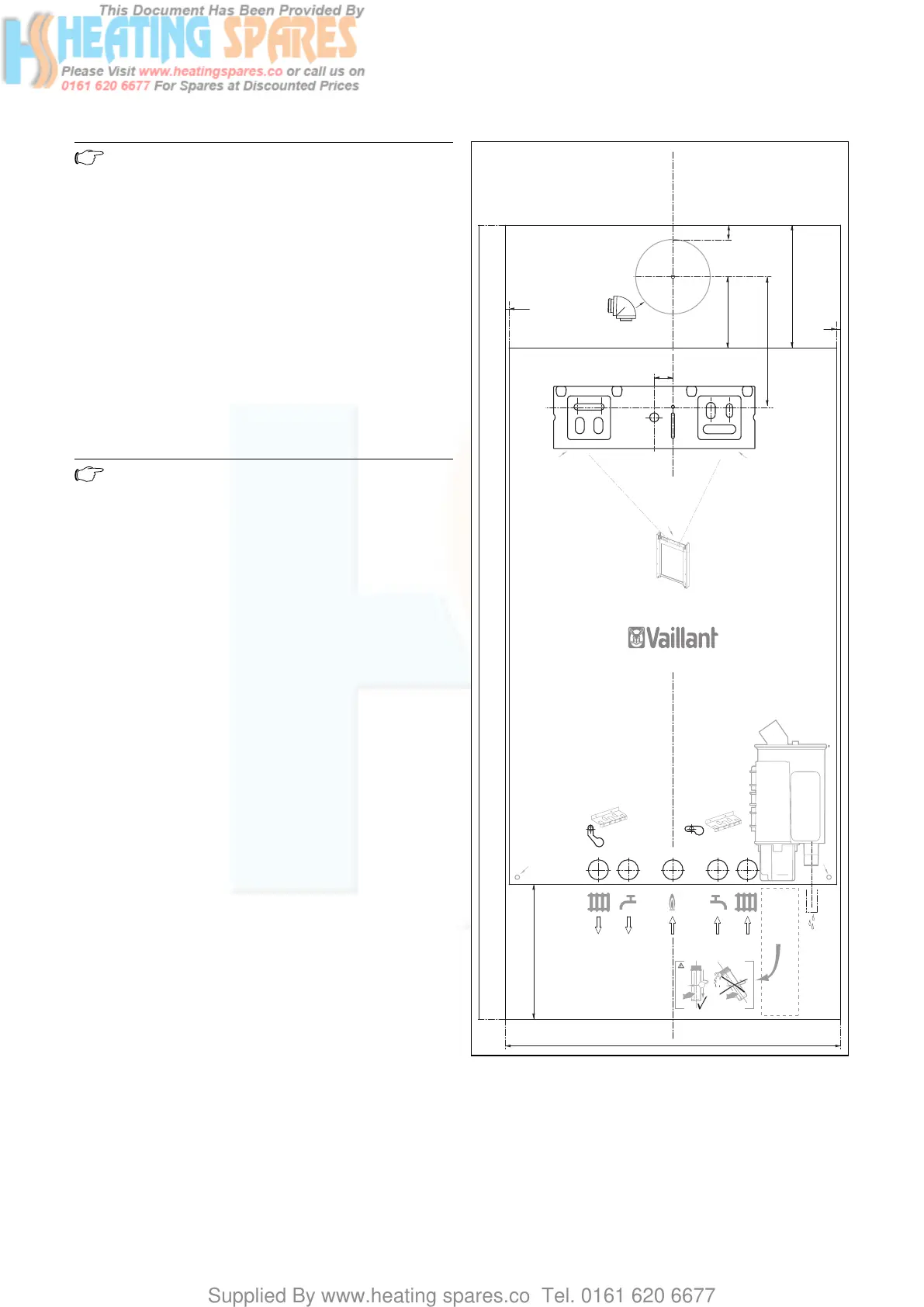

Fig. 4.2 Assembly template
Boiler installation sequence 4

Vaillant ecoTEC plus 831 Specifications

General

Model	ecoTEC plus 831
Category	Boiler
Output	31 kW
ERP Rating	A
Mounting	Wall-mounted
Boiler Type	Combi
Type	Condensing
Fuel	Natural Gas
Warranty	5 years
Efficiency	89.3%
Dimensions	720mm x 440mm x 338mm
