3 Product description
8 Operating instructions ecoTEC pure 0020258017_00

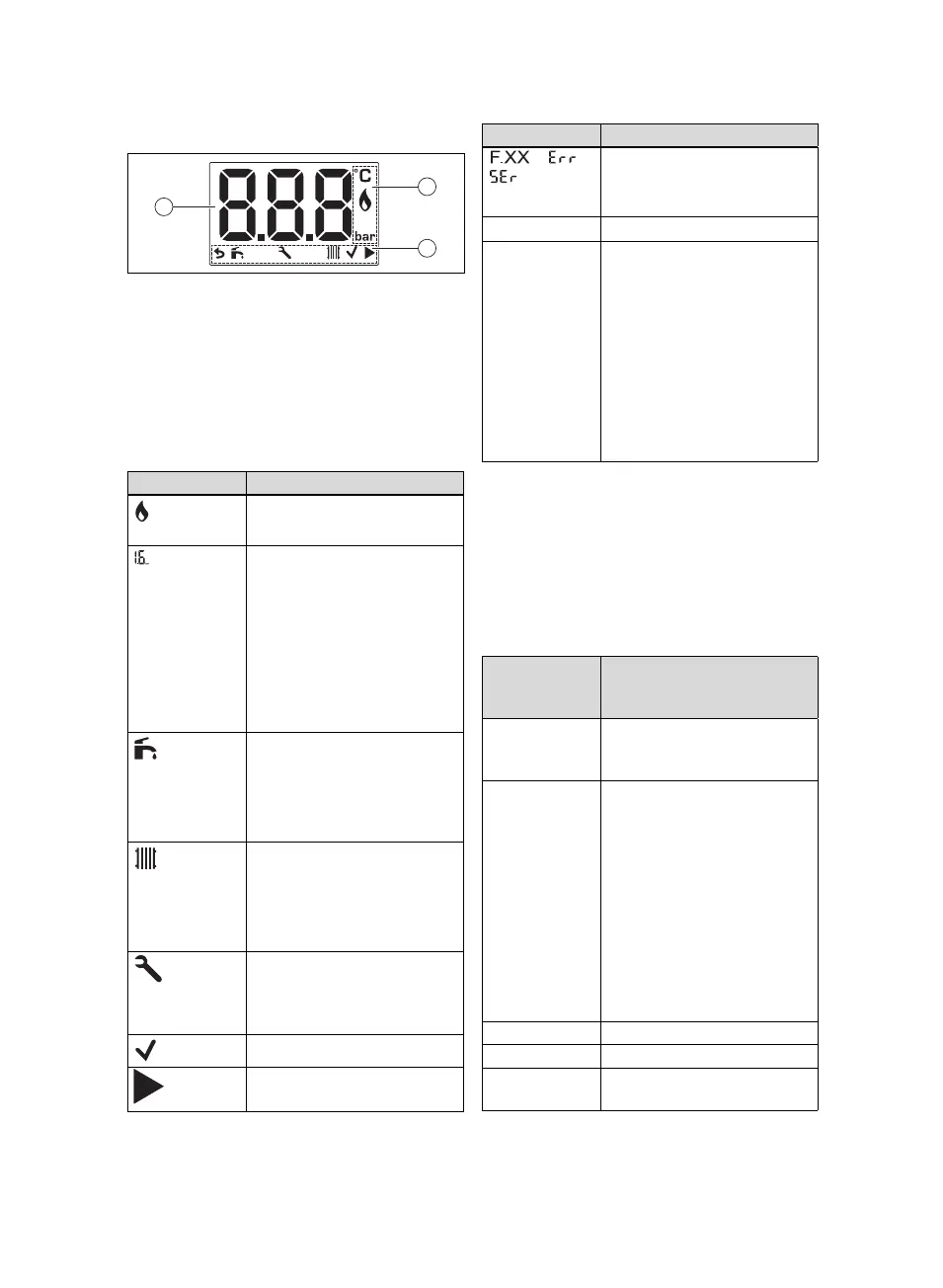

3.3 Description of the display
1
2
3
1 Operating in-
formation
2 Operating mode,
selecting and
confirming the
operating mode
3 Display showing
the current heat-
ing flow temper-
ature, the filling
pressure in the
heating install-
ation, the oper-
ating mode or a
fault code
Symbol Meaning
Burner operating correctly
– Burner on
Heating installation filling
pressure
– Permanently on: Filling
pressure in the permitted
range
– Flashing: Filling pres-
sure outside the permitted
range, purging function
activated
DHW mode
– Permanently on: Hot wa-
ter activated
– Flashing: Burner on in
draw-off mode
Heating mode
– Permanently on: Heating
mode activated
– Flashing: Burner on in
heating mode
Maintenance required
Information on maintenance
messages in the event of
faults
Setting to be confirmed
Navigating through various
menus
Symbol Meaning
/ /
Fault in the product
– Appears instead of the
basic display.
S.XX
Status code
OFF – Heating mode is switched
off (summer mode)
– Hot water handling mode
is switched off (product
with integrated hot water
generation/product with
connected domestic hot
water cylinder)
– Appears when the
product goes into standby
mode.
3.4 Information on the
identification plate
The identification plate is mounted on the
underside of the product in the factory.
The identification plate keeps record of
the country in which the product is to be
installed.
Information
on the data
plate
Meaning
Condensing
technology
Efficiency class of the boiler
in accordance with EC Dir-
ective 92/42/EEC
Serial number For quality control purposes;
3rd and 4th digits = year of
production
For quality control purposes;
5th and 6th digits = week of
production
For identification purposes;
7th to 16th digits = product
article number
For quality control purposes;
17th to 20th digits = place of
manufacture
... ecoTEC ... Product designation
Cat. Approved gas category
Type: Xx3(x) Permissible flue gas connec-
tions

Vaillant ecoTEC pure Specifications

General

Model	ecoTEC pure
Category	Heater
Efficiency Rating	A
Output Range	25-30 kW
Warranty	2 Years
Mounting	Wall-mounted
Fuel Type	Natural Gas
ErP Rating	A
Flue Options	Horizontal or Vertical
Type	Combination Boiler
