Vaillant ecoTEC VU 656/4 - Dimension drawing and connection dimensions

11Installation and maintenance instructions ecoTEC 0020029173_01
4.4 Dimension drawing and
connection dimensions
A
Ø 80/125
R 1
172
172
32
224 224
121
140
75
211
800
61
94
119
Ø 25, R1
G 1
1
/
2
Rp 1 Rp 1
G 1
1
/
2
R 3/4
480
472
6
7
5
4
3
9
11
10
8
1
2

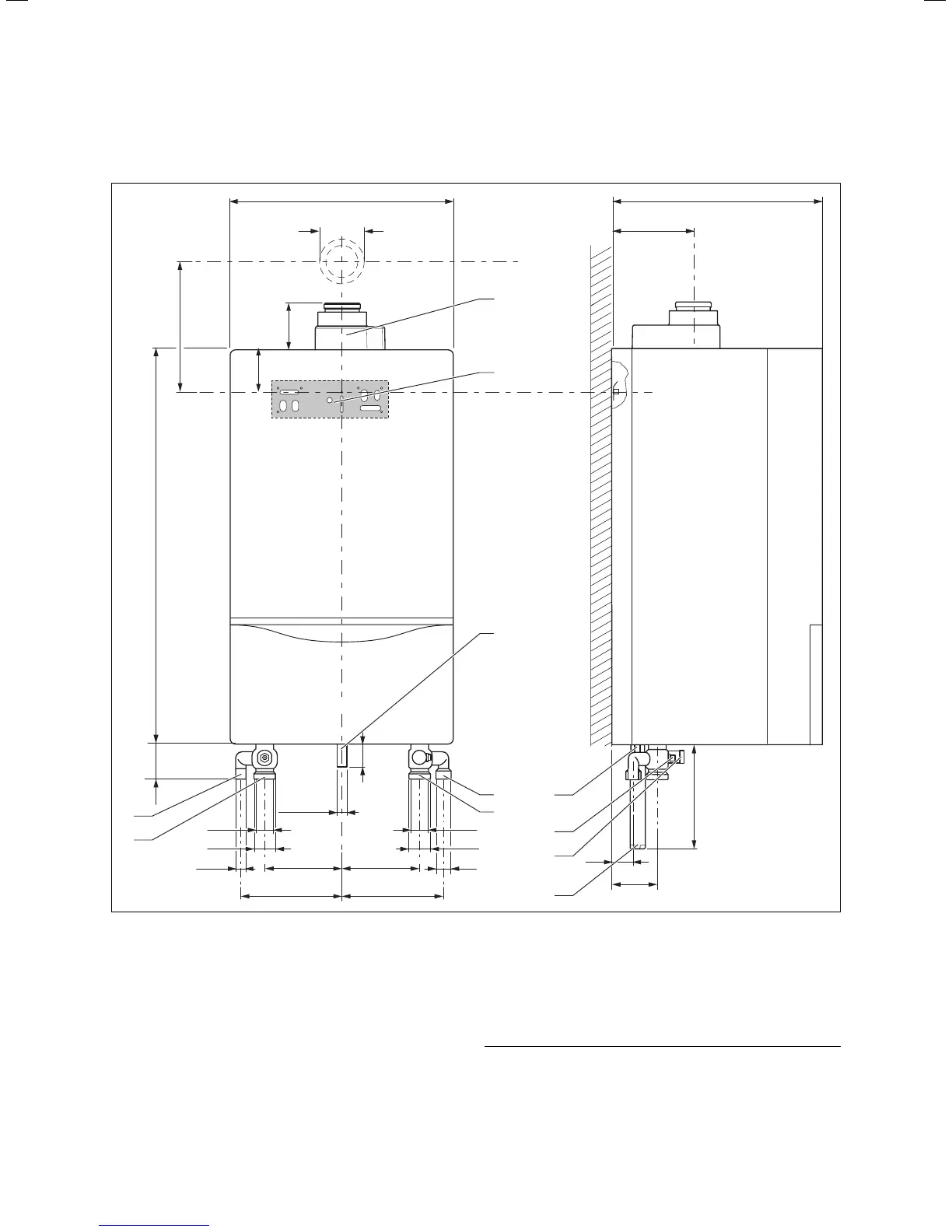

Fig. 4.2 Connection dimensions in mm
Legend:
1 Flue gas connection, 80/125 mm
diameter, dimension A (hanging bracket – centre of air/flue gas
pipe) with 87° elbow: 297 mm
2 Hanging bracket
3 Gas pipe, 25 mm diameter, gas connection R1“
4 Connection provision - expansion vessel
5 Connection for heating return
6 Connection for heating flow
7 Connection provision - expansion relief valve
8 Connection for condensate drain pipework
9 Flow line drainage opening
10 Connection provision - filling (combined filling and emptying
valve)
11 Siphon cartridge
h
Note!
When using accessories observe the minimum
separations/mounting clearances (see
Chap. 4.5).
Assembly 4
