Notes on the documentation 2
0020234040_02 eloSTOR exclusive Installation and maintenance instructions 5
2 Notes on the documentation
2.1 Observing other applicable documents
▶ You must observe all the operating and installation in-
structions included with the system components.
2.2 Storing documents
▶ Pass these instructions and all other applicable docu-
ments on to the system operator.
2.3 Validity of the instructions
These instructions apply for the following products only:
Product article number
VEH 50/8-7
0010019874
VEH 80/8-7
0010019875
VEH 100/8-7
0010019876
VEH 120/8-7
0010019877
3 Product description
3.1 Identification plate
The identification plate is located on the lower side of the
product.
The identification plate contains the following information:
Information Meaning
Serial no. Serial number
VEH XX /8-7 Type designation
l Water capacity
3/N/PE 400 V
1/N/PE 230 V
~ 50/60 Hz
Electrical connection data
MPa (bar) Max. operating pressure
IP25D Level of protection
3.2 CE label
The CE label shows that the products comply with the basic
requirements of the applicable directives as stated on the
identification plate.
The declaration of conformity can be viewed at the manufac-
turer's site.

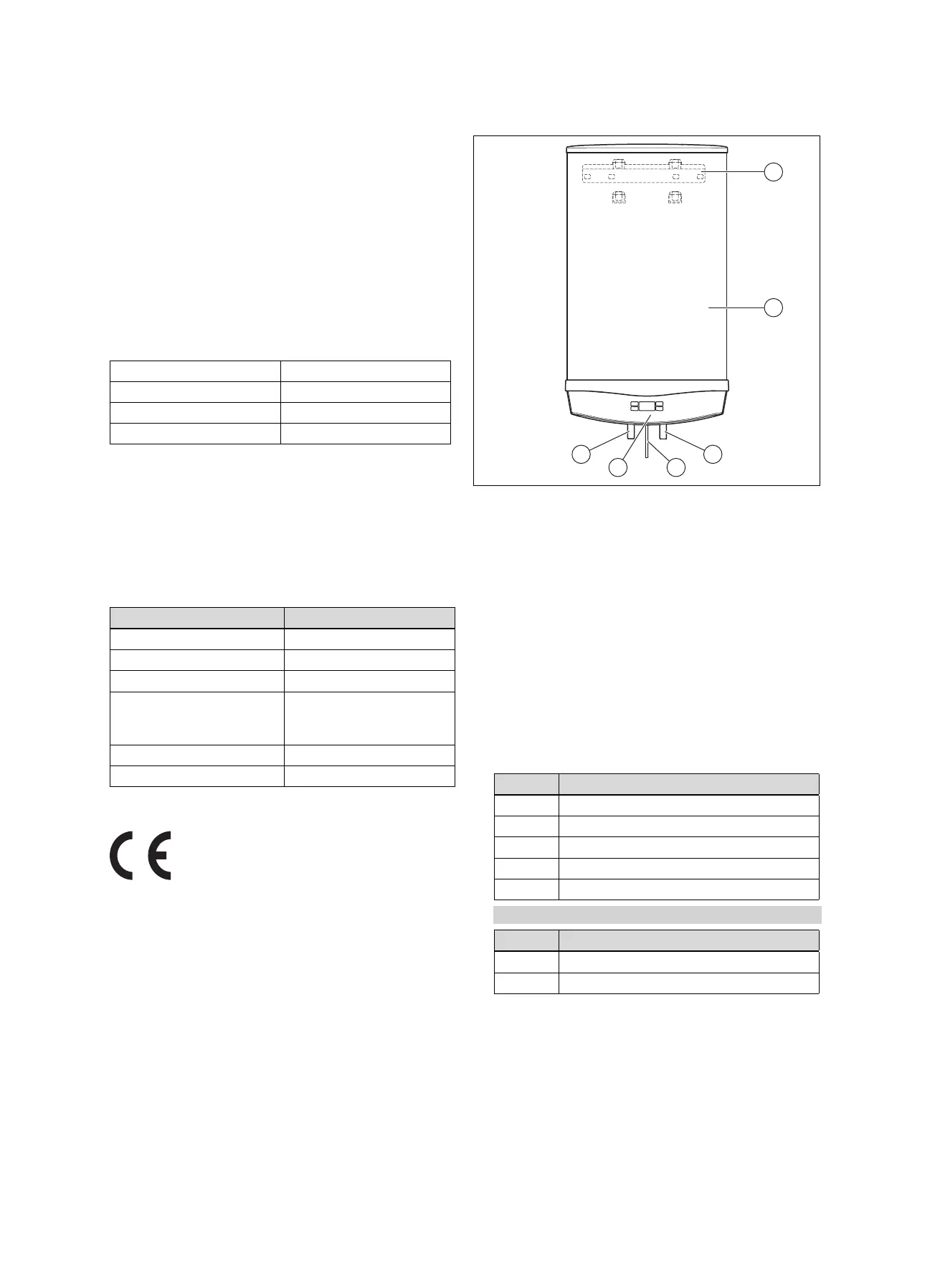

3.3 Design
1 Product holder
2 Domestic hot water
cylinder
3 Cold water connection
4 Mains connection line
5 Operator control panel
6 Hot water connection
The cylinder is equipped with external heat insulation. The
cylinder vessel is made of enamelled steel. The heating ele-
ments that transfer the heat are located inside the vessel. As
additional corrosion protection, the vessel has a magnesium
protection anode.
4 Set-up
4.1 Checking the scope of delivery
▶ Check that the scope of delivery is complete.
Quantity Component
1 Domestic hot water cylinder
1 Product holder
1 Installation template
1 Operating instructions
1 Installation and maintenance instructions
Applicability: VEH 80/8-7
Quantity Component
1 Connector 0020192421
1 Connector 0020192422
