Installation 4
0020224355_00 HOME Installation and maintenance instructions 9

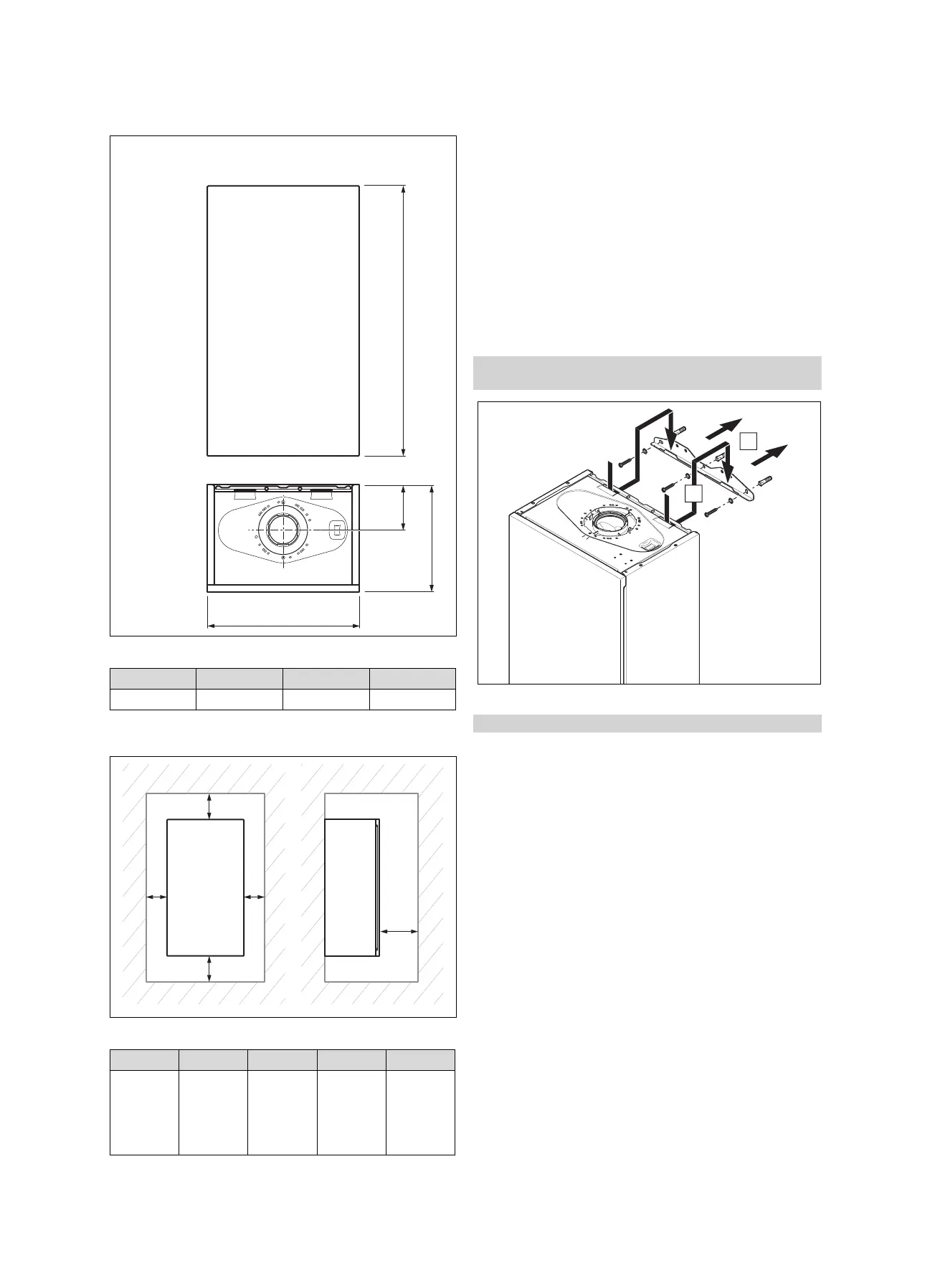

4.4 Dimensions
Dimensions
A B C D
740 mm 130 mm 300 mm 418 mm
4.5 Minimum clearances
Minimum clearances
A B C D D
≥ 0 mm ≥ 300 mm ≥ 300 mm ≥ 600 mm ≥ 5 mm
Note
Cabinet-
type cas-
ing
4.6 Clearance from combustible components
It is not necessary to maintain a clearance between the
product and components made of combustible materials.
4.7 Using the installation template
▶ Use the installation template to ascertain the locations at
which you need to drill holes and make breakthroughs.
4.8 Wall-mounting the product
1. Check whether the wall has sufficient load-bearing ca-
pacity to bear the operational weight of the product.
2. Wall-mount the product as described using the adapted
fixing material provided on-site.
Conditions: The load-bearing capacity of the wall is sufficient, The fixing
material may be used for the wall
▶ Wall-mount the product as described.
Conditions: The load-bearing capacity of the wall is not sufficient
▶ Ensure that wall-mounting apparatus on-site has a suf-
ficient load-bearing capacity. Use individual stands or
primary walling, for example.
▶ Do not wall-mount the product if you cannot provide
wall-mounting apparatus with a sufficient load-bearing
capacity.
