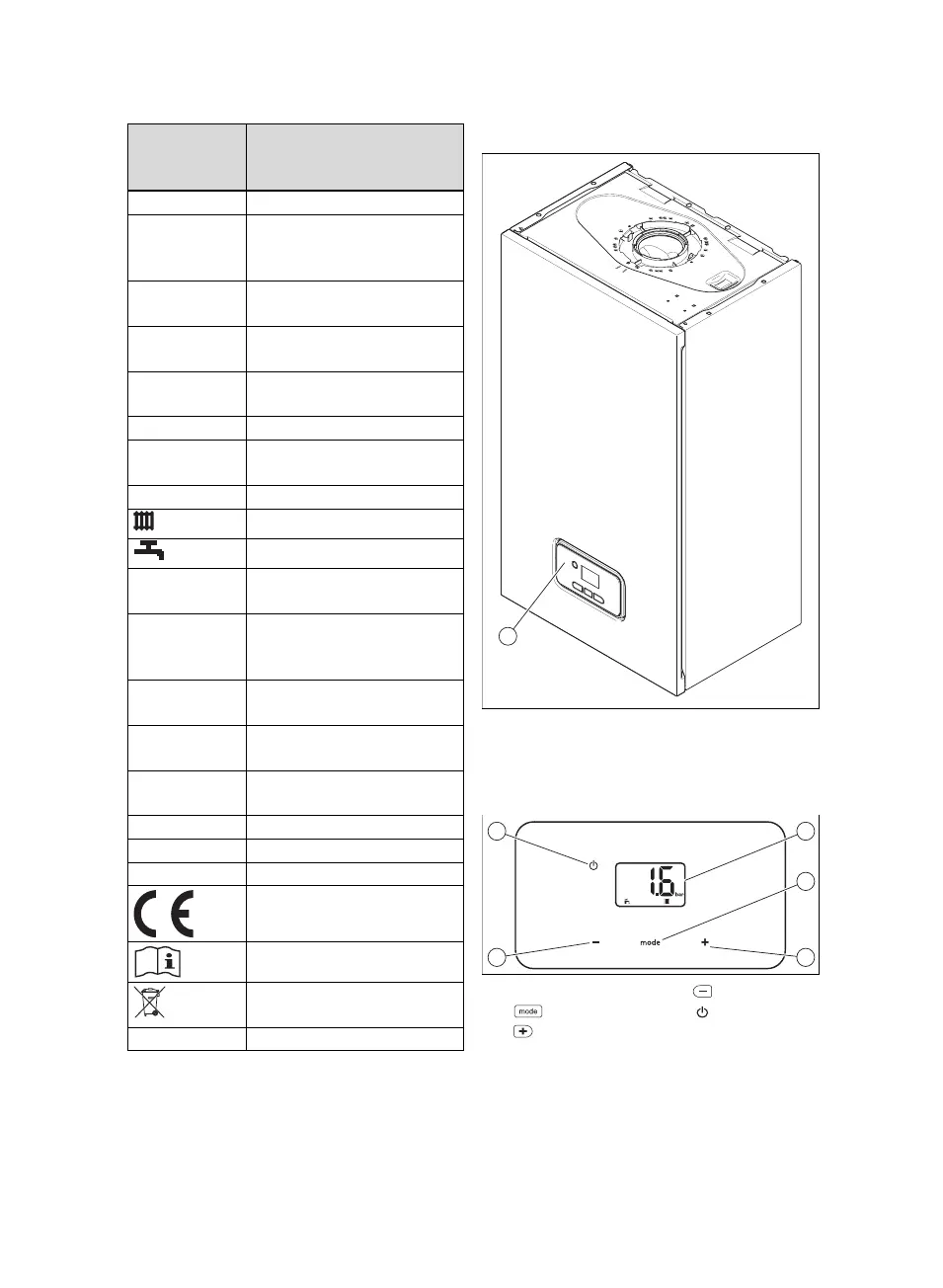

3 Product description
8 Operating instructions HOME 0020224356_00
Information
on the identi-
fication plate
Meaning
Cat. Approved gas category
Condensing
technology
Efficiency class of the boiler
in accordance with EC Dir-
ective 92/42/EEC
Type: Xx3(x) Permissible flue gas connec-
tions
PMS Maximum water pressure in
heating mode
PMW Maximum water pressure in
hot water handling mode
V/Hz Electric connection
W Max. electrical power con-
sumption
IP Level of protection
Heating mode
Hot water generation
Pn Nominal heat output range
in heating mode
Pnc Nominal heat output range
in heating mode (condensing
technology)
P Nominal heat output range
in hot water handling mode
Qn Nominal heating load range
in heating mode
Qnw Nominal heating load range
in hot water handling mode
T
max.
Max. flow temperature
NOx NOx class for the product
Code (DSN) Specific product code
→ "CE label" section
Read the instructions.
→ "Recycling and disposal"
section
GC no. Gas council number
3.4 Product design
1 Control elements
3.5 Overview of the operator
control elements
1 Display
2
button
3
button
4
button
5
button
