Vaillant turboMAX plus 2 E Series Installation Instructions

INSTALLATION OF THE HORIZONTAL AIR/FLUE DUCT (REAR OUTLET)
(TURBOMAX AND THERMOCOMPACT ONLY)
17
1
3
9
9
8
11
a
b
c
d
12
13
2
10
LAS Euro B/S 55_2.eps

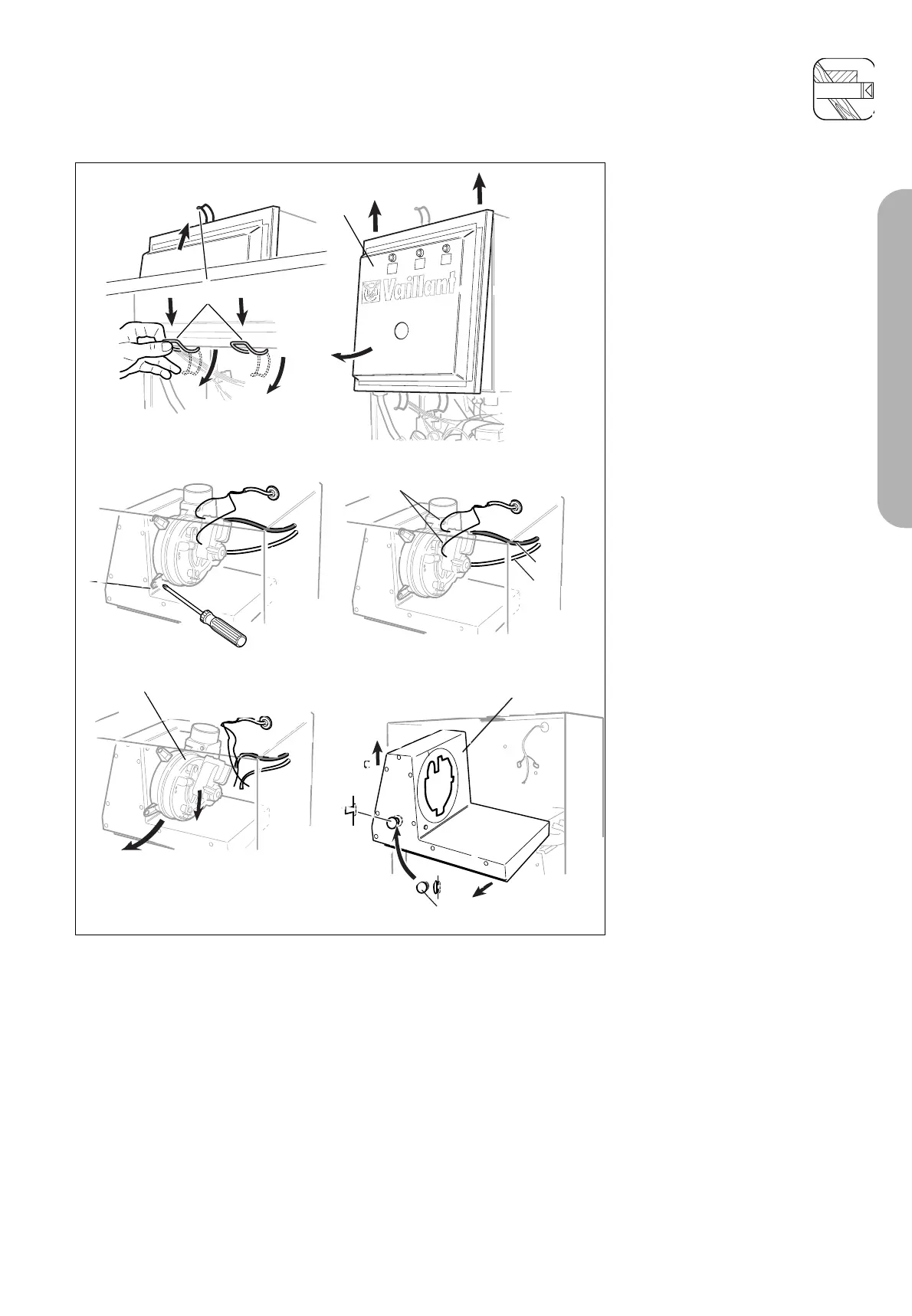

Preparation of boiler for
rear outlet air/flue duct
For thermoCOMPACT 620, 624, 628,
turboMAX pro 24, 28 and turboMAX
plus 824, 828:
• Remove boiler case as detailed in
the installation instructions
supplied with the boiler.
• Release the three clamps (1) and
remove the combustion chamber
cover (2).
• Remove the screw (3).
• Pull the two cables (8) and two
tubes (9) from the fan assembly.
Please ensure that you note the
respective connection points for
each tube.
• Remove the fan (10) from the
collector hood by pushing
downwards to unlock.
• Remove collector hood from the
boiler
• Remove the rubber funnel (12).
• Seal the hole with the rubber bung
(13) provided.
PART 1 CONCENTRIC 60/100
Fig. 3.6
