Vaillant Vantage 150 - Page 8

THERMOcompact and ecoMAX System boilers
THERMOcompact ecoMAX
615 E, 620 E, 624 E, 628 E 613/2 E, 618/2 E, 622/2 E
Vantage cylinder 120 A 1845 1910
150 2045 2110
200 2345 2410
Vantage cylinder 120 B 2200 2200
150 2400 2400
200 2700 2700
C305 240
D 145 190
3 Dimensions
Vaillant Vantage 120/150/2008

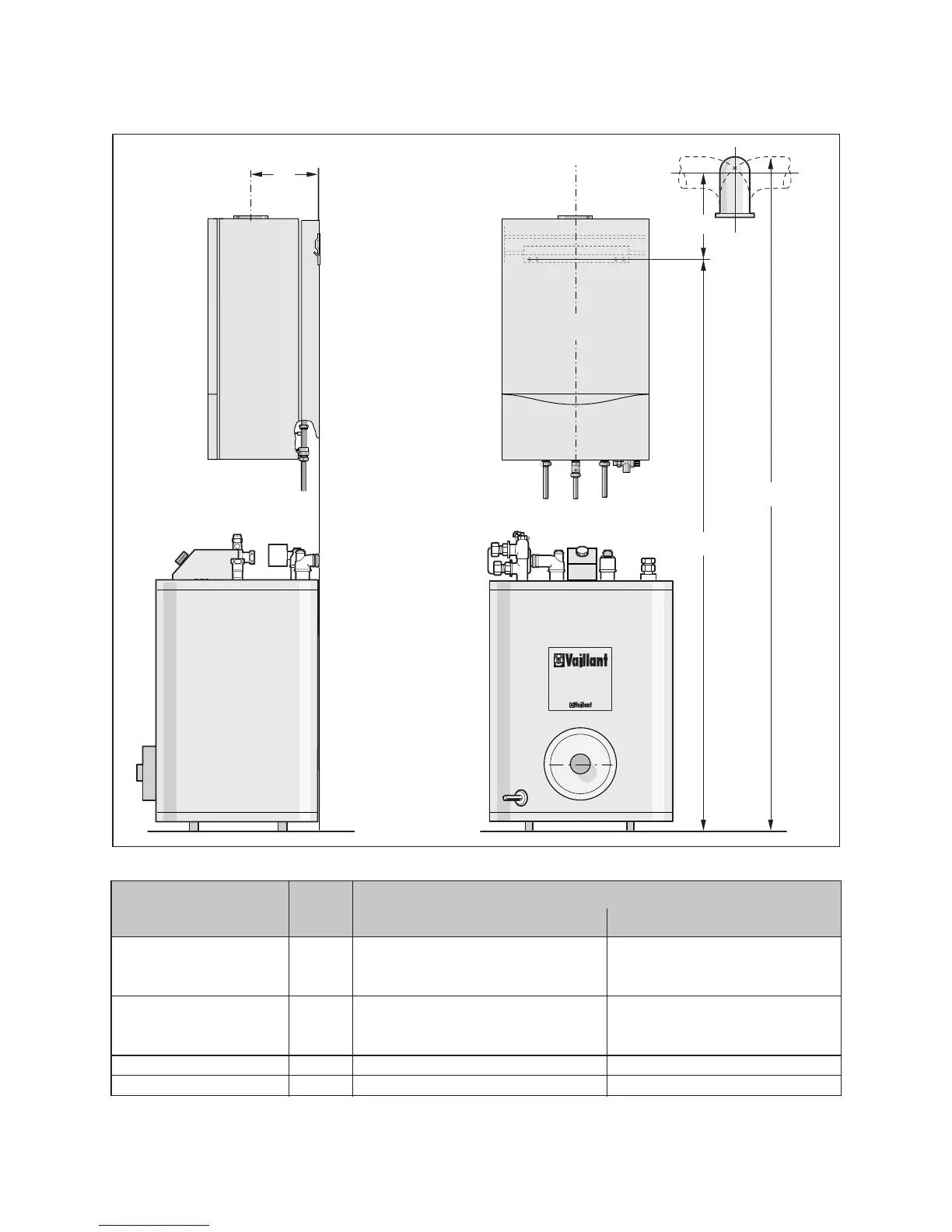

Fig. 3
C
D
B
A
VIH 378/3 (Redesign)
Boiler fitted directly above the cylinder
Table 1
