Dimensions 3
Vaillant Vantage 120/150/200 9
A Primary flow from boiler
B Heating flow
C Primary return to boiler
D Mains cold water inlet
E Domestic hot water outlet
F Temperature and pressure relief valve discharge
G Sacrificial anode
H Primary circuit air release valves
I Secondary return connection

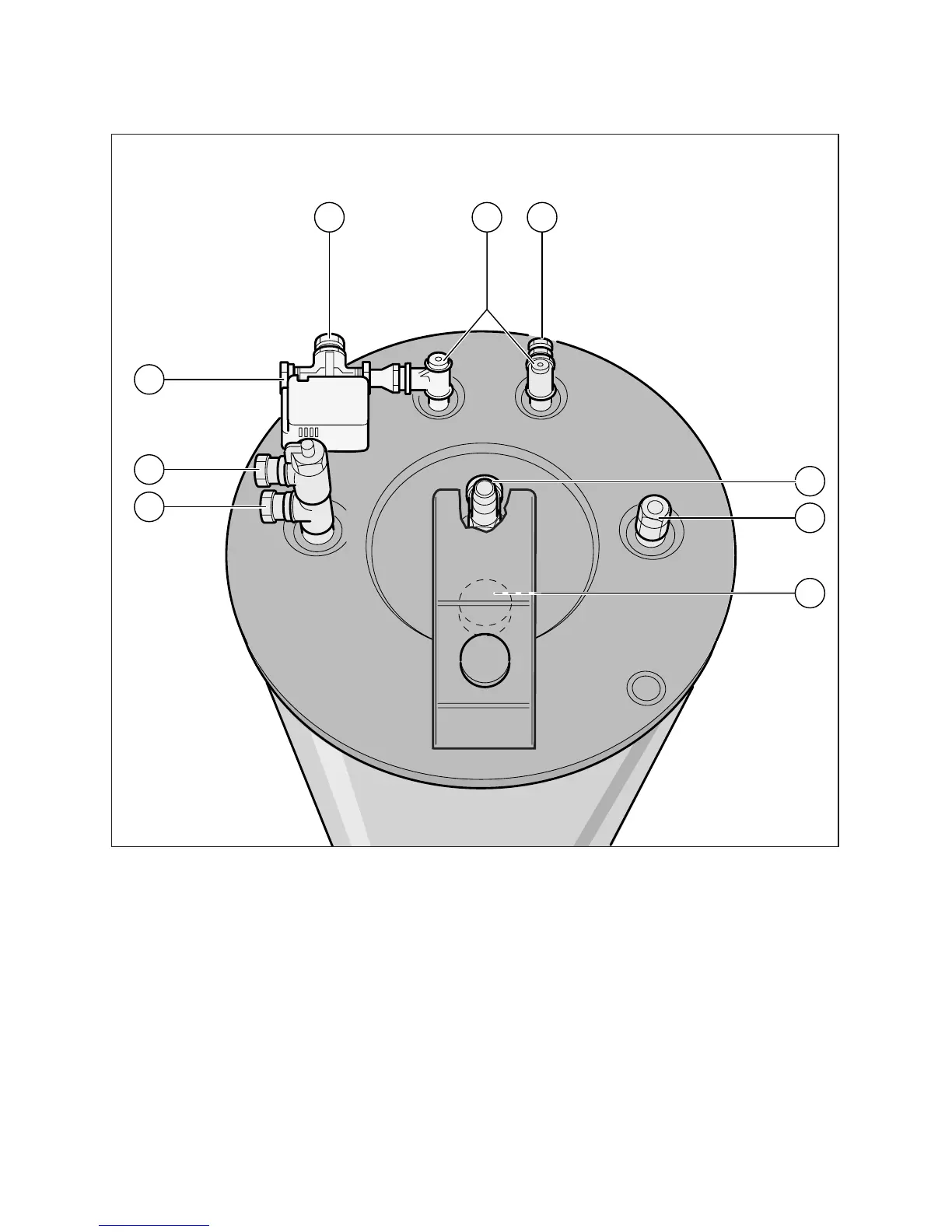

Fig. 4 Connection details
