Installation of the separate version by the competent person 6
0020266269_00 Operating and installation instructions 95

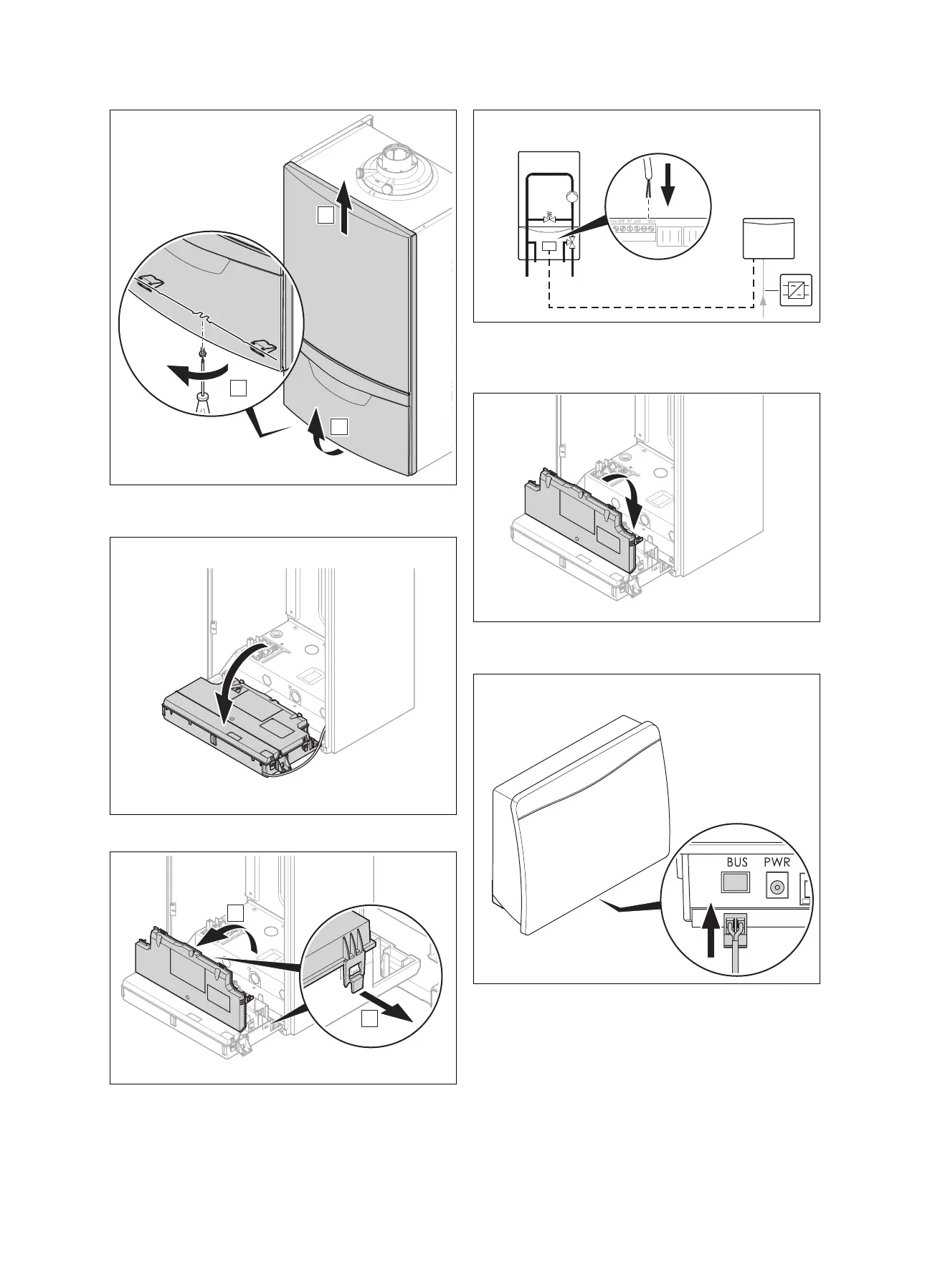

4. Remove the boiler's front casing using work steps (A),
(B) and (C).
5. Hinge the boiler's electronics box down.
6. Open the electronics box at the points provided for this
(A).
7. Hinge the electronics box's cover open (B).
Opt
X16
TL Pump
X13
B.off RT BUS
X100
X24
8. Connect the eBUS line to the boiler's electronics.
9. Use the grommets to guide the eBUS line out of the
boiler.
10. Close the electronics box's cover until you hear it click
into place.
11. Plug the eBUS cable's plug into the bush provided for it
on the communication unit.
