4 Alternative digital inputs
DI9 to DI17 are analogue inputs but configured in a way that makes it possible to use them as
digital inputs.

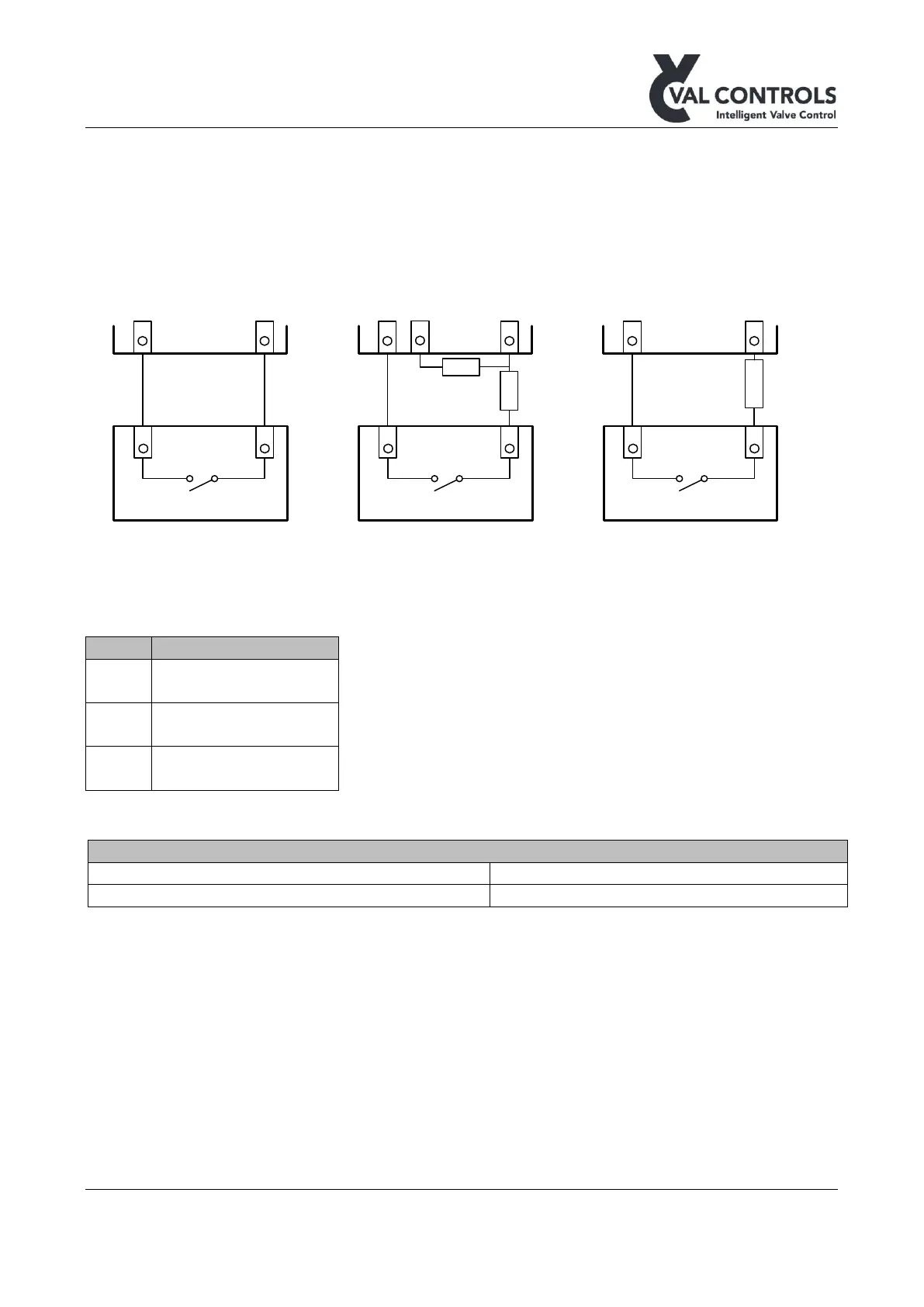

4.1 Digital input – DI9, DI10, DI11
DI9, DI10 and DI11 substitutes AI10
Switch
6
DI9
8
+ -
Switch
9
DI10
5
+ -
27kΩ ½W
6
1kΩ ½W
Switch
10
DI11
5
+ -
27kΩ ½W
The external resistor must be mounted to get the correct functionality.
4.1.1 Terminals
DI9
8 (+)
6 (-)
DI10
5 (+)
9 (-)
DI11
5 (+)
10 (-)
4.1.2 Electrical specifications
DI12
Type
Switch
Cable length
1.5 meters
