4.2 Display, keyboard, indicator, USB, and status indicators
This front is only available for type A.

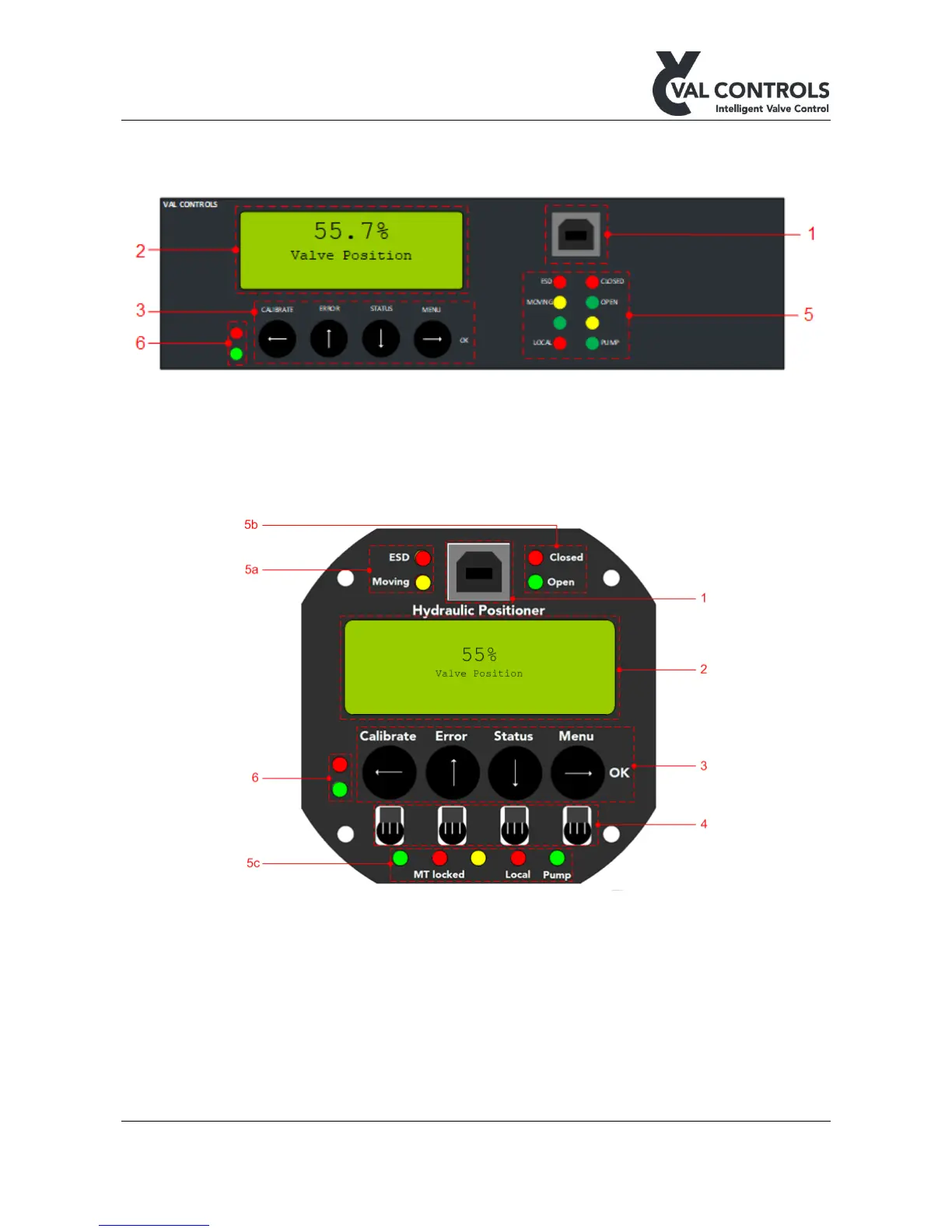

Figure 5: Type A interface
4.3 Display, keyboard, indicator, USB, MT control and status indicators
This front is only available for type BF and AF.
Figure 6: Type BF and AF interface
