Valach VM 120 B2-4T Instructions
21

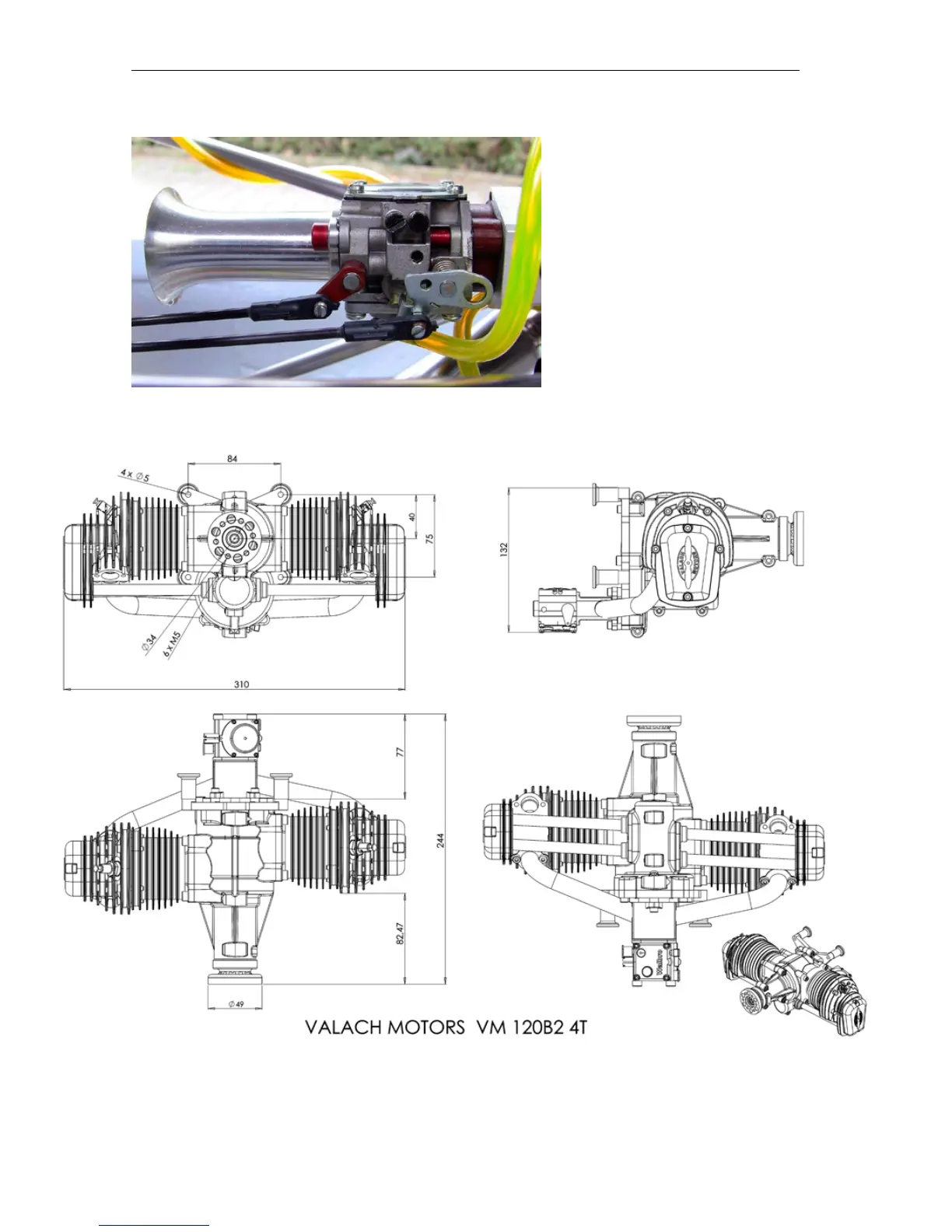

You can nd this drawing in original size (Scale 1:1) on www.toni-clark.com
Carburetor linkage
To link the throttle valve, I drilled a 2mm
hole into the existing arm and attached
a M2 ball joint. The pushrods are made
from 3mm carbon rods. The ball joints
are bored out to 3mm and glued on
with Araldite 2011.
The existing choke arm faced into the
wrong direction, so I removed it (le
down the bulged end of the rod) and
replaced it with our Novotex arm #6793.
