valent VX Series - Recommended Electrical and Gas Supply Entry Locations; Electrical and Gas Entry Locations; Optional Gas Piping Requirements; Alternate Supply Entry Locations

Valent VX Series Controller 11

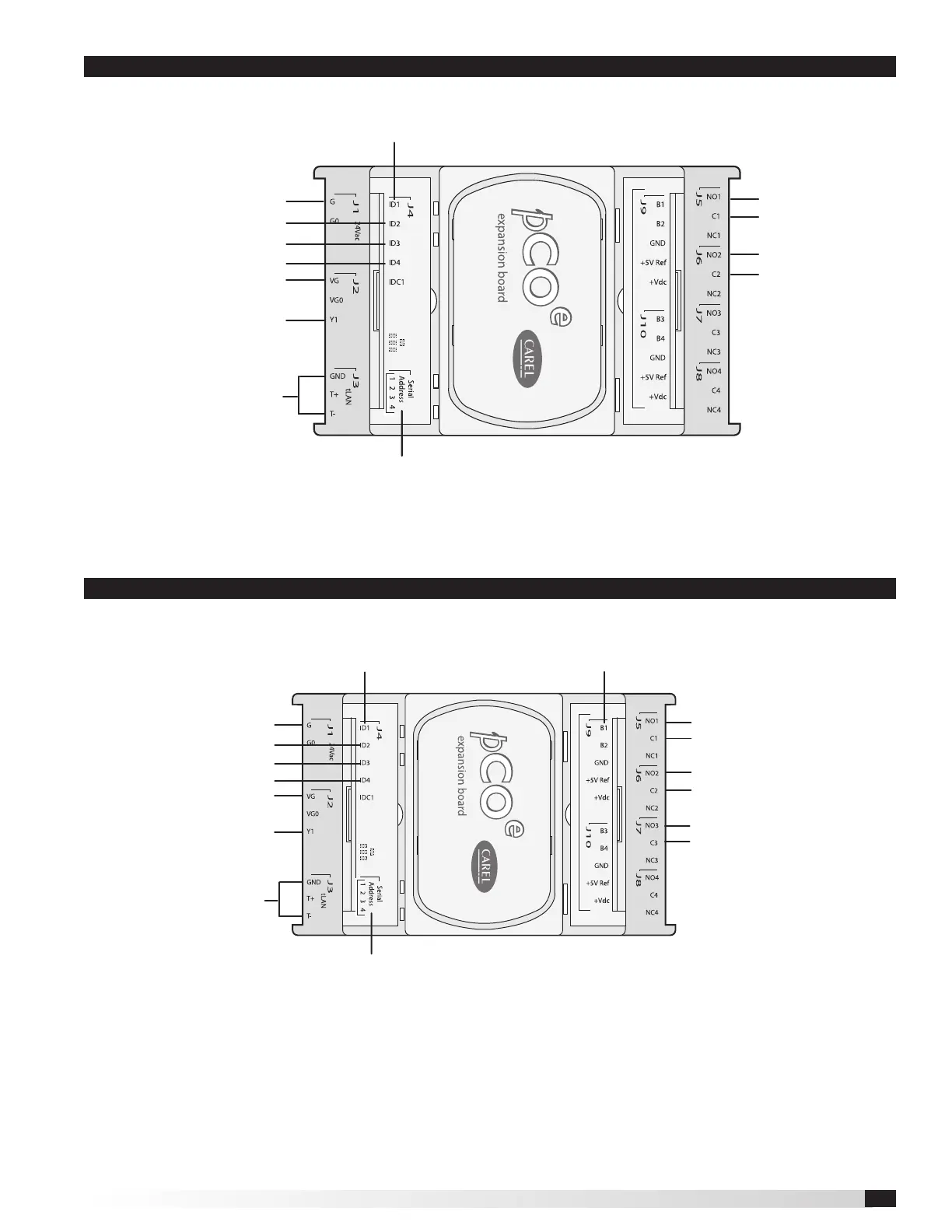

pCOe - 4:1 Furnace Overview
High Speed Pressure Switch
Main Gas Valve
Ignition Controller Alarm
Low Speed Pressure Switch
24 VAC for Analog Outputs
Modulating Gas Valve
Modbus Connection
24 VAC to Controller
Modbus Address Switches
24 VAC
High Speed Fan
24 VAC
Ignition Controller
pCOe - High Turndown Furnace
Low Speed Pressure Switch
Main Gas Valve - Small Manifold
Main Gas Valve - Large Manifold
Ignition Controller Alarm
24 VAC for Analog Outputs
Modulating Gas Valve
Modbus Connection
24 VAC to Controller
Modbus Address Switches
24 VAC
High Speed Fan
24 VAC
Ignition Controller - Small Manifold
24 VAC
Ignition Controller - Large Manifold
High Speed Pressure Switch
