Description of the appliance

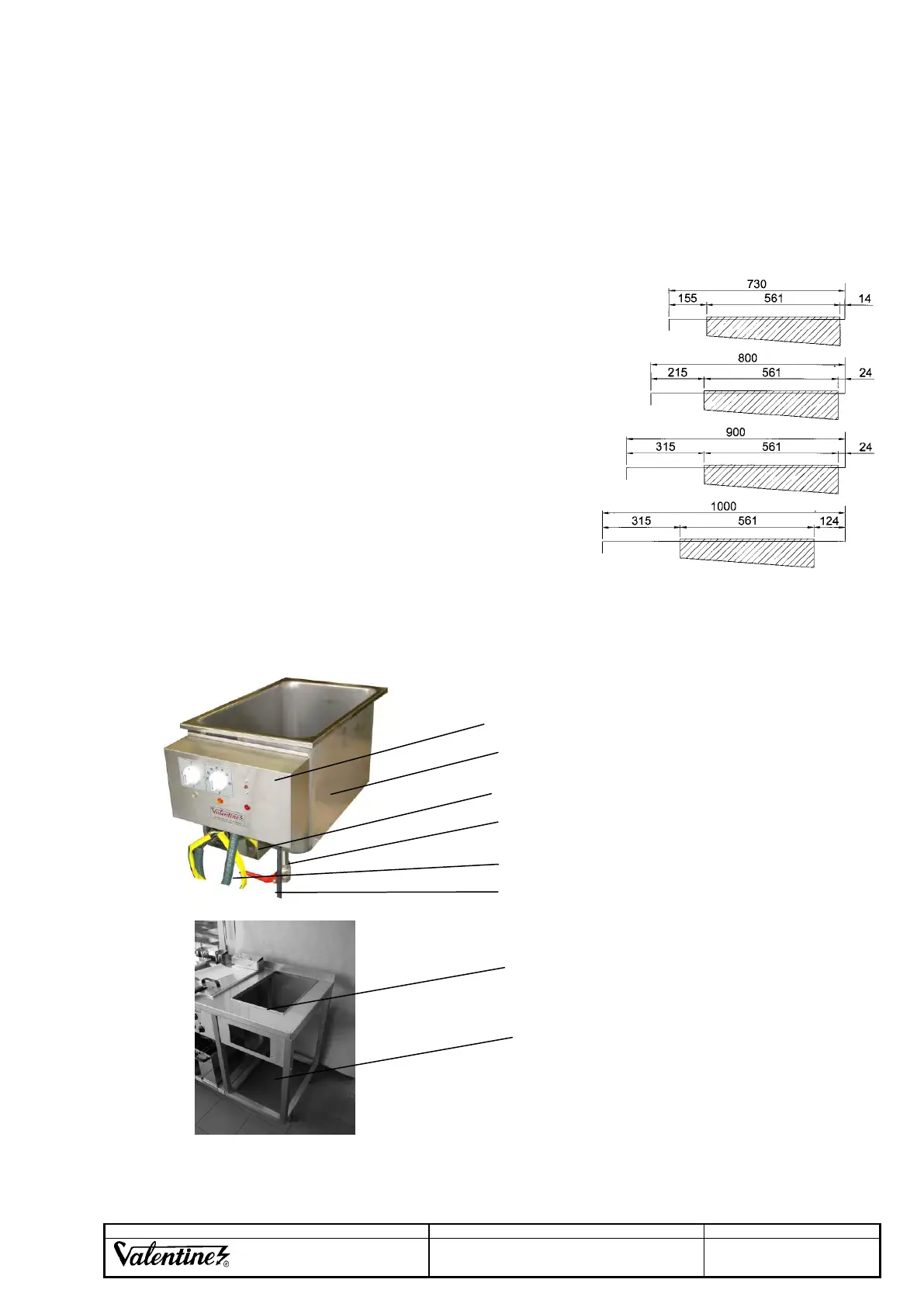

Principal dimensions
Pan
Edge of the pan folded downwards
external dimensions 349 x 561 mm.
Build in
Opening in the work plan edge upwards
external dimensions 344 x 556 mm.
Location of the working plan
In the depth direction : (see drawing )
In the front, minimum 155 mm to place the case of
command delivered.
In the back, minimum 14 mm for the cleaning.
Attention Depth minimum for the working plan 730 due to
connection box.
Depth minimum 730 ex.155 + 561 + 14 mm
Depth 800 ex.215 + 561 + 24 mm
900 ex.315 + 561 + 24 mm
1000 ex.315 + 561 + 124 mm
Fixing of the pan:
Stick with a joint (Silicon, Sicaflex) between the plate and the edge of the pan
Description of the elements
Build in material
[20] Removable control box
[10] Pan
[17] Protection block of the heating element
[7] Tap drain ¾'
[26] Sheath connection
[14] Mains cable
Layout of the working plan
● Working plan with cut out and raised edge
● Cut out panel for fixing the case
See drawing page 7
