Valeo CC 140S - Roof Condenser Components CC 160 WCT MPHE - CC 165 WCT MPHE - CC 175 WCT MPHE

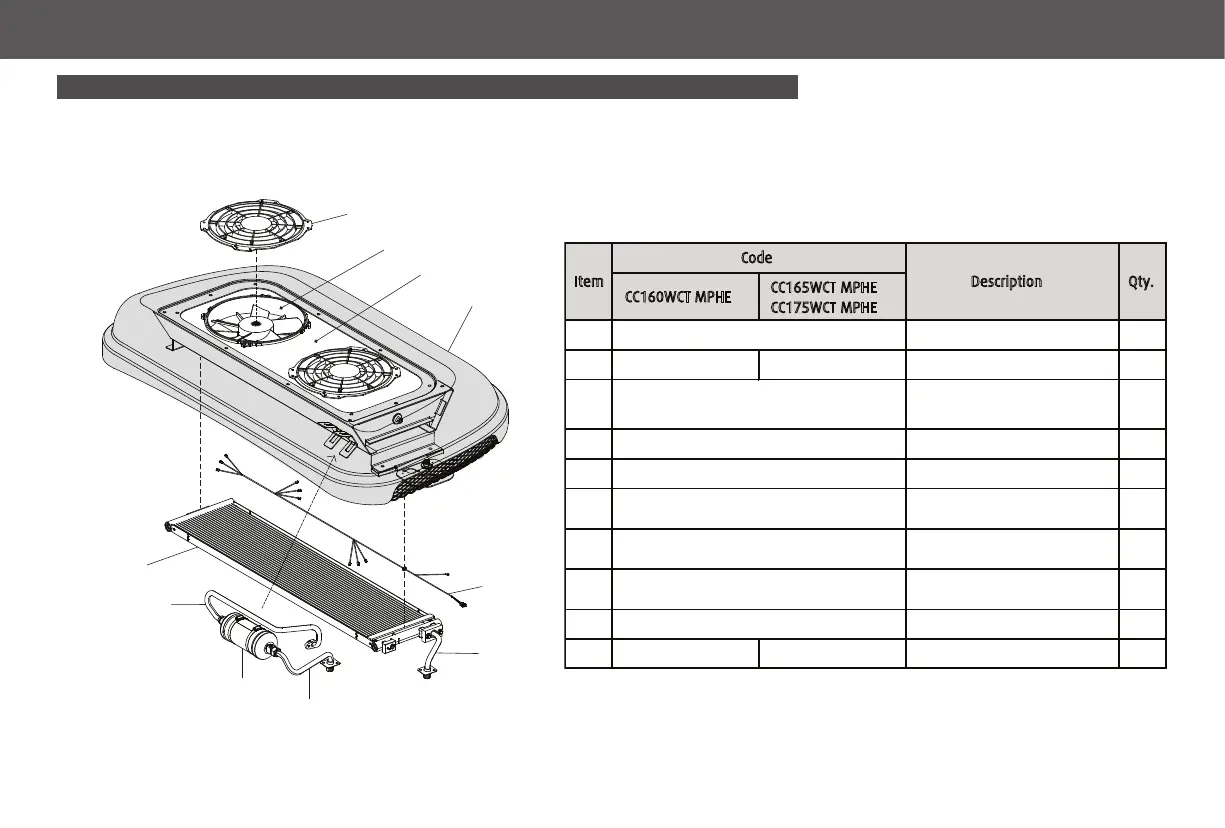

2.4- Roof condenser components CC 160WCT MPHE - CC 165WCT MPHE - CC 175WCT MPHE
1
2
3
4
6
CC 140S - CC 150S - CC 160S - CC 160WCT MPHE - CC 165W - CC 165WCT MPHE - CC 175W - CC 175WCT MPHE
8
9
10
7
5
NOTE: visit www.reparts.com.br to consult the complet parts catalog.
EQUIPMENT DESCRIPTION
CC160WCT MPHE
CC165WCT MPHE
CC175WCT MPHE
1 RT Condenser cover 1
2 046-00020-003 046-00020-002 RT Condenser structure 1
3
Dryer filter / Liquid sight /
Liquid Tank
1
4 24V 12" Condenser fan ( * )
5 Condenser fan protection grid ( * )
6
Pipe Coil Set X Condenser
liquid tank
1
7 Condenser liquid Line pipe set 1
8 Condenser discharge pipe set 1
9 Condenser coil 1
10 016-00425-002 016-00425-003 Condenser electric harness 1
Item
Code
034-00111-000
031-00473-000
031-00470-001
031-00462-001
006-00192-000
(*) Drawing representative of models CC165WCT MPHE and CC175WCT MPHE with two fans, model
CC160WCT MPHE has only one fan.
Description Qty.
034-00379-001
038-00034-000
021-00015-000
20
