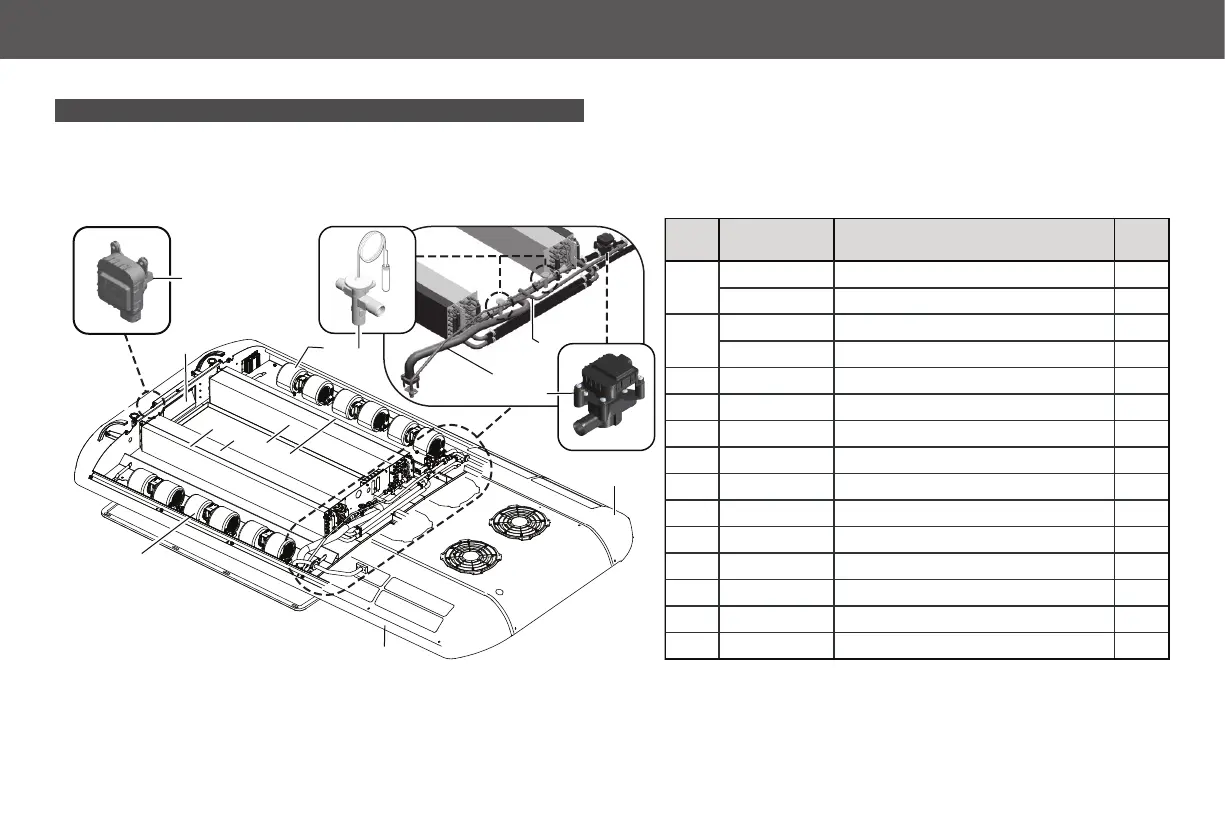

2.1- Evaporator Components
7
7
4
3
6
11
12
13
8
5
10
9
2
1
NOTE: visit www.reparts.com.br to consult the complet parts catalog.
Item Code Description Qty.
006-00134-005 Left Evaporator Coil - CC355 1
006-00138-001 Left Evaporator Coil - CC305 / 335 1
006-00135-005 Right Evaporator Coil - CC355 1
006-00139-001 Right Evaporator Coil - CC305 / 335 1
3 006-00152-001 Right Heating Coil 1
4 006-00153-001 Left Heating Coil 1
5 012-00055-000 Hot Water Valve - Optional 1
6 012-00081-000 Expansion Valve 2
7 021-00014-000 Radial Fan 24V - with Carbon Brush Variable
8 022-00010-000 24V Air Renewal Motor - Optional 1
9 031-00573-000 Liquid Line Tube Set with Defroster 1
10 031-00590-000 Evaporator Suction Tube Set 1
11 034-00367-001 Left Condenser / Evaporator Cover 1
12 034-00368-001 Right Condenser / Evaporator Cover 1
13 041-01445-000 Air Renewal Set - Optional 1
1
2
