2.10- SCB2000 Controller Operation
SCB2000 Controller
2.11- Description of the Control Panel
1
2
7
8
3
4 5 6

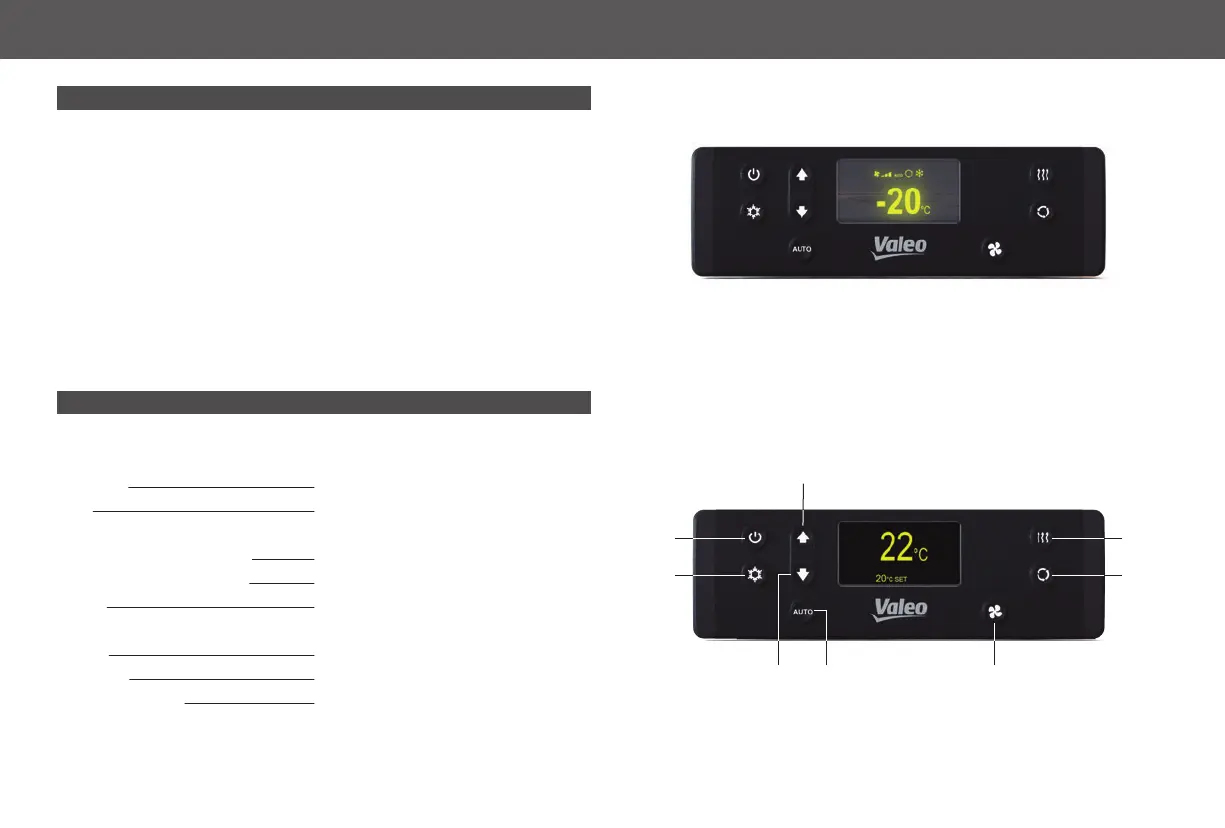

This product aims to control the temperature of SD (Single Deck) vehicles. The
intelligence of the system and charge activation is done by Smart ECU in
conjunction with the relay board, while the panel is used for user interface only.
Below is a description of each of the keys with their respective functions.
1- ON/OFF Turns the product ON / OFF.
2- AC Indicates that the compressor is ready for
operation.
3- Increment of the set-point Defines the desired temperature in the room.
4- Decrease of the set-point Defines the desired temperature in the room.
5- Auto Activates the automatic fan speed and air
renewal mode.
6- VENT Manual speed control of the evaporator fans.
7- Re-Heat Turns on / off the passenger window defroster.
8- Air recirculation Turns on / off air recirculation on the bus.
AIR CONDITIONING OPERATION CC 646 MS - CC 676 MS
