SMART HATCH
13
3.1.9. Connect the switch wire to
the vehicle wiring harness.
3.1.10. Insert trim ring into hatch opening
with arrow sticker facing towards the front of
the bus. Make sure that the switch wire is not
trapped between the trim ring and the roof.
NOTES
The interior trim ring was designed to work with roof thick-
nesses between 1.4 inch to 2.7 inches. Heights above or
below this range will result in gapping or interference with
the frame Modifications for fitment are the responsibility of
the installer.

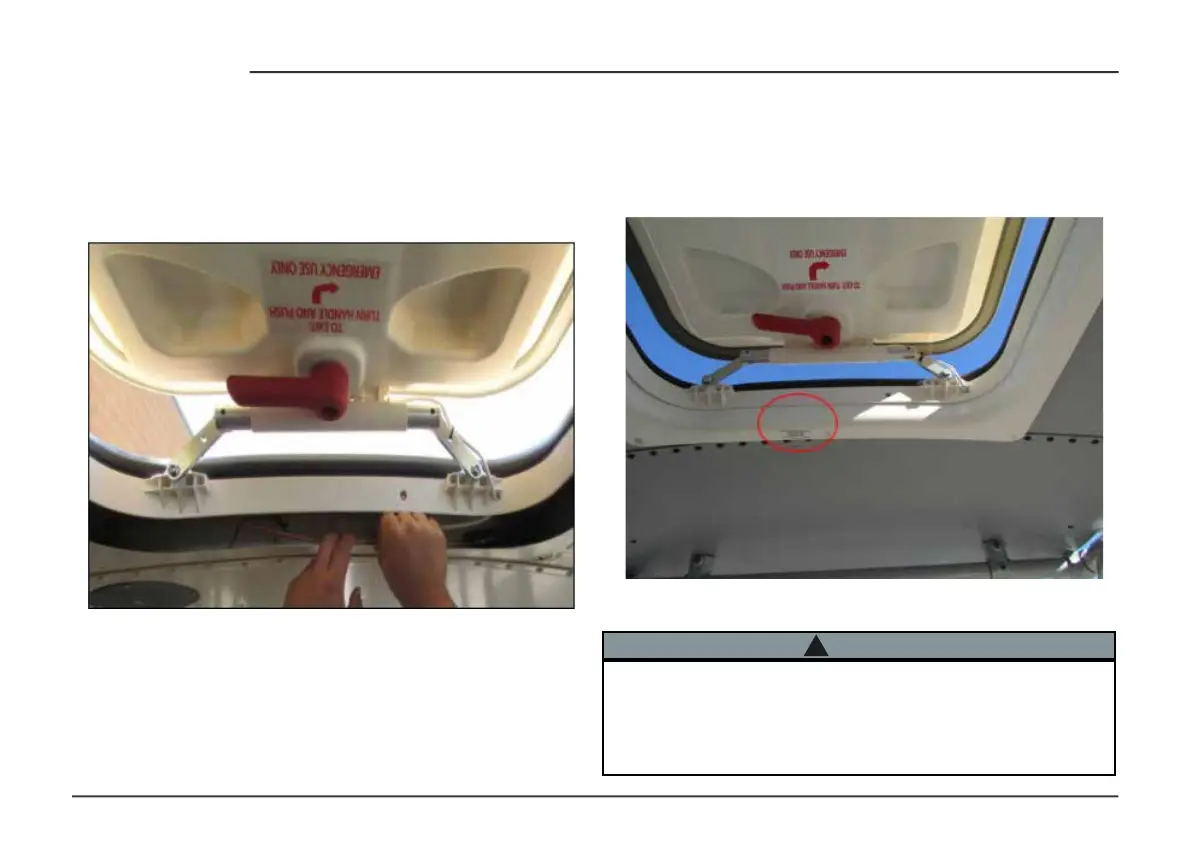

(Photo 10: SMART Hatch Assembly)
(Photo 11: SMART Hatch Assembly)
