Overtightening of the fasteners will result in damage to the
product. Use torque control device or tool to ensure proper
securement force is applied.
CAUTION
3.1.8. Using a #2 Phillips driver, tighten all
(12) clamp screws. Make certain that the
clamps remain in position, pointing out from
the frame. Tighten the clamp screws to a
maximum torque of 3.5 N-m (31 in. – lbs.)
SMART HATCH

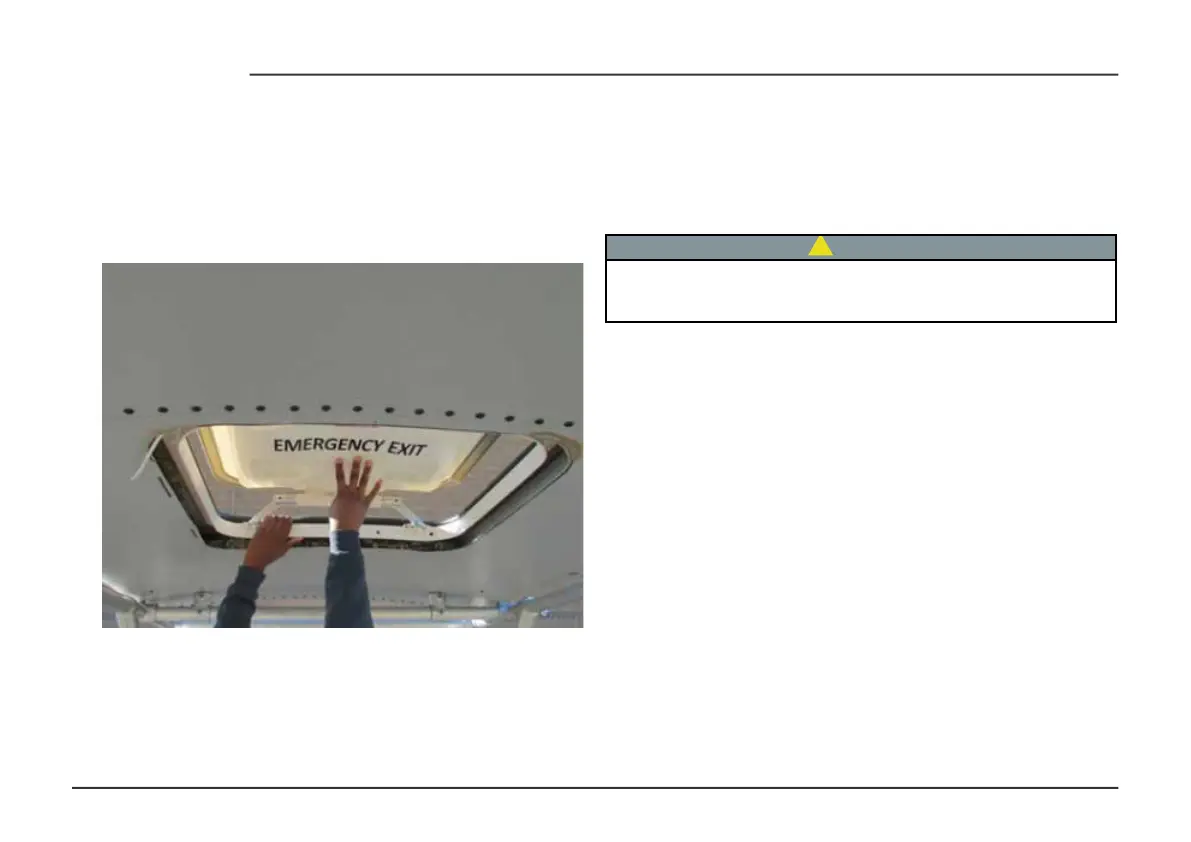

(Photo 9: SMART Hatch Assembly)
