Installation

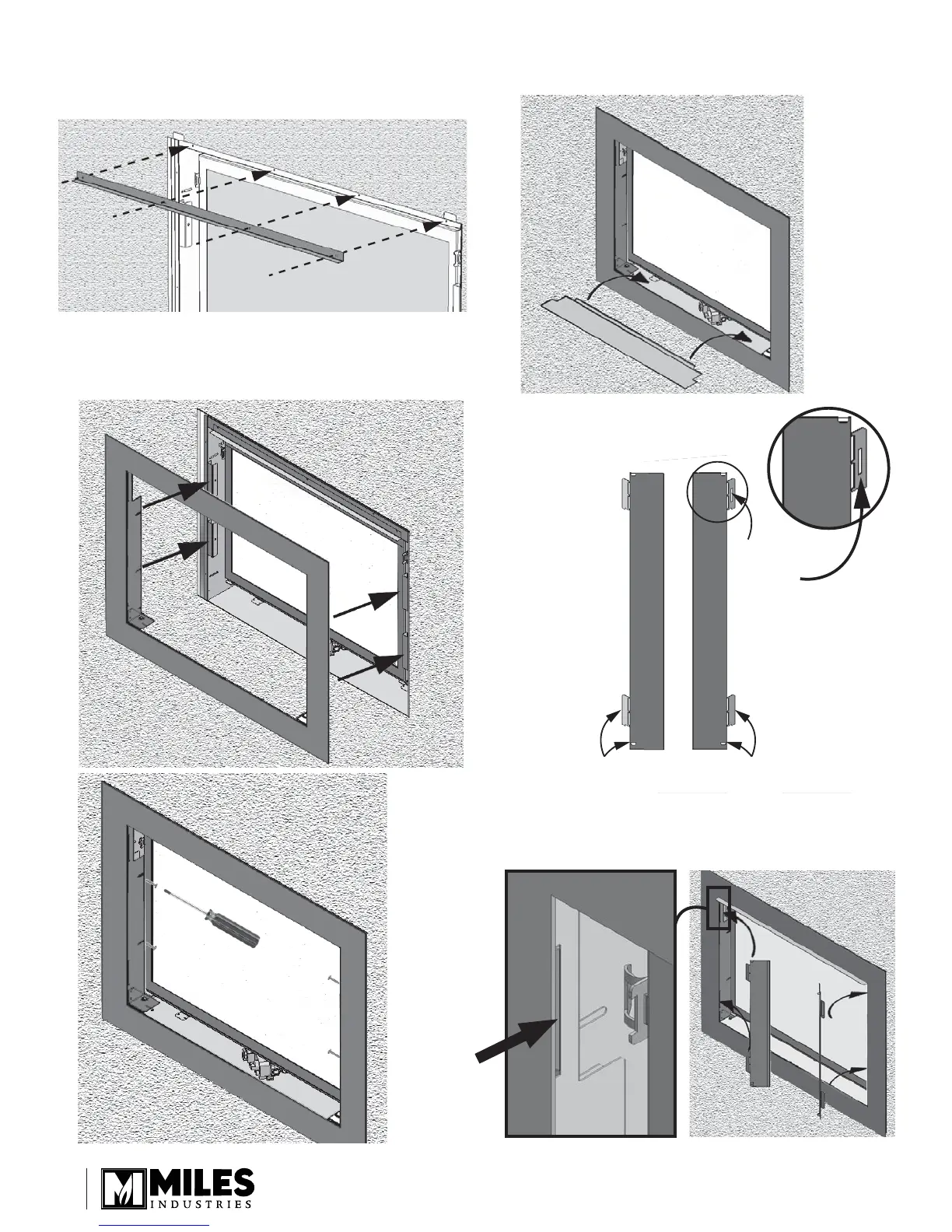

1. On completion of fi replace installation, screw the
liner bracket to top face of fi rebox with 4 screws.
2. Carefully position and secure steel front panel with
4 low profi le screws to 4 fi rebox mounting brackets;
before tightening, hold panel up against wall fi nish
then tighten.
3. Place plinth onto supports and push into place with
inside edge tucked behind front trim.
4. Identify left hand door from
right using diagram below.
5. Position LH door to left side of front panel, identify
door slots top and bottom just behind front panel
and slide door locator in position.
6. Repeat for other door.
LH Door RH Door
nger grip inboard,
with locator on right
RH door has a
slot in upper
locator tab
nger grip inboard,
with locator on left
