Valor 535XAP - Page 7

7
Mantle depth “A” 1”
(25mm)
2”
(51mm)
3”
(76mm)
4”-5”
(102mm-
127mm))
6”
(152mm)
7”
(178mm)
8”–12”
(203mm-305mm)
max.
Mantle clearance
“B”
7”
(178mm)
8”
(203mm)
9”
(229mm)
10”
(254mm)
11”
(279mm)
12”
(305mm)
14”
(356mm)

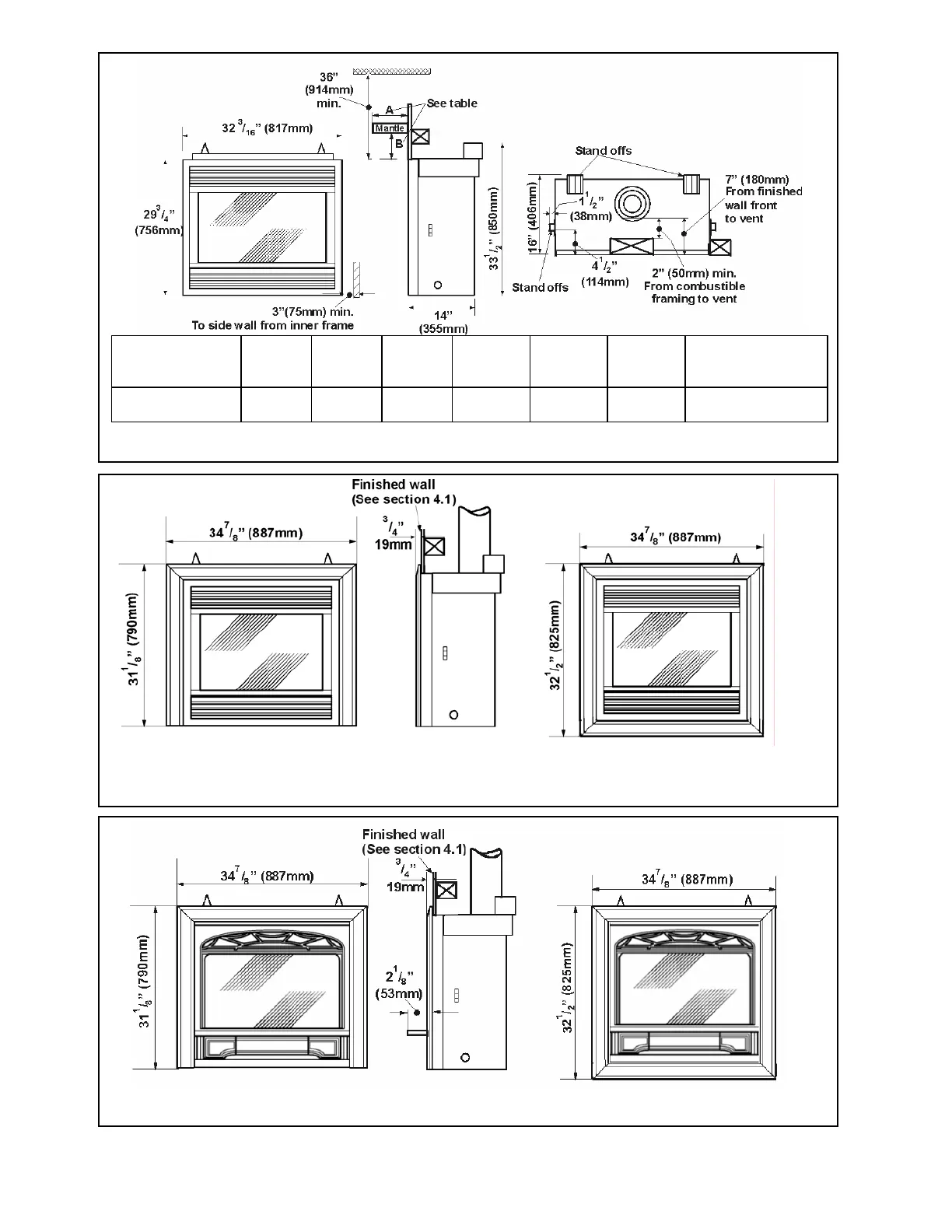

Figure 1 Major dimensions & clearances without optional trims (Shown with #601SFB Front)
3 sided trims 4 sided trims
Figure 2 #601SFB Front with optional trims
3 sided trims 4 sided trims
Fi
g
ure 3 #602CFB Front with o
p
tional trims
