USERS INSTRUCTIONS
I
Install the 11 loose coals as follows. There
are 2 small coals, 8 medium size coals
and 1 large coal. The large coal has an
arrow embossed in it. Place all the loose
coals so that they are firmly seated in the
valleys in the coal base and front coal.
~
'7'
"-' , \ .
'::J .:'"i '...-': ~:\.,
I,'; pl!!
'\\\'\tJL~ ~W~: ~j!
\\' ~"""I
I ,I \ 1
1
11 .~', ,\":?...! :. / ,~
\\ \ ':\' 1.,·:' :':Il:~'" ....' . \~':';
1,t I.:\. \' ....: r 'J
'" ,I w ","'.', ,Ill
\,\\~:::,~,;';'\';~'-::~It
\~\
' J '
'.
',LA" -~~ -' d".
1\ _ ---.....;,: ....
1'1' . ~'
\1) '\:, ,-"... '.'.. ,J,;
'I \ \ \' -.' \.'
1\ \ I' ,''.;''\;,/ I "JI,
1\1\ \ \I v \'. ~ <~ '-;"'~({j!J
:\\ \ \ I)! ,I ,:;; ·(n~· .:.A i
~'\~~_i __ ~:_~~>;.~

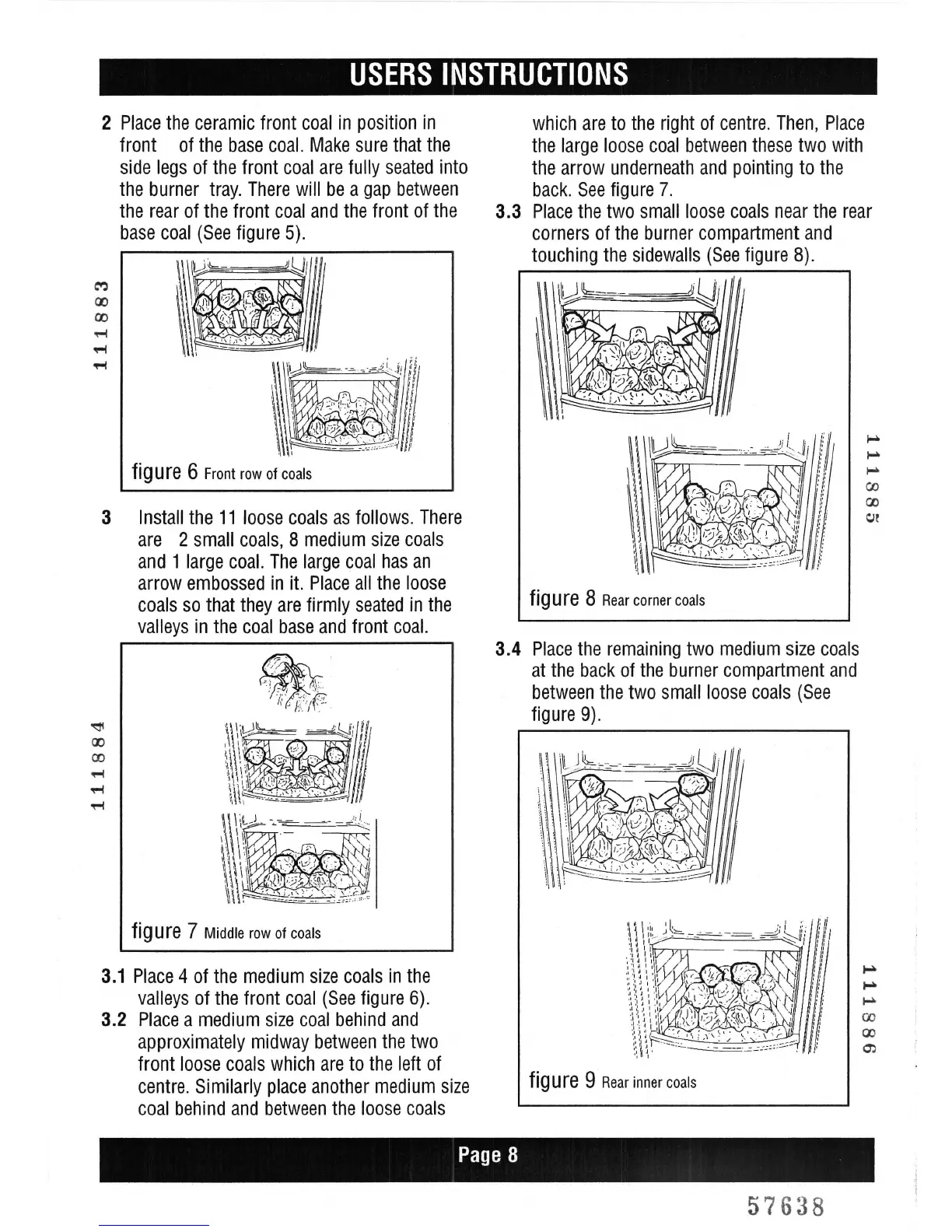

figure 7 Middle row of coals
3.1 Place 4 of the medium size coals in the
valleys of the front coal (See figure 6).
3.2 Place a medium size coal behind and
approximately midway between the two
front loose coals which are to the left of
centre. Similarly place another medium size
coal behind and between the loose coals
which are to the right of centre. Then, Place
the large loose coal between these two with
the arrow underneath and pointing to the
back. See figure 7.
3.3 Place the two small loose coals near the rear
corners of the burner compartment and
touching the sidewalls (See figure 8).
~WI
figure 8 Rear corner coals
3.4 Place the remaining two medium size coals
at the back of the burner compartment and
between the two small loose coals (See
figure 9).
figure 9 Rear inner coals
